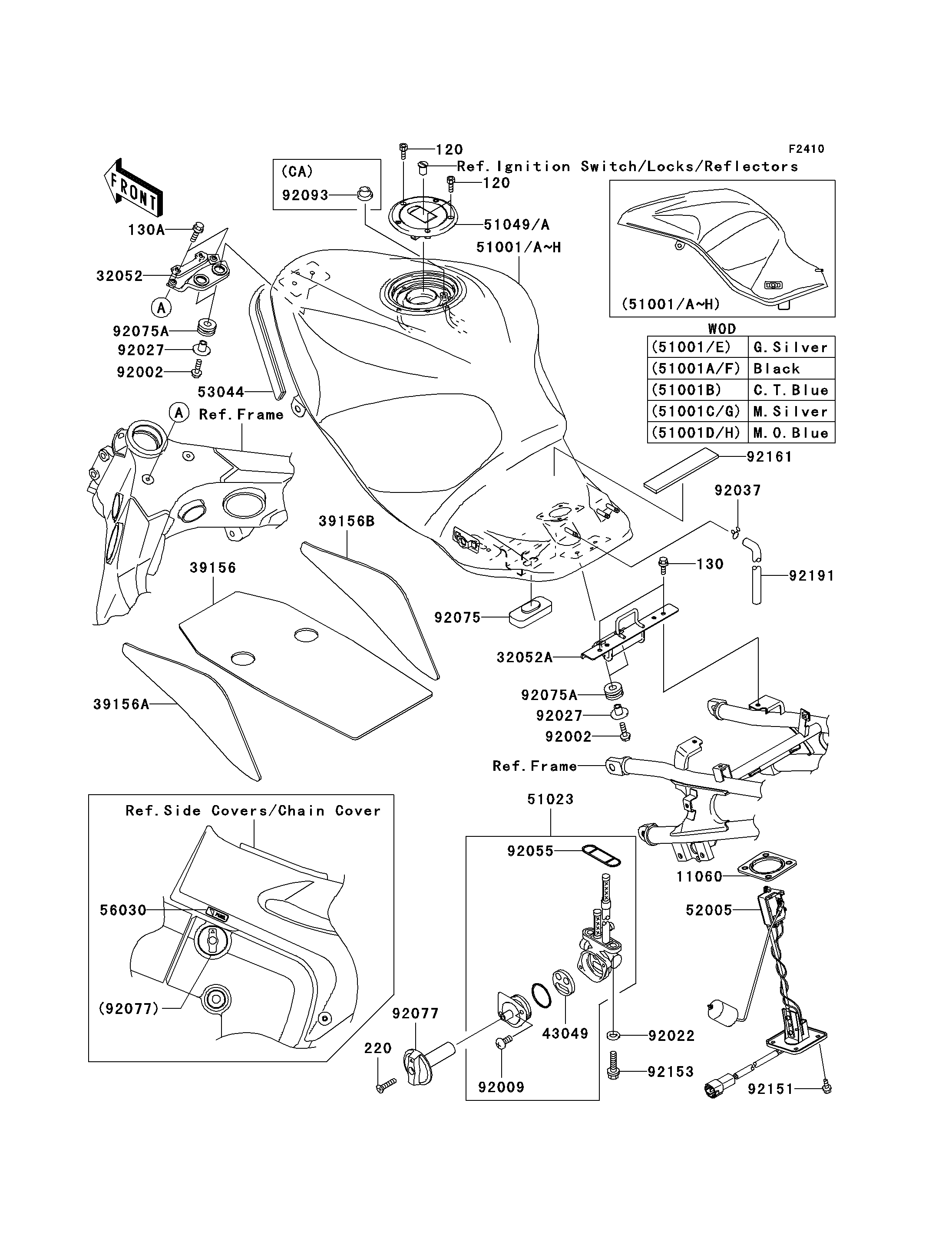

2004 ZZR1200 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
32052
32052
32052A
32052A
39156
39156
39156A
39156A
39156B
39156B
43049
43049
51023
51023
51049A
51049A
52005
52005
53044
53044
56030
56030
92002
92002
92002
92002
92009
92009
92022
92022
92027
92027
92027
92027
92037
92037
92055
92055
92075
92075
92075A
92075A
92075A
92075A
92077
92077
120
120
120
120
130
130
130A
130A
220
220
92151
92151
92153
92153
92161
92161
92191
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11060 11060-1952 1
BRACKET-TANK,FR 32052 32052-1559 1
BRACKET-TANK,RR 32052A 32052-1560 1
PAD,FUEL TANK,CNT 39156 39156-1709 1
PAD,FUEL TANK,LH 39156A 39156-1710 1
PAD,FUEL TANK,RH 39156B 39156-1711 1
PACKING,TAP VALVE 43049 43049-1099 1
TAP-ASSY,FUEL 51023 51023-1368 1
CAP-TANK,FUEL 51049A 51049-1127 1
GAUGE,FUEL 52005 52005-1155 1
TRIM,L=600 53044 53044-1329 1
LABEL,FUEL TAP KNOB 56030 56030-1281 1
BOLT,6X20 92002 92002-1237 4
SCREW,3X8 92009 92009-1386 2
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,L=13.1 92027 92027-251 4
CLAMP,TUBE 92037 92037-147 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
DAMPER,FUEL TANK,RR 92075 92075-1114 1
DAMPER 92075A 92075-1690 4
KNOB,FUEL TAP 92077 92077-1131 1
BOLT-SOCKET 120 120S0516 3
BOLT-FLANGED,6X16,BLACK 130 130J0616 2
BOLT-FLANGED 130A 130J0620 2
SCREW-PAN-CROSS 220 220F0416 1
BOLT,5X12 92151 92151-1599 4
BOLT,FLANGED,6X25 92153 92153-0514 2
DAMPER,FUEL TANK 92161 92161-1299 1
TUBE,DRAIN 92191 92191-1272 1
TANK-COMP-FUEL,C.T.BLUE 51001B 51001-1672-235 1 CN
TANK-COMP-FUEL,M.SILVER 51001C 51001-1672-473 1 CNUS
TANK-COMP-FUEL,M.SILVER 51001G 51001-1673-473 1 CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
