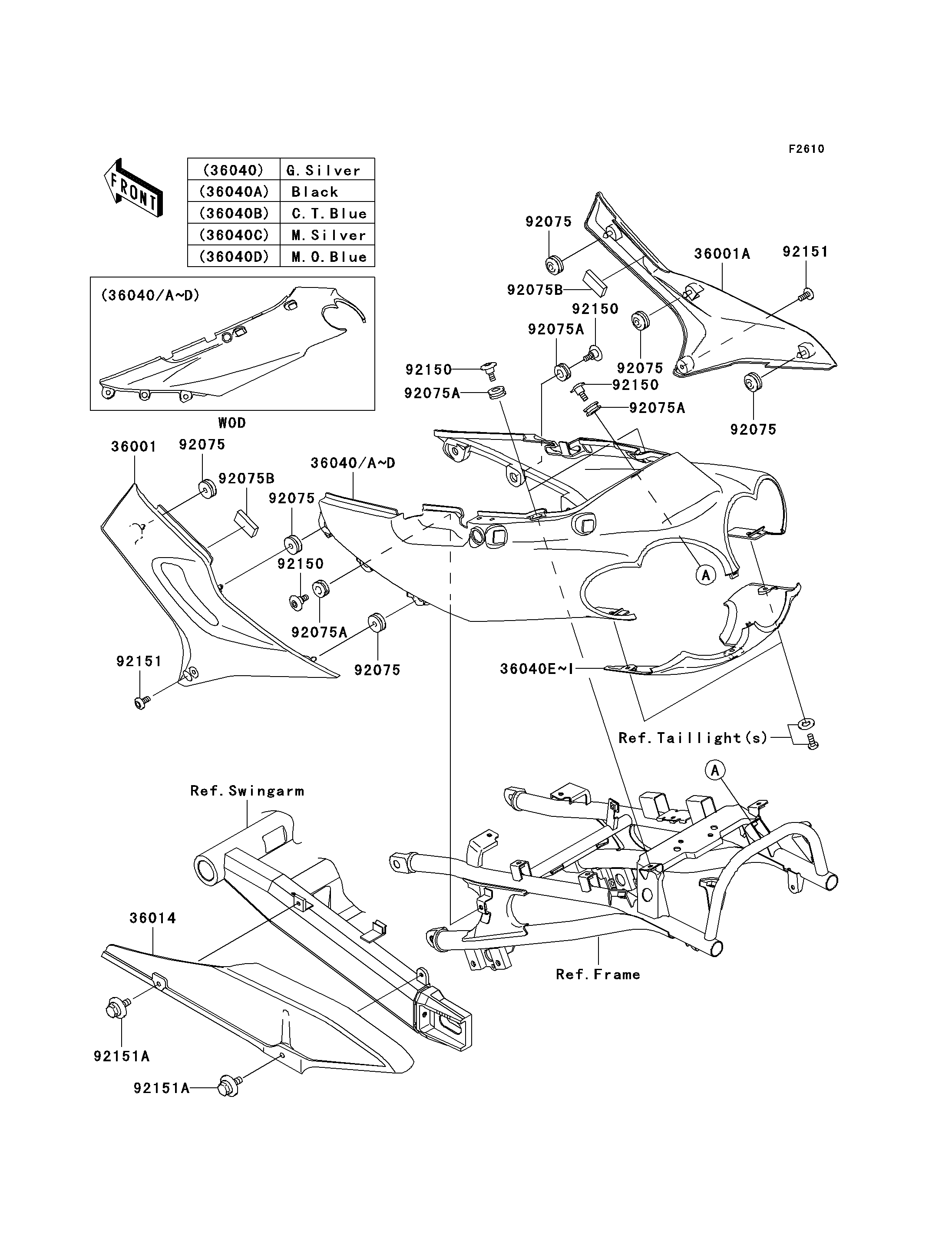

2004 ZZR1200 - Side Covers/Chain Cover
36001
36001A
36014
36040C
36040H
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
92150
92150
92150
92150
92151
92151
92151A
92151A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,M.GRAYSTONE | 36001 | 36001-1668-C4 | 1 | ||
| COVER-SIDE,RH,M.GRAYSTONE | 36001A | 36001-1669-C4 | 1 | ||
| CASE-CHAIN | 36014 | 36014-1261 | 1 | ||
| COVER-TAIL,M.SILVER | 36040C | 36040-1062-473 | 1 | ||
| COVER-TAIL,LWR,M.SILVER | 36040H | 36040-1063-473 | 1 | ||
| DAMPER | 92075 | 92075-1067 | 6 | ||
| DAMPER | 92075A | 92075-1634 | 5 | ||
| DAMPER | 92075B | 92075-1902 | 2 | ||
| BOLT,SOCKET,6MM | 92150 | 92150-1154 | 5 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 2 | ||
| BOLT,6X12 | 92151A | 92151-1985 | 2 | ||
| COVER-TAIL,C.T.BLUE | 36040B | 36040-1062-235 | 1 | CN | |
| COVER-TAIL,LWR,C.T.BLUE | 36040G | 36040-1063-235 | 1 | CN |
| COVER-SIDE,LH,M.GRAYSTONE | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,M.GRAYSTONE | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,M.SILVER | |
| REF # | 36040C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,LWR,M.SILVER | |
| REF # | 36040H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6MM | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,C.T.BLUE | |
| REF # | 36040B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| COVER-TAIL,LWR,C.T.BLUE | |
| REF # | 36040G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
