Part Item Information

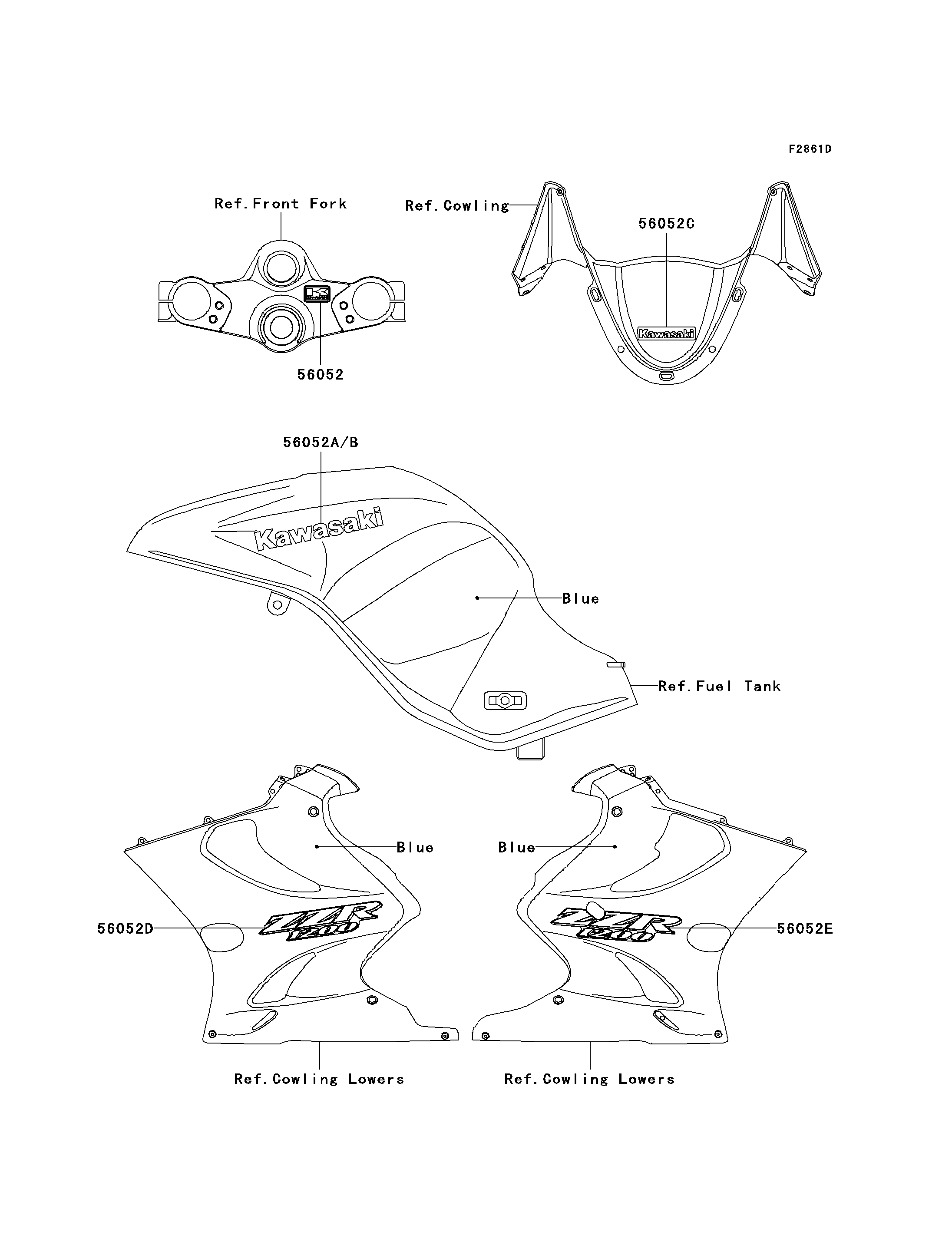

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,K.KAWASAKI 56052 56052-1202 1 CN
MARK,FUEL TANK,LH,KAWASAKI 56052A 56052-1667 1 CN
MARK,FUEL TANK,RH,KAWASAKI 56052B 56052-1668 1 CN
MARK,FRONT,KAWASAKI 56052C 56052-1726 1 CN
MARK,LWR COWLING,LH,ZZR1200 56052D 56052-1881 1 CN
MARK,LWR COWLING,RH,ZZR1200 56052E 56052-1882 1 CN
