Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

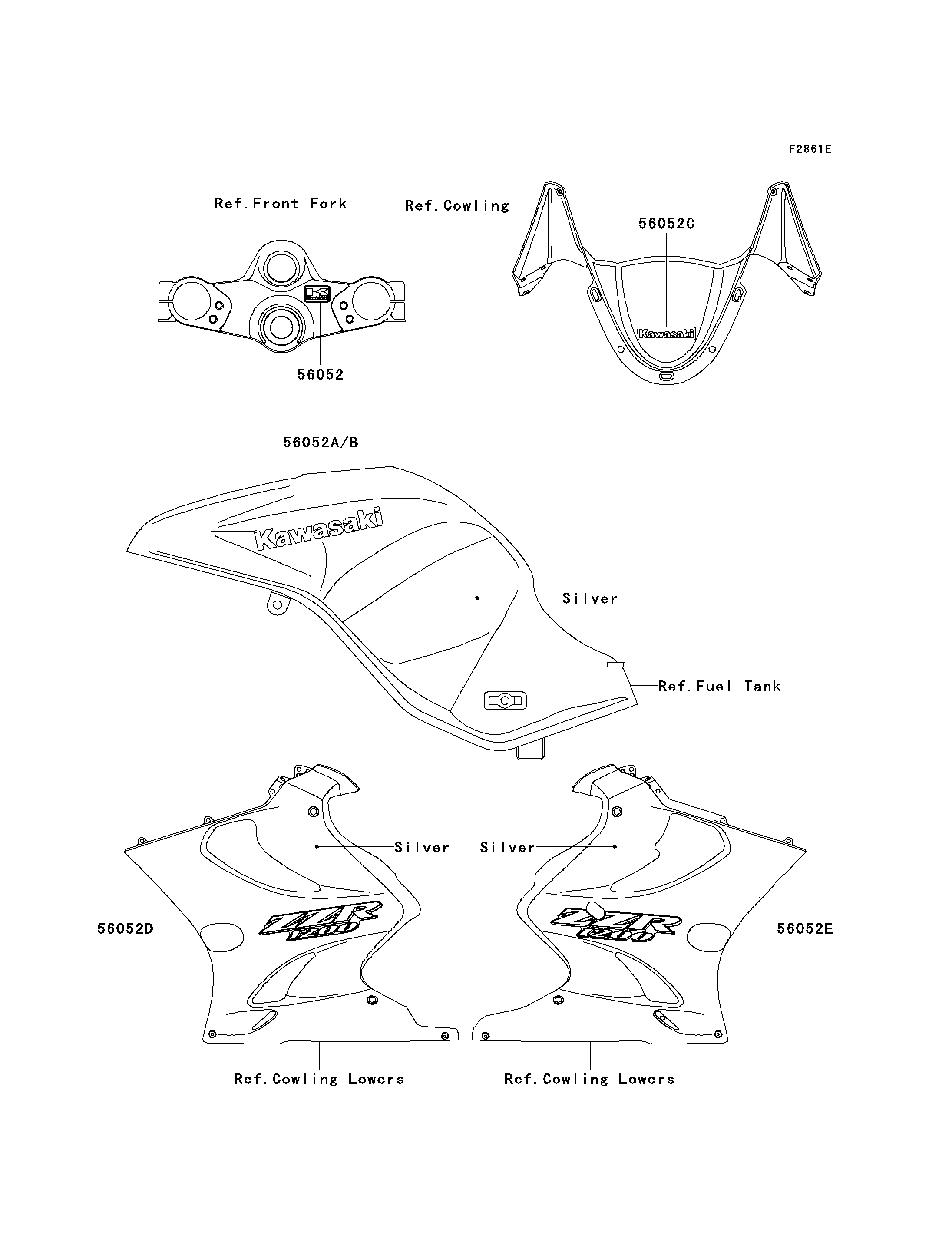

56052
56052A
56052B
56052C
56052D
56052E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,K.KAWASAKI 56052 56052-1202 1
MARK,FUEL TANK,LH,KAWASAKI 56052A 56052-1667 1
MARK,FUEL TANK,RH,KAWASAKI 56052B 56052-1668 1
MARK,FRONT,KAWASAKI 56052C 56052-1726 1
MARK,LWR COWLING,LH,ZZR1200 56052D 56052-1879 1
MARK,LWR COWLING,RH,ZZR1200 56052E 56052-1880 1
