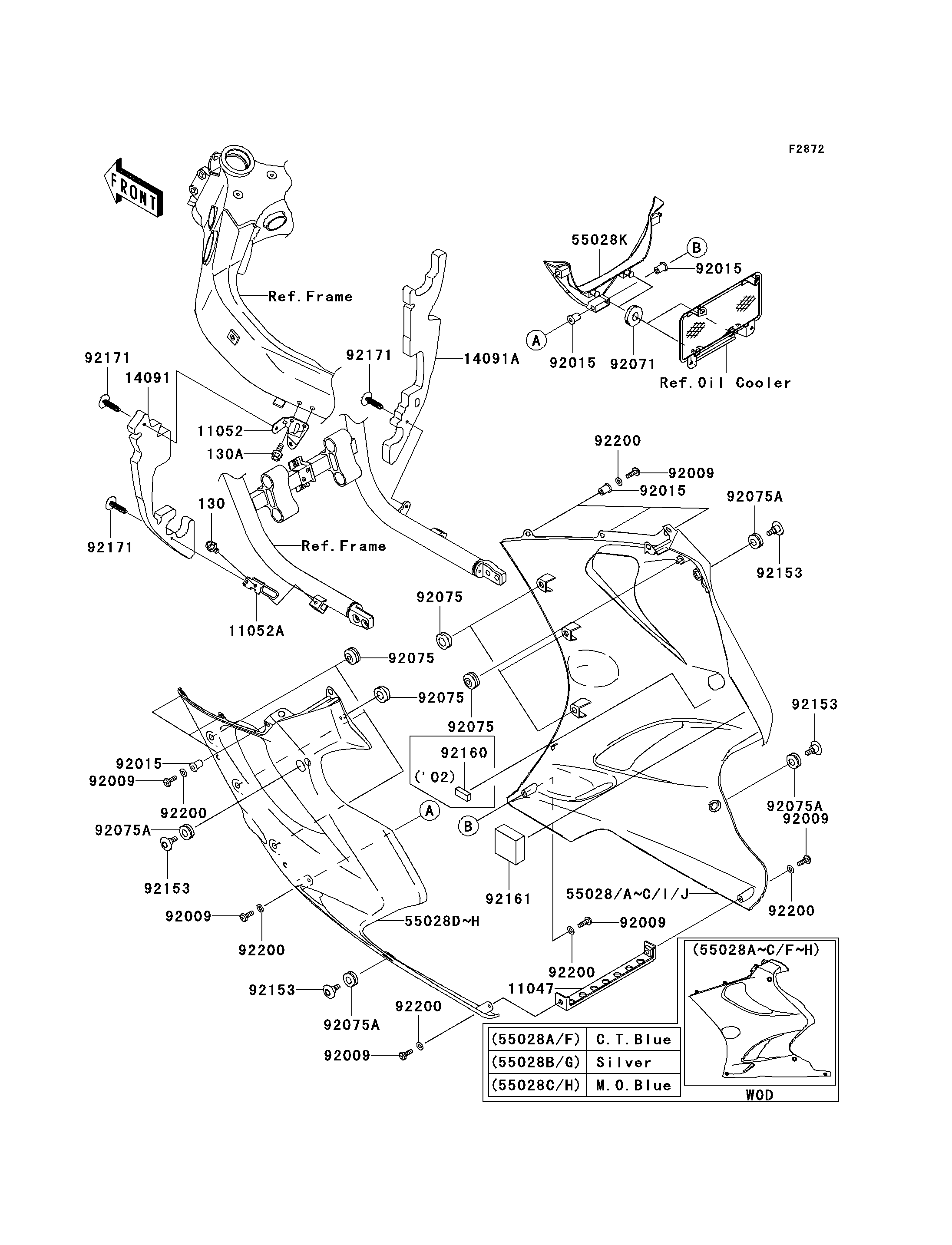

2004 ZZR1200 - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11047
11052
11052A
14091
14091A
55028B
55028G
55028K
92009
92009
92009
92009
92009
92009
92015
92015
92015
92015
92071
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92153
92153
92153
92153
92161
92171
92171
92171
92200
92200
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 1
BOLT-FLANGED,6X16,BLACK 130A 130J0616 2
BRACKET,LWR COWLING 11047 11047-1080 1
BRACKET,LWR COWL COVER,LH,UPP 11052 11052-1872 1
BRACKET,LWR COWL COVER,LH,LWR 11052A 11052-1947 1
COVER,LWR COWLING,LH 14091 14091-1505 1
COVER,LWR COWLING,RH 14091A 14091-1506 1
COWLING,LWR,RH,M.SILVER 55028B 55028-0001-473 1
COWLING,LWR,LH,M.SILVER 55028G 55028-1448-473 1
COWLING,FR 55028K 55028-1450 1
SCREW,5X16 92009 92009-1909 10
NUT,WELL,5MM 92015 92015-1757 8
GROMMET 92071 92071-1043 2
DAMPER 92075 92075-1067 8
DAMPER 92075A 92075-1634 4
BOLT,SOCKET,6MM 92153 92153-1181 4
DAMPER 92161 92161-1307 1
CLAMP 92171 92171-1280 3
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 10
COWLING,LWR,RH,C.T.BLUE 55028A 55028-0001-235 1 CN
COWLING,LWR,LH,C.T.BLUE 55028F 55028-1448-235 1 CN
