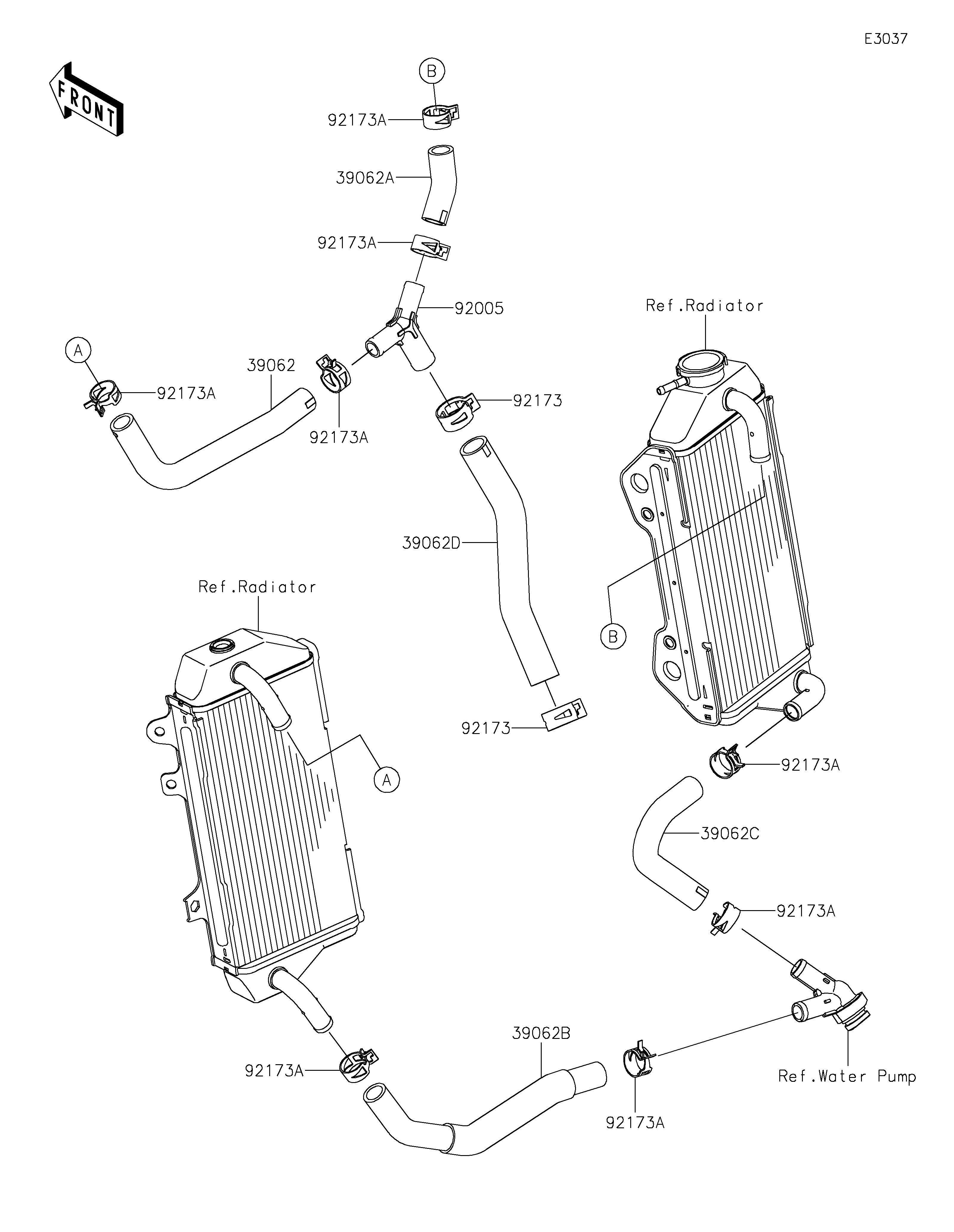

Parts Diagrams |
39062
39062A
39062B
39062C
39062D
92005
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOSE-COOLING,UPP,RAD.(LH) | 39062 | 39062-0901 | 1 | ||
| HOSE-COOLING,UPP,RAD.(RH) | 39062A | 39062-0902 | 1 | ||
| HOSE-COOLING,LWR,RAD(LH) | 39062B | 39062-1974 | 1 | ||
| HOSE-COOLING,LWR,RAD(RH) | 39062C | 39062-1975 | 1 | ||
| HOSE-COOLING,FITTING-H/C | 39062D | 39062-1976 | 1 | ||
| FITTING,3WAY | 92005 | 92005-0980 | 1 | ||
| CLAMP | 92173 | 92173-1417 | 2 | ||
| CLAMP,19.9MM | 92173A | 92173-1561 | 8 |
