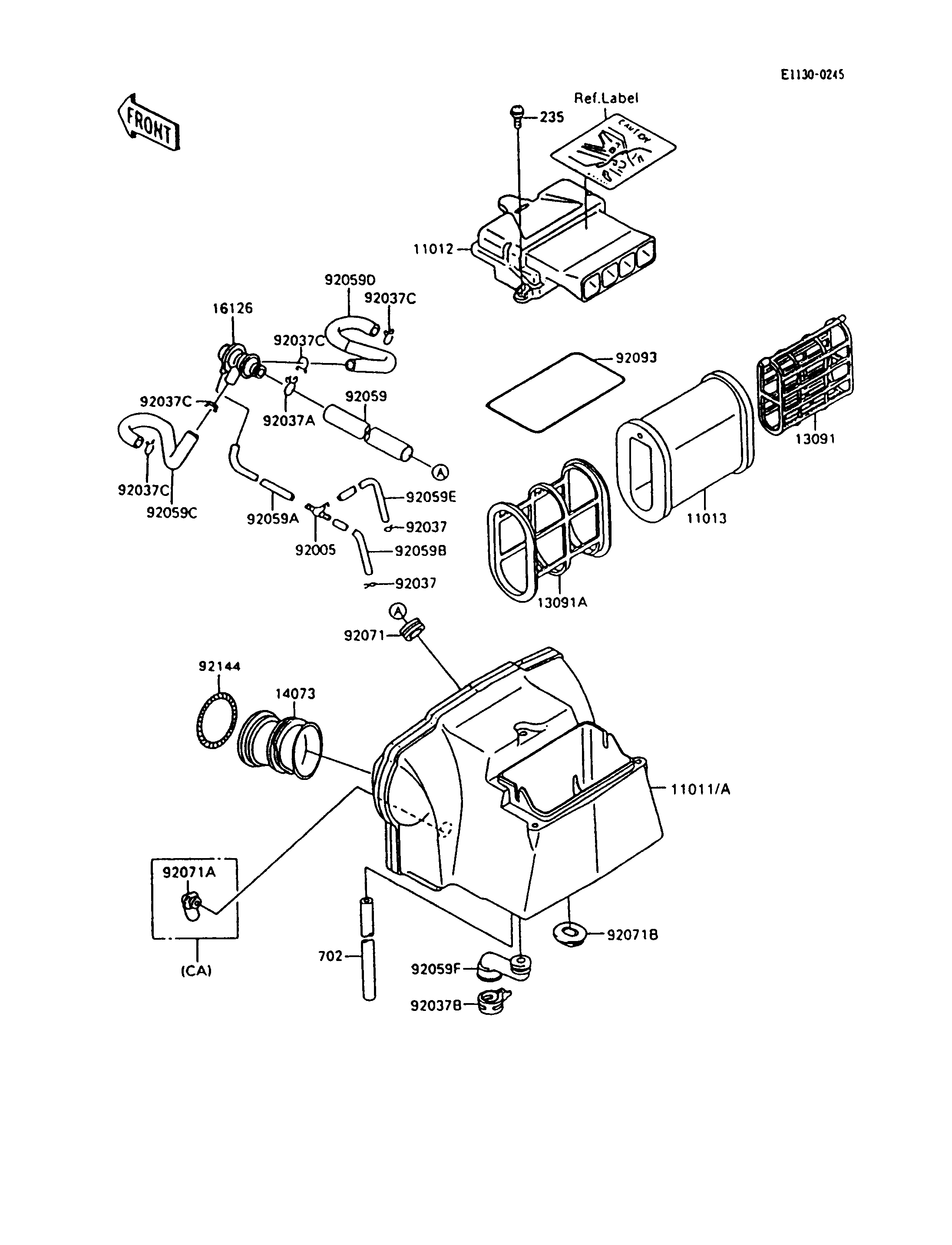

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CASE-AIR FILTER | 11011 | 11011-1252 | 1 | ||
CASE-AIR FILTER | 11011A | 11011-1256 | 1 | ||
CAP,AIR FILTER | 11012 | 11012-1619 | 1 | ||
ELEMENT-AIR FILTER | 11013 | 11013-1154 | 1 | ||
HOLDER,ELEMENT | 13091 | 13091-1467 | 1 | ||
HOLDER,ELEMENT | 13091A | 13091-1468 | 1 | ||
DUCT,CARBURETOR | 14073 | 14073-1211 | 4 | ||
VALVE,AIR SWITCH | 16126 | 16126-1005 | 1 | ||
FITTING,TUBE,T-TYPE | 92005 | 92005-1017 | 1 | ||
CLAMP,TUBE | 92037 | 92037-072 | 2 | ||
CLAMP,TUBE | 92037A | 92037-1076 | 1 | ||
CLAMP | 92037B | 92037-1730 | 1 | ||
CLAMP,TUBE | 92037C | 92037-213 | 4 | ||
TUBE,19X25X260 | 92059 | 92059-1031 | 1 | ||
TUBE,4X9X220 | 92059A | 92059-1040 | 1 | ||
TUBE,4X9X80 | 92059B | 92059-1365 | 1 | ||
TUBE,AIR SWITCH VALVE,LH | 92059C | 92059-1674 | 1 | ||
TUBE,AIR SWITCH VALVE,RH | 92059D | 92059-1675 | 1 | ||
TUBE,4X9X260 | 92059E | 92059-1712 | 1 | ||
TUBE,BREATHER | 92059F | 92059-1798 | 1 | ||
GROMMET,AIR FILTER | 92071 | 92071-1013 | 1 | ||
GROMMET,AIR FILTER | 92071A | 92071-1114 | 1 | ||
GROMMET,AIR FILTER | 92071B | 92071-1123 | 1 | ||
SEAL,AIR FILTER CAP | 92093 | 92093-1212 | 1 | ||
SPRING,AIR FILTER DUCT | 92144 | 92144-1771 | 4 | ||
SCREW-PAN-WP-CROS | 235 | 235B0616 | 2 | ||
TUBE-RUBBER | 702 | 702A05100 | 1 |
CASE-AIR FILTER | |
REF # | 11011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-AIR FILTER | |
REF # | 11011A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,AIR FILTER | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELEMENT-AIR FILTER | |
REF # | 11013 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,ELEMENT | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,ELEMENT | |
REF # | 13091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,CARBURETOR | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
VALVE,AIR SWITCH | |
REF # | 16126 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING,TUBE,T-TYPE | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
TUBE,19X25X260 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,4X9X220 | |
REF # | 92059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,4X9X80 | |
REF # | 92059B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,AIR SWITCH VALVE,LH | |
REF # | 92059C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,AIR SWITCH VALVE,RH | |
REF # | 92059D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,4X9X260 | |
REF # | 92059E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,BREATHER | |
REF # | 92059F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,AIR FILTER | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,AIR FILTER | |
REF # | 92071A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,AIR FILTER | |
REF # | 92071B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,AIR FILTER CAP | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,AIR FILTER DUCT | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-PAN-WP-CROS | |
REF # | 235 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE-RUBBER | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
