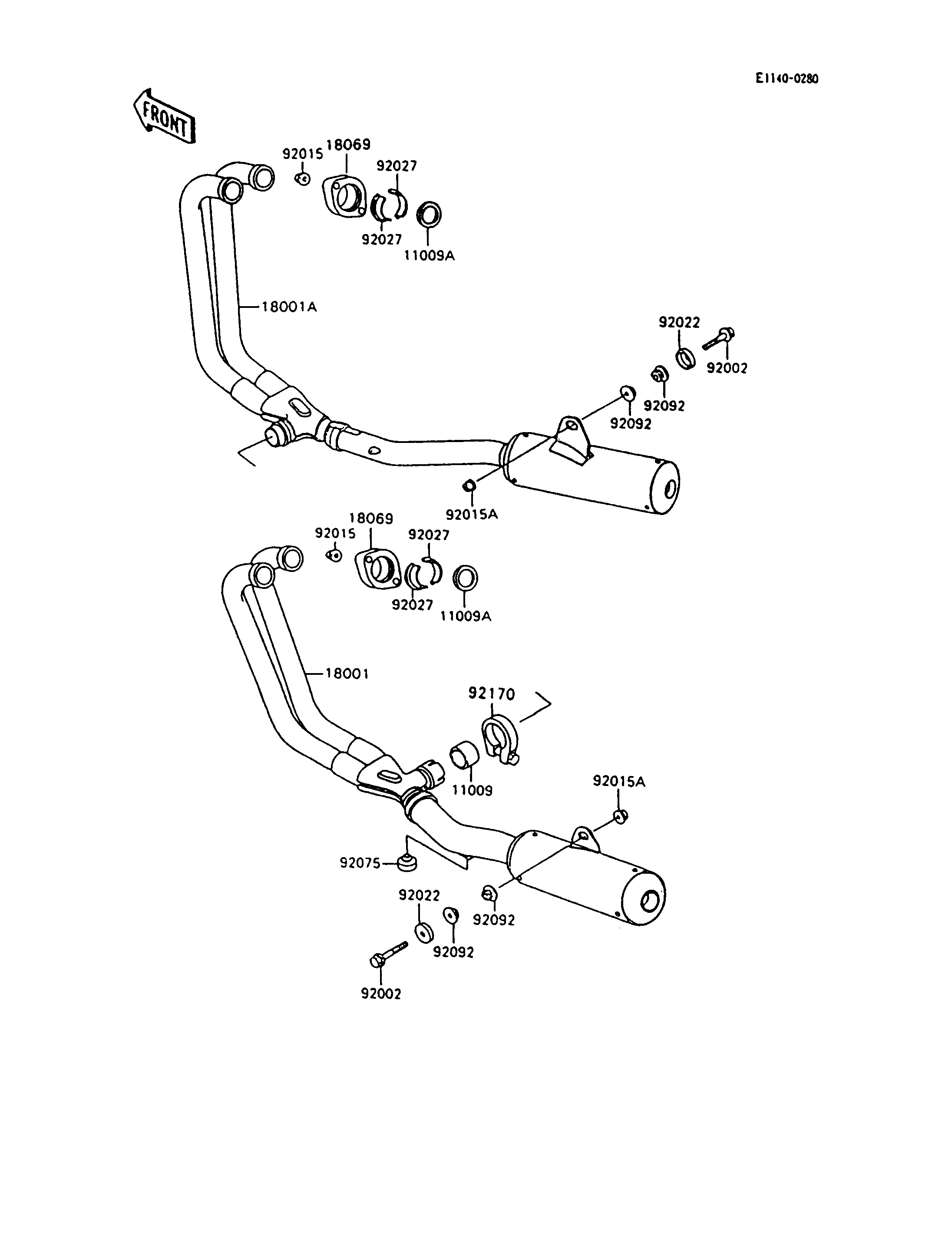

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1718 1
GASKET,EXHAUST PIPE HOLDER 11009A 11009-1866 4
MUFFLER,LH 18001 18001-1719 1
MUFFLER,RH 18001A 18001-1720 1
HOLDER-EXHAUST PIPE 18069 18069-1025 4
BOLT,10X55 92002 92002-1127 2
NUT,6MM 92015 92015-1365 8
NUT,FLANGED,10MM 92015A 92015-1387 2
WASHER 92022 92022-289 2
COLLAR 92027 92027-1365 8
DAMPER 92075 92075-015 1
BUSHING-RUBBER,MUFFLER 92092 92092-1013 4
CLAMP,MUFFLER 92170 92170-1454 1
