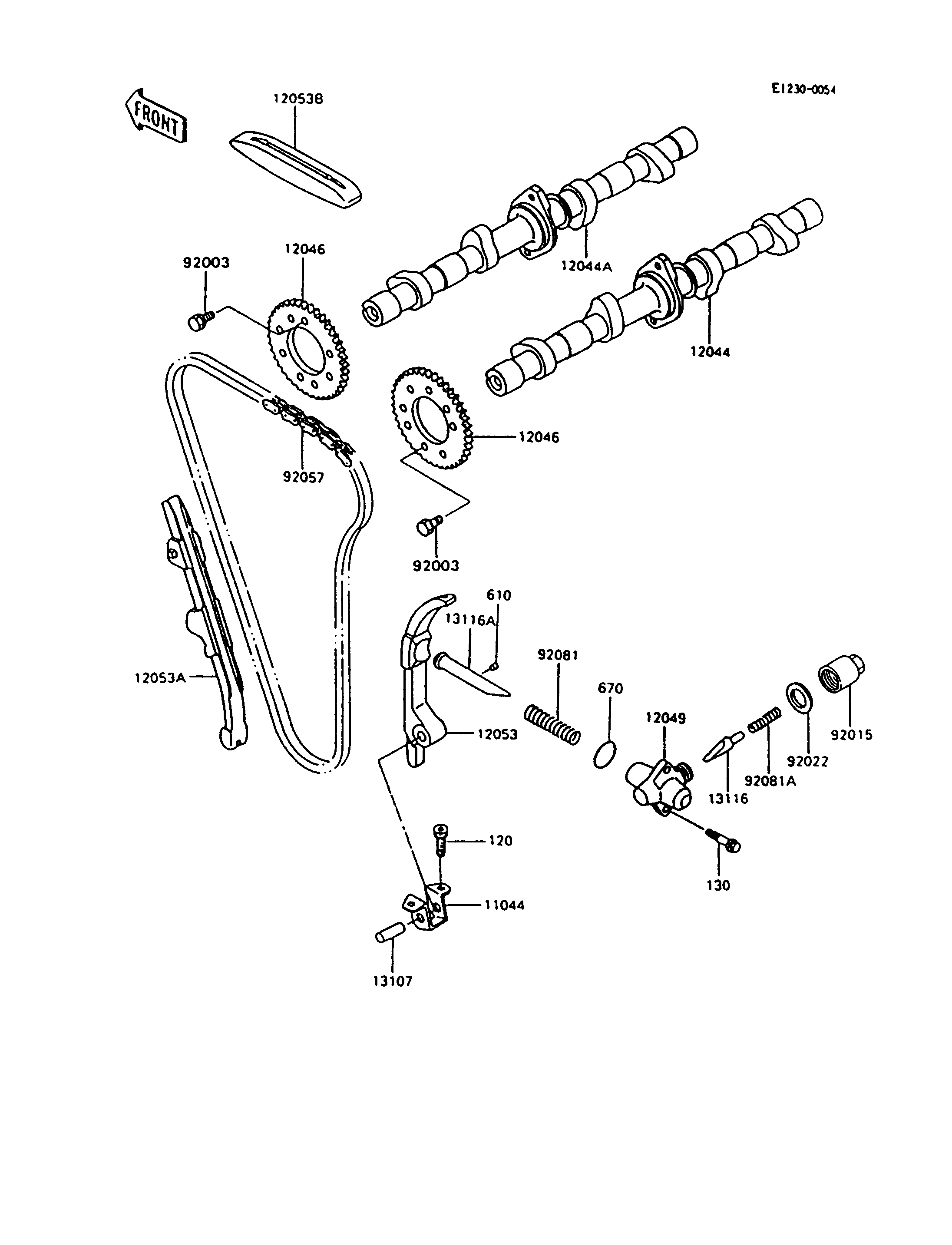

1997 Ninja® 600R - Camshaft(s)/Tensioner
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,CHAIN GUIDE | 11044 | 11044-1079 | 1 | ||
CAMSHAFT-VALVE,INTAKE | 12044 | 12044-1203 | 1 | ||
CAMSHAFT-VALVE,EXHAUST | 12044A | 12044-1204 | 1 | ||
SPROCKET,CAMSHAFT,42T | 12046 | 12046-1078 | 2 | ||
TENSIONER,CAM CHAIN | 12049 | 12049-1009 | 1 | ||
GUIDE-CHAIN,RR | 12053 | 12053-1158 | 1 | ||
GUIDE-CHAIN,FR | 12053A | 12053-1159 | 1 | ||
GUIDE-CHAIN,HEAD | 12053B | 12053-1160 | 1 | ||
SHAFT,8X25 | 13107 | 13107-1142 | 1 | ||
ROD-PUSH,TENSIONER | 13116 | 13116-1012 | 1 | ||
ROD-PUSH,CAM CHAIN | 13116A | 13116-1020 | 1 | ||
BOLT,FLANGED,6X11 | 92003 | 92003-208 | 4 | ||
NUT,CAP,18MM | 92015 | 92015-1100 | 1 | ||
WASHER,18.3X24X1.4 | 92022 | 92022-1175 | 1 | ||
CHAIN,CAM,82RH2010-136L | 92057 | 92057-1190 | 1 | ||
SPRING,TENSIONER | 92081 | 92081-1075 | 1 | ||
SPRING,TENSIONER | 92081A | 92081-1302 | 1 | ||
BOLT-SOCKET,6X18 | 120 | 120P0618 | 2 | ||
BOLT-FLANGED | 130 | 130Y0625 | 2 | ||
ROLLER,4X8 | 610 | 610A0408 | 1 | ||
O RING,21MM | 670 | 670B2021 | 1 |
