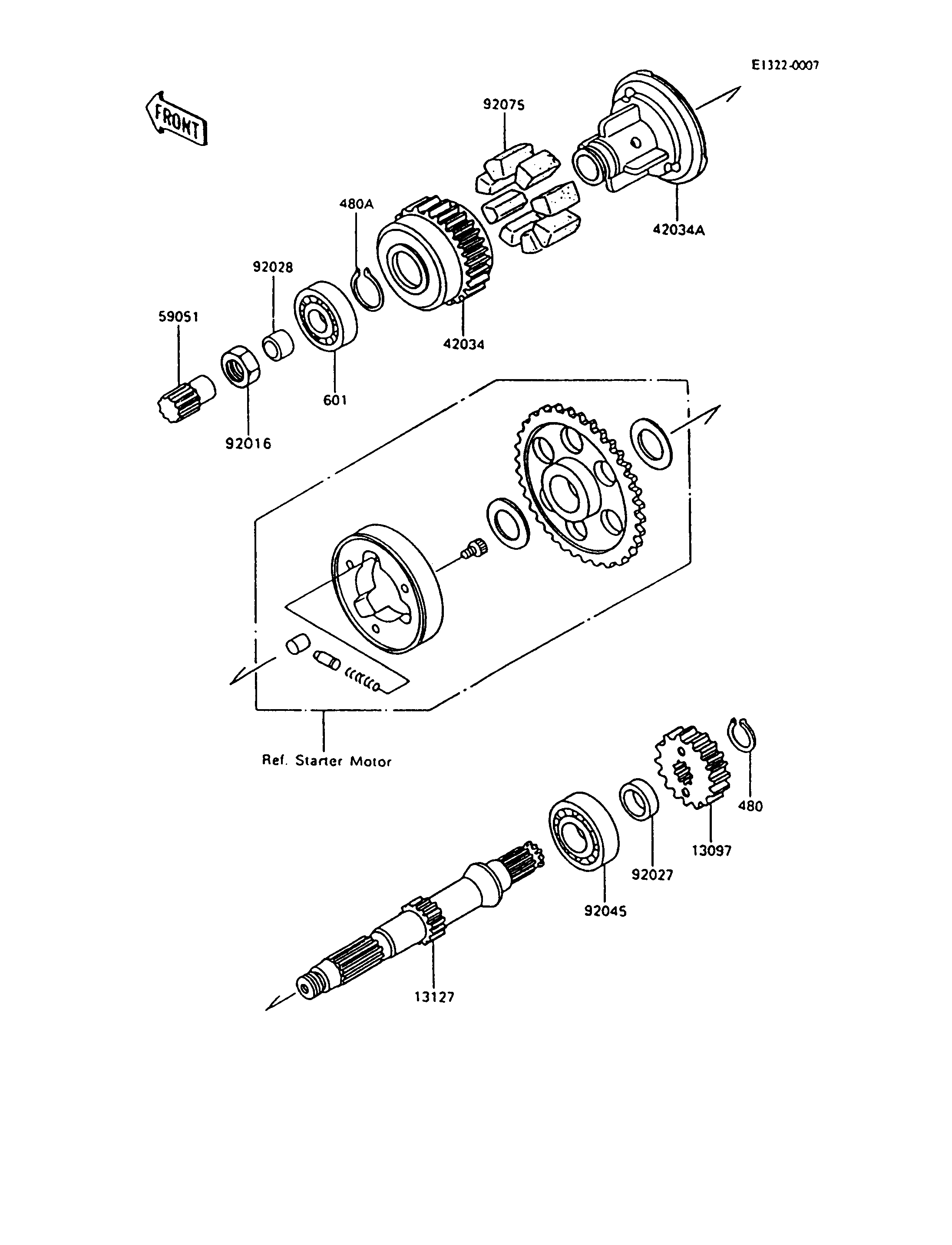

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-PRIMARY SPUR,28T 13097 13097-1141 1
SHAFT,SECONDARY 13127 13127-1123 1
COUPLING,OUTER,SECONDARY SHAFT 42034 42034-1004 1
COUPLING,INNER,SECONDARY SHAFT 42034A 42034-1005 1
GEAR-SPUR,10T,SECONDARY 59051 59051-1137 1
NUT,20MM 92016 92016-028 1
COLLAR,22X34X7.3 92027 92027-1438 1
BUSHING,20X25X16.6 92028 92028-1037 1
BEARING-BALL,#63/22X 92045 92045-1017 1
DAMPER,COUPLING 92075 92075-1070 8
CIRCLIP-TYPE-C,22MM 480 480J2200 1
CIRCLIP-TYPE-C,28MM 480A 480J2800 1
BEARING-BALL,#6205C3 601 601B6205 1
