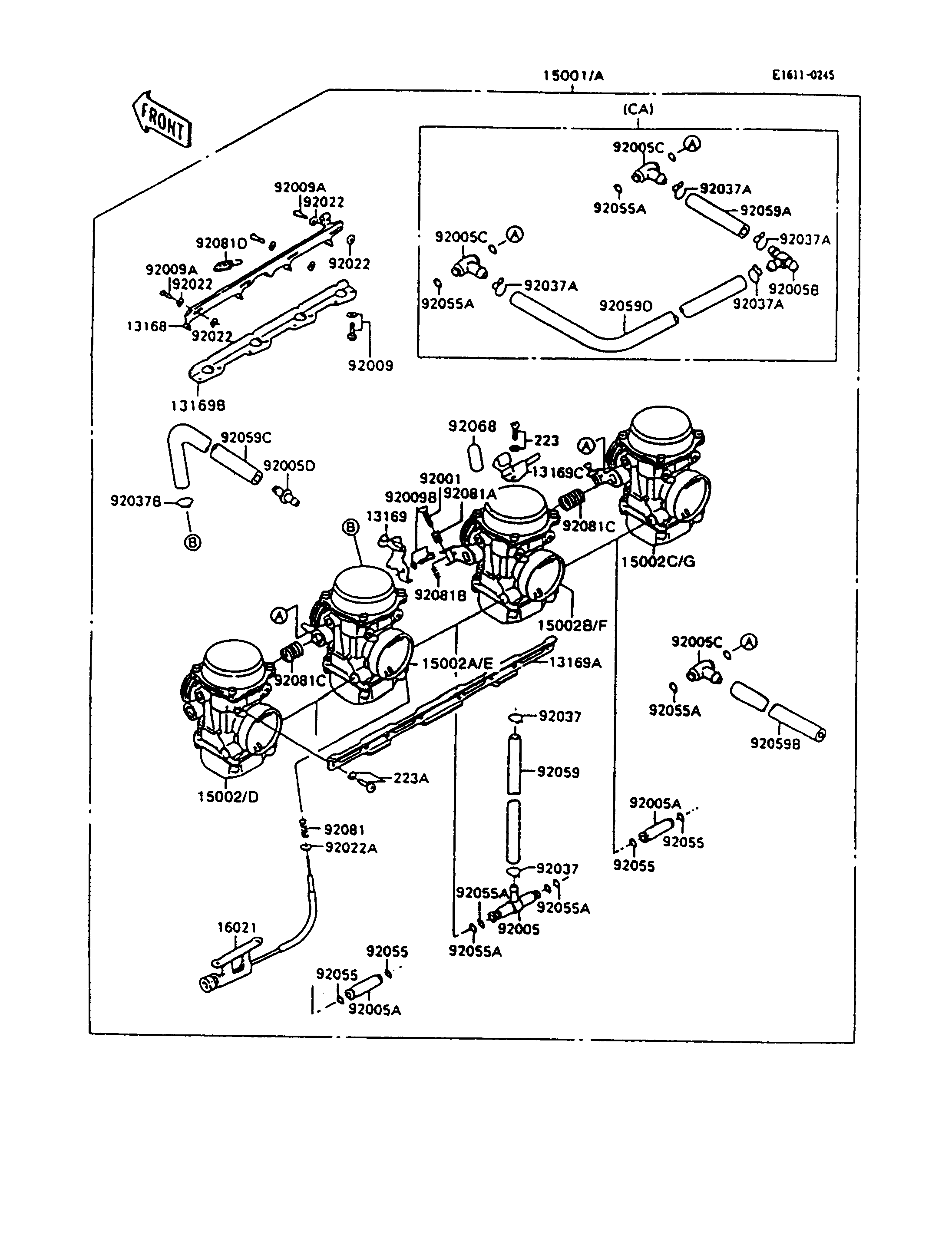

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER,STARTER | 13168 | 13168-1280 | 1 | ||
PLATE,THROTTLE CABLE | 13169 | 13169-1962 | 1 | ||
PLATE,CARBURETOR STAY,UPP | 13169A | 13169-1963 | 1 | ||
PLATE,CARBURETOR STAY,LWR,6MM | 13169B | 13169-1964 | 1 | ||
PLATE,STARTER CABLE | 13169C | 13169-1965 | 1 | ||
CARBURETOR-ASSY | 15001 | 15001-1357 | 1 | ||
CARBURETOR-ASSY | 15001A | 15001-1359 | 1 | ||
CARBURETOR,LH,OUTSIDE | 15002 | 15002-1537 | 1 | ||
CARBURETOR,LH,INSIDE | 15002A | 15002-1538 | 1 | ||
CARBURETOR,RH,INSIDE | 15002B | 15002-1539 | 1 | ||
CARBURETOR,RH,OUTSIDE | 15002C | 15002-1540 | 1 | ||
CARBURETOR,LH,OUTSIDE | 15002D | 15002-1545 | 1 | ||
CARBURETOR,LH,INSIDE | 15002E | 15002-1546 | 1 | ||
CARBURETOR,RH,INSIDE | 15002F | 15002-1547 | 1 | ||
CARBURETOR,RH,OUTSIDE | 15002G | 15002-1548 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1114 | 1 | ||
BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 3 | ||
FITTING,FUEL,T-TYPE | 92005 | 92005-1108 | 1 | ||
FITTING,FUEL,I-TYPE | 92005A | 92005-1109 | 2 | ||
FITTING,T-TYPE | 92005B | 92005-1119 | 1 | ||
FITTING,T-TYPE | 92005C | 92005-1125 | 2 | ||
FITTING | 92005D | 92005-1167 | 1 | ||
SCREW,6X16 | 92009 | 92009-1129 | 8 | ||
SCREW | 92009A | 92009-1262 | 3 | ||
SCREW,5X10 | 92009B | 92009-1365 | 1 | ||
WASHER,6.1X11X0.8,POLYACETAL | 92022 | 92022-1199 | 6 | ||
WASHER,PLAIN,STOP SPRING | 92022A | 92022-1480 | 1 | ||
CLAMP,FUEL TUBE | 92037 | 92037-1075 | 2 | ||
CLAMP,TUBE | 92037A | 92037-1194 | 4 | ||
CLAMP,TUBE | 92037B | 92037-1477 | 1 | ||
RING-O | 92055 | 92055-1004 | 4 | ||
RING-O,FUEL FITTING | 92055A | 92055-1223 | 8 | ||
TUBE,FUEL,7.3X12.5X220 | 92059 | 92059-1236 | 1 | ||
TUBE,7X11X100 | 92059A | 92059-1476 | 1 | ||
TUBE,6.5X9.5X320 | 92059B | 92059-1861 | 2 | ||
TUBE,5X9X340 | 92059C | 92059-1862 | 1 | ||
TUBE,7X11X220 | 92059D | 92059-1863 | 1 | ||
PLUG,12X25 | 92068 | 92068-006 | 1 | ||
SPRING,THROTTLE STOP SCREW | 92081 | 92081-1617 | 1 | ||
SPRING,THROTTLE ADJUST UPP | 92081A | 92081-1620 | 3 | ||
SPRING,THROTTLE ADJUST LWR | 92081B | 92081-1621 | 3 | ||
SPRING,THROTTLE ADJUST CNT | 92081C | 92081-1622 | 2 | ||
SPRING,STARTER LEVER | 92081D | 92081-1913 | 1 | ||
SCREW-PAN-WS-CROS | 223 | 223C0420 | 1 | ||
SCREW-PAN-WS-CROS | 223A | 223C0510 | 8 |
