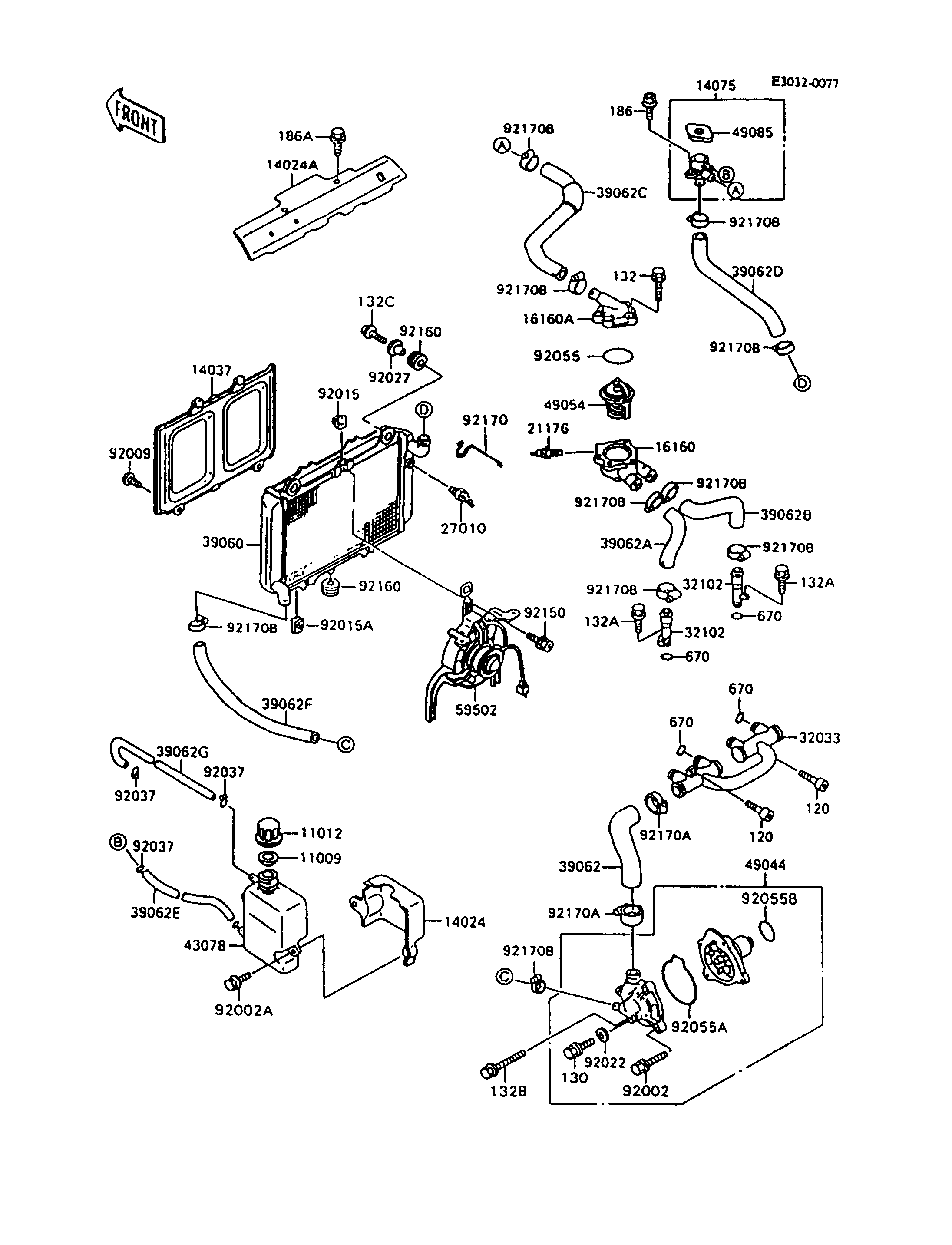

1997 Ninja® 600R - Radiator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
COVER,RESERVOIR 14024 14024-1426 1
COVER 14024A 14024-1441 1
SCREEN 14037 14037-1091 1
CAP-ASSY,RADIATOR 14075 14075-1061 1
BODY,THERMOSTAT,LWR 16160 16160-1112 1
BODY,THERMOSTAT,UPP 16160A 16160-1129 1
SENSOR,WATER 21176 21176-1054 1
SWITCH,THERMOSTAT 27010 27010-1304 1
PIPE 32033 32033-1593 1
PIPE 32102 32102-1043 2
RADIATOR 39060 39060-1085 1
HOSE-COOLING,PUMP-CYLINDER 39062 39062-1111 1
HOSE-COOLING,HEAD-THERMOS,LH 39062A 39062-1235 1
HOSE-COOLING,HEAD-THERMOS,RH 39062B 39062-1236 1
HOSE-COOLING,CAP-THEROMOSTAT 39062C 39062-1237 1
HOSE-COOLING,CAP-RADIATOR 39062D 39062-1238 1
HOSE-COOLING,RESERVOIR-CAP 39062E 39062-1240 1
HOSE-COOLING,RADIATOR-PUMP 39062F 39062-1256 1
HOSE-COOLING,RESERVOIR 39062G 39062-1269 1
RESERVOIR 43078 43078-1086 1
PUMP-WATER 49044 49044-1054 1
THERMOSTAT 49054 49054-1059 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
FAN-ASSY 59502 59502-1081 1
BOLT,6X22 92002 92002-1392 3
BOLT,6X16 92002A 92002-1720 2
SCREW,TAPPING,6X16 92009 92009-1436 2
NUT 92015 92015-1487 3
NUT,6MM 92015A 92015-1758 2
WASHER,6MM 92022 92022-1976 1
COLLAR,L=14 92027 92027-1134 2
CLAMP,TUBE 92037 92037-147 3
RING-O,44.7X2.4 92055 92055-1279 1
RING-O,WATER PUMP 92055A 92055-1315 1
RING-O,33.2X2.4 92055B 92055-1424 1
BOLT,6X16 92150 92150-1187 3
DAMPER 92160 92160-1007 3
CLAMP 92170 92170-1074 1
CLAMP,COOLING HOSE 92170A 92170-1284 2
CLAMP,COOLING HOSE 92170B 92170-1285 10
BOLT-SOCKET 120 120S0612 2
BOLT-FLANGED,6X10,BLACK 130 130C0610 1
BOLT-FLANGED-SMALL 132 132G0620 4
BOLT-FLANGED-SMALL 132A 132J0612 2
BOLT-FLANGED-SMALL 132B 132J0645 1
BOLT-FLANGED-SMALL 132C 132J0825 2
BOLT-UPSET-WP 186 186C0614 2
BOLT-UPSET-WP 186A 186C0616 2
O RING,16MM 670 670B2016 6
