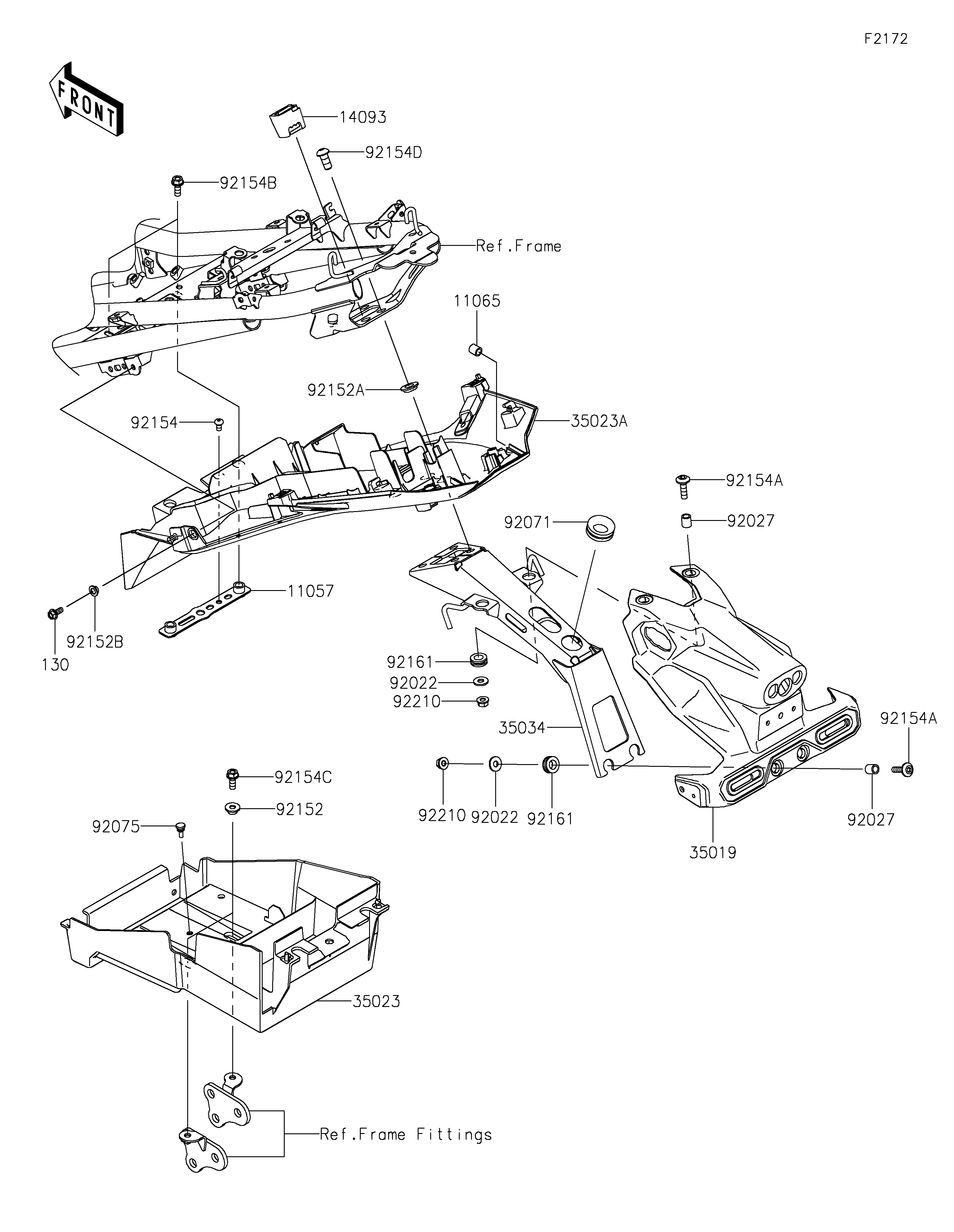

2025 Z500 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
11065
14093
35019
35023
35023A
35034
92022
92022
92027
92027
92071
92075
92152
92152A
92152B
92154
92154A
92154A
92154B
92154C
92154D
92161
92161
92210
92210
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-1191 1
CAP 11065 11065-0156 2
COVER,RR FENDER 14093 14093-1533 1
FLAP 35019 35019-0639 1
FENDER-REAR 35023 35023-0438 1
FENDER-REAR 35023A 35023-0500 1
REINFORCE 35034 35034-0616 1
WASHER 92022 92022-2247 4
COLLAR,6.8X10X11.5 92027 92027-1210 4
GROMMET 92071 92071-0709 1
DAMPER,6X10X15 92075 92075-1808 1
COLLAR,6.5X10X6.4 92152 92152-2287 2
COLLAR,10X20X4.5 92152A 92152-2392 4
COLLAR,6X8X4.5 92152B 92152-2395 2
BOLT,SOCKET,5X10 92154 92154-1547 1
BOLT,SOCKET,6X22 92154A 92154-2234 4
BOLT,FLANGED,6X16 92154B 92154-2895 2
BOLT,FLANGED,6X16 92154C 92154-2900 2
BOLT,SOCKET,8X18 92154D 92154-3739 4
DAMPER,10X18X6.5 92161 92161-2091 4
NUT,FLANGED,6MM 92210 92210-1514 4
BOLT-FLANGED,5X12 130 130BA0512 2
