Parts Diagrams |

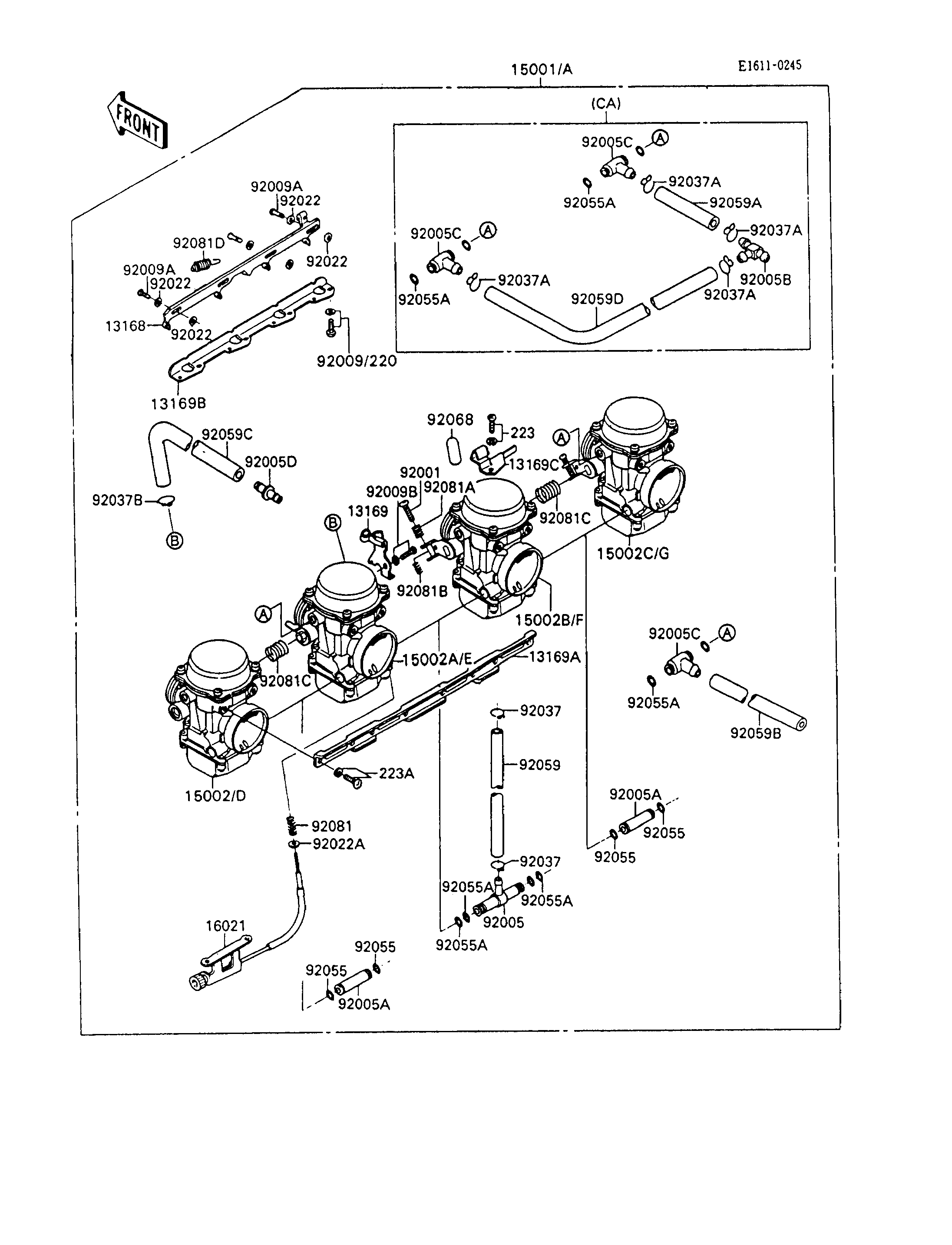

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,STARTER | 13168 | 13168-1280 | 1 | ||
| PLATE,THROTTLE CABLE | 13169 | 13169-1962 | 1 | ||
| PLATE,CARBURETOR STAY,UPP | 13169A | 13169-1963 | 1 | ||
| PLATE,CARBURETOR STAY,LWR,6MM | 13169B | 13169-1964 | 1 | ||
| PLATE,STARTER CABLE | 13169C | 13169-1965 | 1 | ||
| CARBURETOR-ASSY | 15001 | 15001-1357 | 1 | US | |
| CARBURETOR-ASSY | 15001A | 15001-1359 | 1 | CA | |
| CARBURETOR,LH,OUTSIDE | 15002 | 15002-1537 | 1 | US | |
| CARBURETOR,LH,INSIDE | 15002A | 15002-1538 | 1 | US | |
| CARBURETOR,RH,INSIDE | 15002B | 15002-1539 | 1 | US | |
| CARBURETOR,RH,OUTSIDE | 15002C | 15002-1540 | 1 | US | |
| CARBURETOR,LH,OUTSIDE | 15002D | 15002-1545 | 1 | CA | |
| CARBURETOR,LH,INSIDE | 15002E | 15002-1546 | 1 | CA | |
| CARBURETOR,RH,INSIDE | 15002F | 15002-1547 | 1 | CA | |
| CARBURETOR,RH,OUTSIDE | 15002G | 15002-1548 | 1 | CA | |
| SCREW-THROTTLE STOP | 16021 | 16021-1114 | 1 | ||
| BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 3 | ||
| FITTING,FUEL,T-TYPE | 92005 | 92005-1108 | 1 | ||
| FITTING,FUEL,I-TYPE | 92005A | 92005-1109 | 2 | ||
| FITTING,T-TYPE | 92005B | 92005-1119 | 1 | CA | |
| FITTING,T-TYPE | 92005C | 92005-1125 | 2 | ||
| FITTING | 92005D | 92005-1167 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1129 | 8 | ||
| SCREW | 92009A | 92009-1262 | 3 | ||
| SCREW,5X10 | 92009B | 92009-1365 | 1 | ||
| WASHER,6.1X11X0.8,POLYACETAL | 92022 | 92022-1199 | 6 | ||
| WASHER,PLAIN,STOP SPRING | 92022A | 92022-1480 | 1 | ||
| CLAMP,FUEL TUBE | 92037 | 92037-1075 | 2 | ||
| CLAMP,TUBE | 92037A | 92037-1194 | 4 | CA | |
| CLAMP,TUBE | 92037B | 92037-1477 | 1 | ||
| RING-O | 92055 | 92055-1004 | 4 | ||
| RING-O,FUEL FITTING | 92055A | 92055-1223 | 8 | ||
| TUBE,FUEL,7.3X12.5X220 | 92059 | 92059-1236 | 1 | ||
| TUBE,7X11X100 | 92059A | 92059-1476 | 1 | CA | |
| TUBE,6.5X9.5X320 | 92059B | 92059-1861 | 2 | US | |
| TUBE,5X9X340 | 92059C | 92059-1862 | 1 | ||
| TUBE,7X11X220 | 92059D | 92059-1863 | 1 | CA | |
| PLUG,12X25 | 92068 | 92068-006 | 1 | US | |
| SPRING,THROTTLE STOP SCREW | 92081 | 92081-1617 | 1 | ||
| SPRING,THROTTLE ADJUST UPP | 92081A | 92081-1620 | 3 | ||
| SPRING,THROTTLE ADJUST LWR | 92081B | 92081-1621 | 3 | ||
| SPRING,THROTTLE ADJUST CNT | 92081C | 92081-1622 | 2 | ||
| SPRING,STARTER LEVER | 92081D | 92081-1913 | 1 | ||
| SCREW-PAN-CROS,5X14 | 220 | 220D0514 | 8 | ||
| SCREW-PAN-WS-CROS | 223 | 223C0420 | 1 | ||
| SCREW-PAN-WS-CROS | 223A | 223C0510 | 8 |
| LEVER,STARTER | |
| REF # | 13168 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,THROTTLE CABLE | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CARBURETOR STAY,UPP | |
| REF # | 13169A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CARBURETOR STAY,LWR,6MM | |
| REF # | 13169B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,STARTER CABLE | |
| REF # | 13169C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARBURETOR-ASSY | |
| REF # | 15001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARBURETOR-ASSY | |
| REF # | 15001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CARBURETOR,LH,OUTSIDE | |
| REF # | 15002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARBURETOR,LH,INSIDE | |
| REF # | 15002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARBURETOR,RH,INSIDE | |
| REF # | 15002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARBURETOR,RH,OUTSIDE | |
| REF # | 15002C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARBURETOR,LH,OUTSIDE | |
| REF # | 15002D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CARBURETOR,LH,INSIDE | |
| REF # | 15002E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CARBURETOR,RH,INSIDE | |
| REF # | 15002F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CARBURETOR,RH,OUTSIDE | |
| REF # | 15002G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SCREW-THROTTLE STOP | |
| REF # | 16021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,THROTTLE ADJUST | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| FITTING,FUEL,T-TYPE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING,FUEL,I-TYPE | |
| REF # | 92005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FITTING,T-TYPE | |
| REF # | 92005B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING,T-TYPE | |
| REF # | 92005C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X10 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.1X11X0.8,POLYACETAL | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,STOP SPRING | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FUEL TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O,FUEL FITTING | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| TUBE,FUEL,7.3X12.5X220 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,7X11X100 | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,6.5X9.5X320 | |
| REF # | 92059B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | US |
| REMARKS | |
| TUBE,5X9X340 | |
| REF # | 92059C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,7X11X220 | |
| REF # | 92059D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| PLUG,12X25 | |
| REF # | 92068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| SPRING,THROTTLE STOP SCREW | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE ADJUST UPP | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE ADJUST LWR | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE ADJUST CNT | |
| REF # | 92081C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,STARTER LEVER | |
| REF # | 92081D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,5X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS | |
| REF # | 223A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
