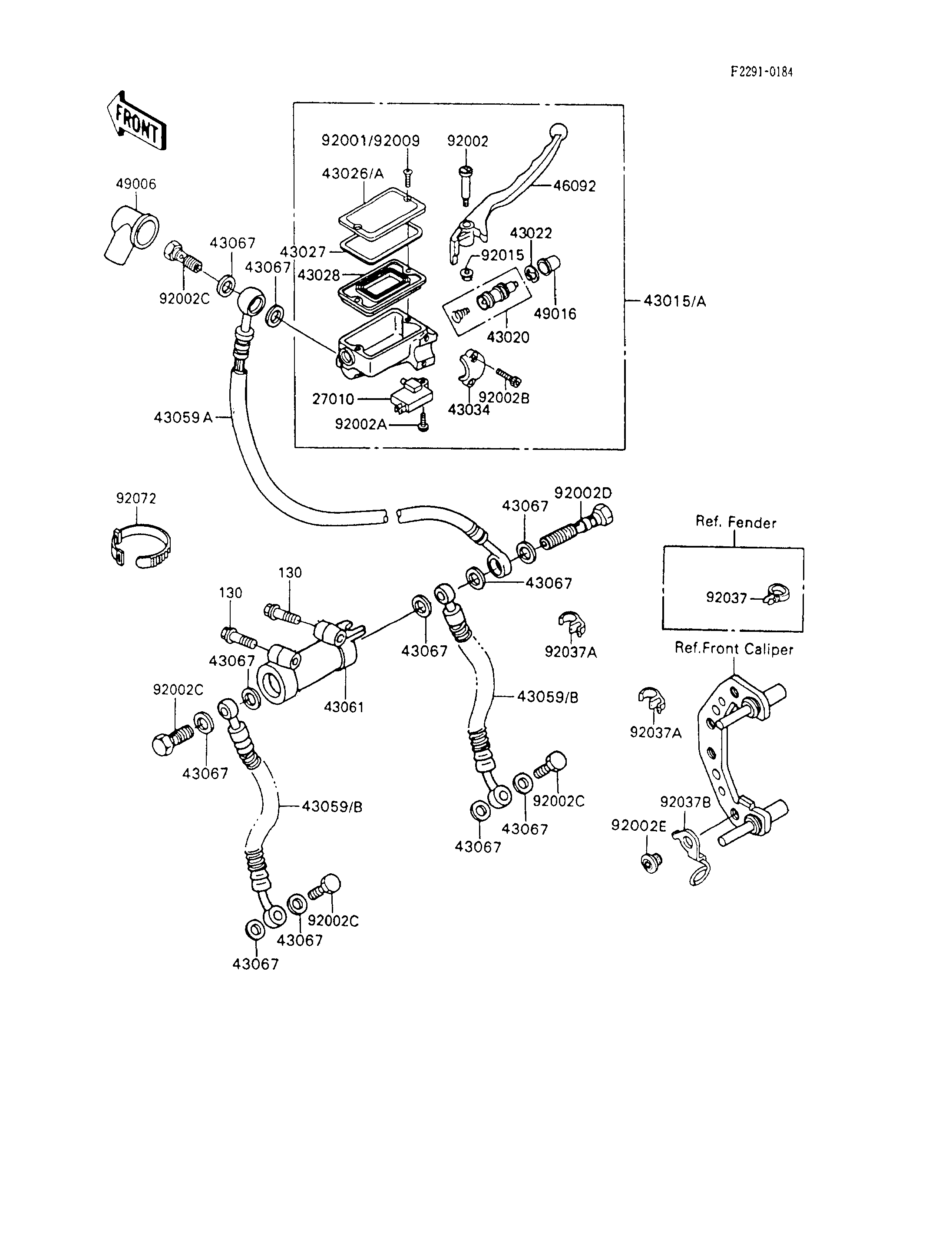

1992 Ninja® 600R - Front Master Cylinder
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
CYLINDER-ASSY-MASTER,FR | 43015A | 43015-1501 | 1 | ||
PISTON-COMP-BRAKE,FR | 43020 | 43020-1054 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
CAP-BRAKE | 43026A | 43026-1076 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1055 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1058 | 1 | ||
HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1053 | 1 | ||
HOSE-BRAKE,FR | 43059A | 43059-1616 | 1 | ||
HOSE-BRAKE,FR | 43059B | 43059-1647 | 2 | ||
JOINT-BRAKE | 43061 | 43061-1002 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 11 | ||
LEVER-GRIP,FRONT BRAKE | 46092 | 46092-1117 | 1 | ||
BOOT,DUST | 49006 | 49006-1040 | 1 | ||
COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
BOLT,LEVER SET | 92002 | 92002-1322 | 1 | ||
BOLT,SCREW,4X12 | 92002A | 92002-1323 | 1 | ||
BOLT,SOCKET,6X20 | 92002B | 92002-1324 | 2 | ||
BOLT,OIL,L=23 | 92002C | 92002-1888 | 4 | ||
BOLT,OIL,L=37 | 92002D | 92002-1909 | 1 | ||
BOLT,10X10 | 92002E | 92002-1973 | 1 | ||
SCREW,4MM | 92009 | 92009-1458 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1233 | 1 | ||
CLAMP,HOSE | 92037 | 92037-1827 | 2 | ||
CLAMP,HOSE | 92037A | 92037-1858 | 2 | ||
CLAMP,CABLE | 92037B | 92037-1917 | 1 | ||
BAND,L=186 | 92072 | 92072-056 | 1 | ||
BOLT-FLANGED,6X35 | 130 | 130G0635 | 2 |
