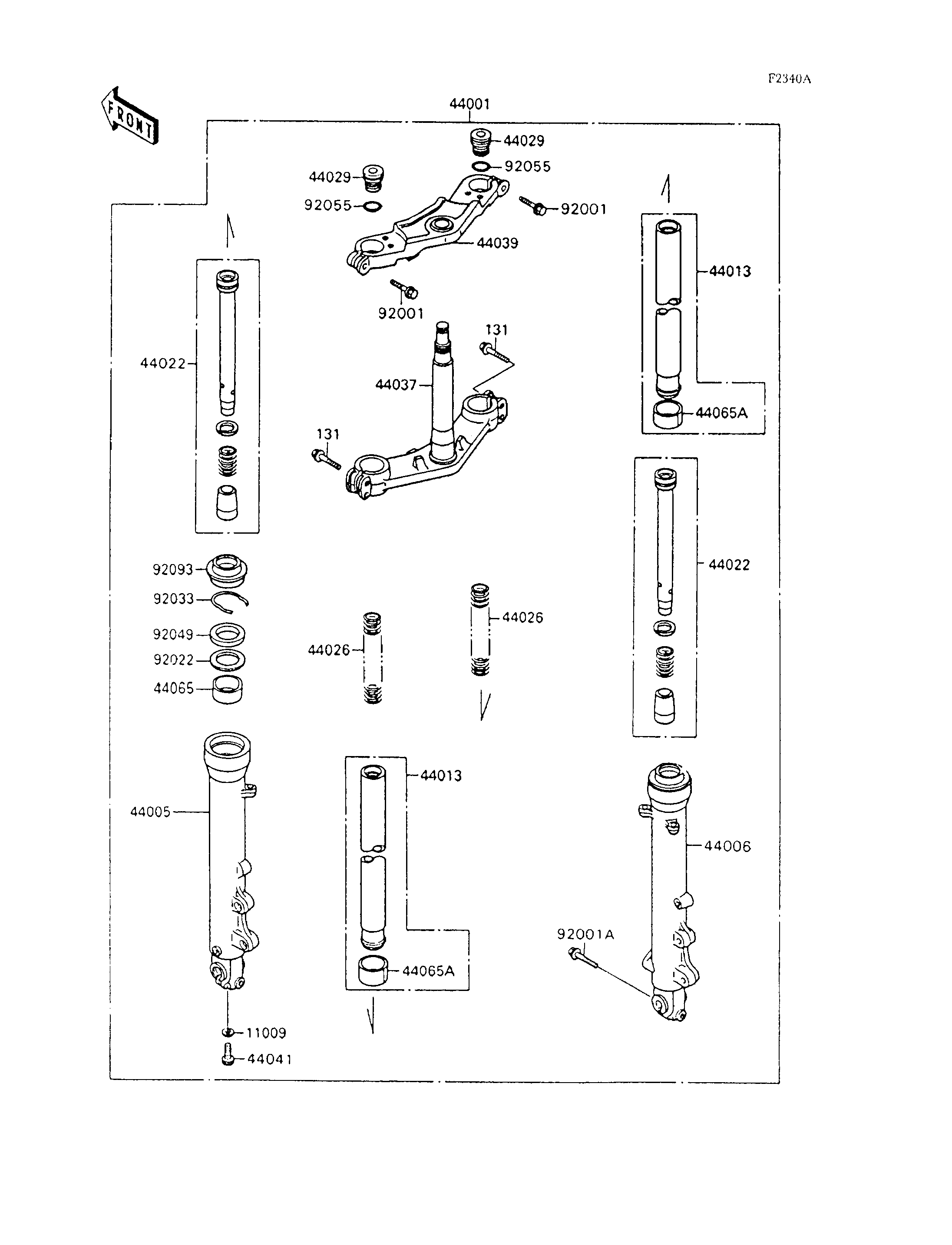

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,PIPE-COMP-SUSP | 11009 | 11009-1325 | 2 | ||
FORK-FRONT | 44001 | 44001-1865 | 1 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-1328 | 1 | ||
PIPE-RIGHT FORK OUTER | 44006 | 44006-1326 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1393 | 2 | ||
CYLINDER-FORK | 44022 | 44022-1293 | 2 | ||
SPRING-FRONT FORK | 44026 | 44026-1549 | 2 | ||
SEAT-FORK SPRING | 44029 | 44029-1126 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1213 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1150 | 1 | ||
BOLT,SOCKET,FORK CYLINDER | 44041 | 44041-040 | 2 | ||
BUSHING-FRONT FORK,OUTER TUBE | 44065 | 44065-1091 | 2 | ||
BUSHING-FRONT FORK,INNER PIPE | 44065A | 44065-1092 | 2 | ||
BOLT,FLANGED,8X40 | 92001 | 92001-1188 | 2 | ||
BOLT,FLANGED,8X45 | 92001A | 92001-1205 | 1 | ||
WASHER | 92022 | 92022-1242 | 2 | ||
RING-SNAP,FORK | 92033 | 92033-1047 | 2 | ||
SEAL-OIL,FORK OUTER TUBE | 92049 | 92049-1418 | 2 | ||
RING-O,FORK TOP | 92055 | 92055-1380 | 2 | ||
SEAL,FORK OUTER TUBE | 92093 | 92093-1360 | 2 | ||
BOLT-FLANGED,8X40 | 131 | 131G0840 | 4 |
GASKET,PIPE-COMP-SUSP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FORK-FRONT | |
REF # | 44001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-LEFT FORK OUTER | |
REF # | 44005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-RIGHT FORK OUTER | |
REF # | 44006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-FORK INNER | |
REF # | 44013 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CYLINDER-FORK | |
REF # | 44022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING-FRONT FORK | |
REF # | 44026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAT-FORK SPRING | |
REF # | 44029 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-FORK UNDER | |
REF # | 44037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-FORK UPPER | |
REF # | 44039 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,FORK CYLINDER | |
REF # | 44041 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING-FRONT FORK,OUTER TUBE | |
REF # | 44065 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING-FRONT FORK,INNER PIPE | |
REF # | 44065A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X40 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X45 | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP,FORK | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,FORK OUTER TUBE | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,FORK TOP | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,FORK OUTER TUBE | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X40 | |
REF # | 131 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
