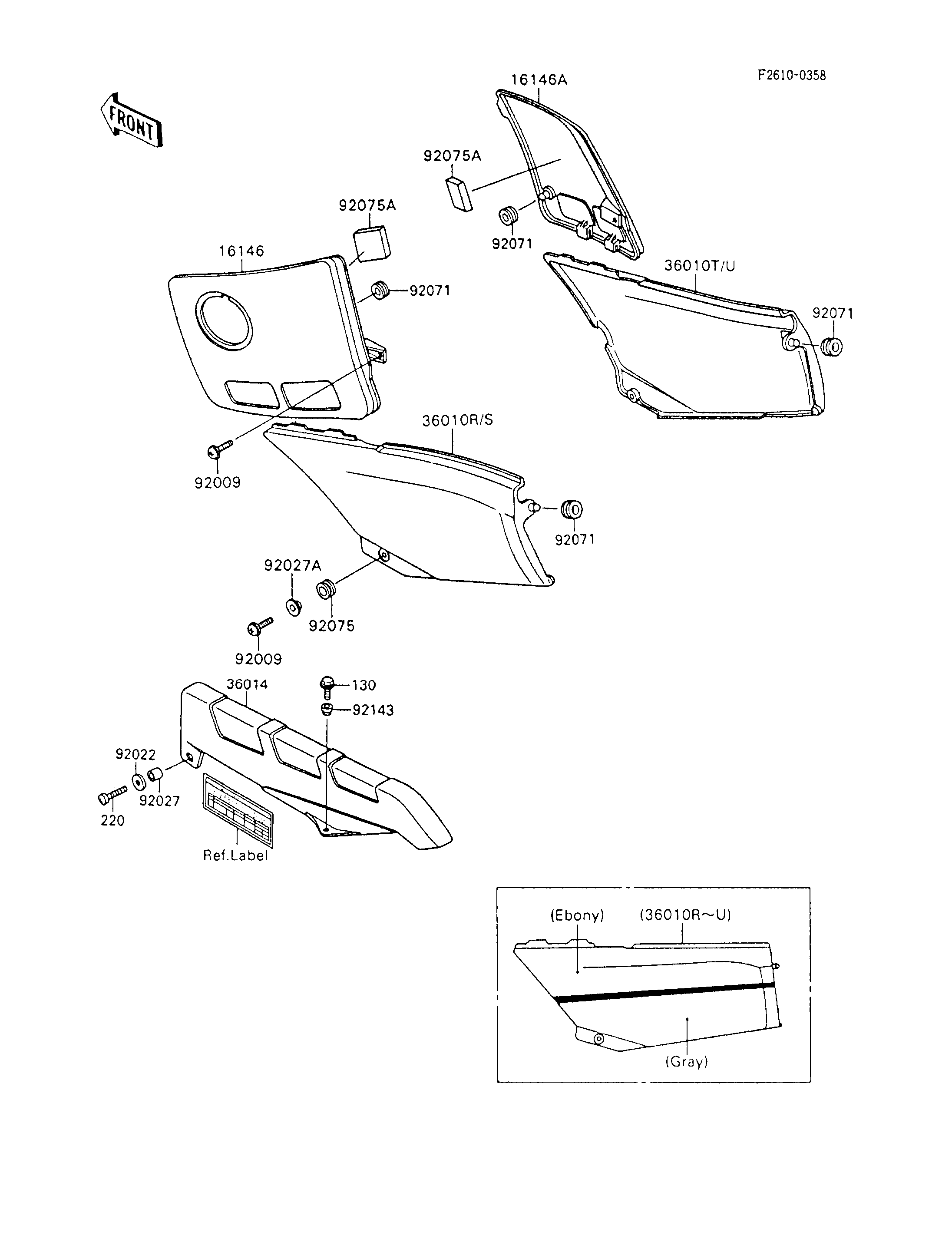

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-ASSY,KNEEGRIP,LH,BLACK 16146 16146-1079-MA 1
COVER-ASSY,KNEEGRIP,RH,BLACK 16146A 16146-1080-MA 1
COVER-SIDE,LH,EBONY/GRAY 36010S 36010-5276-SS 1
COVER-SIDE,RH,EBONY/GRAY 36010U 36010-5277-SS 1
CASE-CHAIN 36014 36014-1145 1
SCREW,6X18,BLACK 92009 92009-1181 4
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 1
COLLAR,6.8X10X16 92027 92027-169 1
COLLAR,L=9.1,BLACK 92027A 92027-1935 2
GROMMET 92071 92071-056 4
DAMPER 92075 92075-1634 2
DAMPER,50X50X10 92075A 92075-1979 2
COLLAR,L=6.6 92143 92143-1088 1
BOLT-FLANGED,6X14,BLACK 130 130J0614 1
SCREW-PAN-CROS,6X30,BLACK 220 220C0630 1
