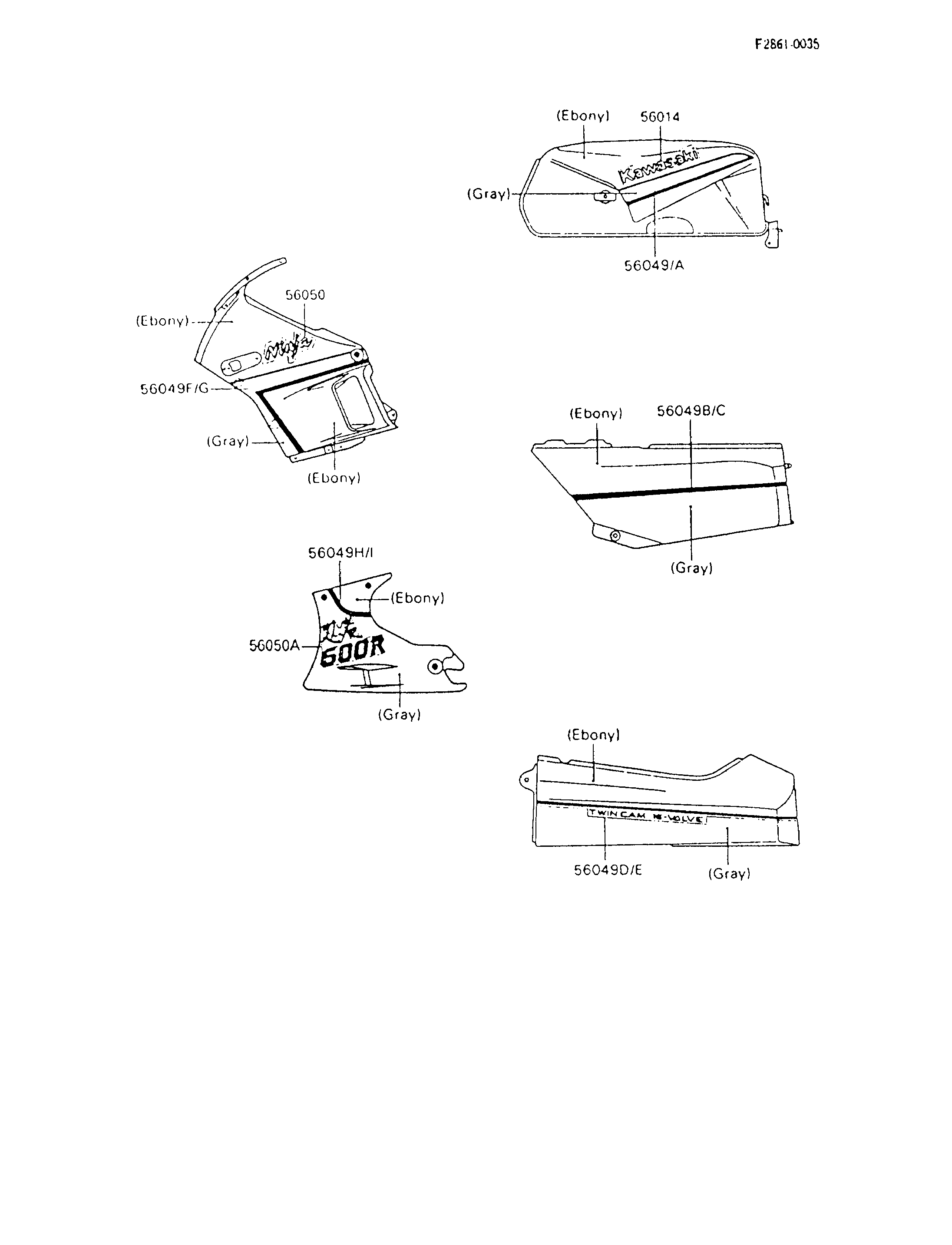

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,KAWASAKI 56014 56014-1231 2
PATTERN,FUEL TANK,LH 56049 56049-1154 1
PATTERN,FUEL TANK,RH 56049A 56049-1155 1
PATTERN,SIDE COVER,LH 56049B 56049-1156 1
PATTERN,SIDE COVER,RH 56049C 56049-1157 1
PATTERN,SEAT COVER,LH 56049D 56049-1158 1
PATTERN,SEAT COVER,RH 56049E 56049-1159 1
PATTERN,UPP COWLING,LH 56049F 56049-1160 1
PATTERN,UPP COWLING,RH 56049G 56049-1161 1
PATTERN,LWR COWLING,RH 56049H 56049-1163 1
PATTERN,LWR COWLING,LH 56049I 56049-1313 1
MARK,NINJA 56050 56050-1163 2
MARK,NINJA/600R 56050A 56050-1392 2
