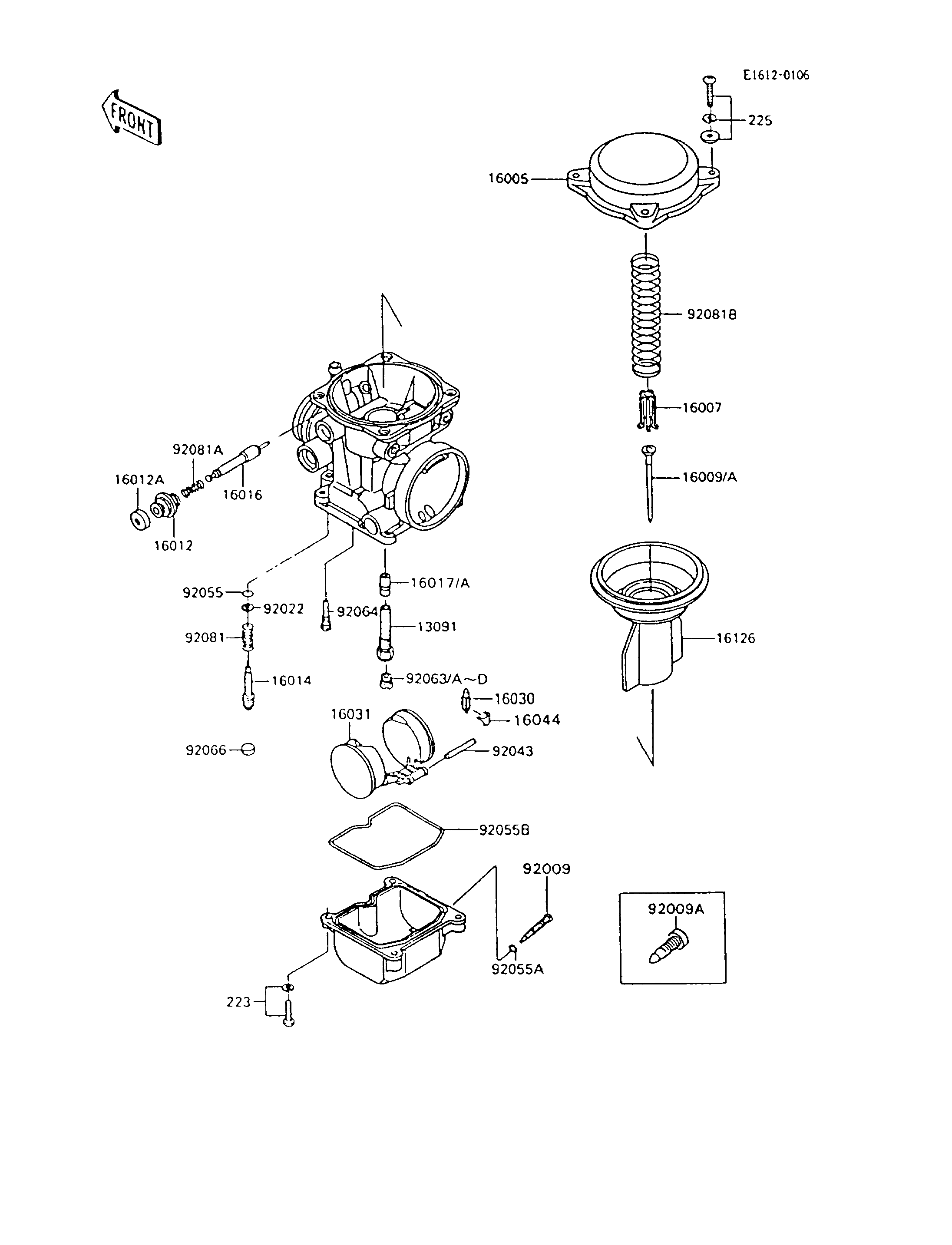

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER,NEEDLE JET | 13091 | 13091-1406 | 4 | ||
TOP-CHAMBER,MIXING | 16005 | 16005-1056 | 4 | ||
SEAT-SPRING,THROTTLE VALVE | 16007 | 16007-1120 | 4 | ||
NEEDLE-JET,N52Q | 16009 | 16009-1354 | 4 | CNUS | |
NEEDLE-JET,N52R | 16009A | 16009-1355 | 4 | CA | |
CAP-STARTER PLUNGER | 16012 | 16012-1051 | 4 | ||
CAP-STARTER PLUNGER | 16012A | 16012-1052 | 4 | ||
SCREW-PILOT AIR | 16014 | 16014-1054 | 4 | ||
PLUNGER,STARTER | 16016 | 16016-1061 | 4 | ||
JET-NEEDLE | 16017 | 16017-1285 | 4 | CN | |
JET-NEEDLE,01D34 | 16017A | 16017-1286 | 4 | CAUS | |
VALVE-FLOAT | 16030 | 16030-1007 | 4 | ||
FLOAT | 16031 | 16031-1056 | 4 | ||
CLAMP,FLOAT VALVE | 16044 | 16044-007 | 4 | ||
VALVE,VACUUM | 16126 | 16126-1160 | 4 | ||
SCREW,DRAIN,M6X1.0 | 92009 | 92009-1095 | 4 | ||
SCREW,DRAIN,M6X0.75 | 92009A | 92009-1551 | 4 | CAUS | |
WASHER,PLAIN | 92022 | 92022-1003 | 4 | ||
PIN,FLOAT | 92043 | 92043-1207 | 4 | ||
RING-O,PILOT ADJUST | 92055 | 92055-1002 | 4 | ||
RING-O,DRAIN SCREW | 92055A | 92055-1053 | 4 | ||
RING-O,FLOAT CHAMBER | 92055B | 92055-1222 | 4 | ||
JET-MAIN,2ND,#100 | 92063 | 92063-1008 | 4 | (RACING USE ONLY) | |
JET-MAIN,2ND,#105 | 92063A | 92063-1009 | 4 | ||
JET-MAIN,#110 | 92063B | 92063-1114 | 4 | (RACING USE ONLY) | |
JET-MAIN,#102 | 92063C | 92063-1115 | 4 | (RACING USE ONLY) | |
JET-MAIN,#108 | 92063D | 92063-1116 | 4 | (RACING USE ONLY) | |
JET-PILOT,#35 | 92064 | 92064-1035 | 4 | ||
PLUG,PILOT AIR SCREW,6.9X2 | 92066 | 92066-1051 | 4 | CAUS | |
SPRING,PILOT ADJUST SCREW | 92081 | 92081-1002 | 4 | ||
SPRING,STARTER PLUNGER | 92081A | 92081-1761 | 4 | ||
SPRING,VACUUM VALVE | 92081B | 92081-1775 | 4 | ||
SCREW-PAN-WS-CROS | 223 | 223C0416 | 16 | ||
SCREW-PAN-WSP-CROS | 225 | 225C0418 | 15 |
HOLDER,NEEDLE JET | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
TOP-CHAMBER,MIXING | |
REF # | 16005 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SEAT-SPRING,THROTTLE VALVE | |
REF # | 16007 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NEEDLE-JET,N52Q | |
REF # | 16009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | CNUS |
REMARKS |
NEEDLE-JET,N52R | |
REF # | 16009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | CA |
REMARKS |
CAP-STARTER PLUNGER | |
REF # | 16012 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CAP-STARTER PLUNGER | |
REF # | 16012A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-PILOT AIR | |
REF # | 16014 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLUNGER,STARTER | |
REF # | 16016 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
JET-NEEDLE | |
REF # | 16017 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | CN |
REMARKS |
JET-NEEDLE,01D34 | |
REF # | 16017A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | CAUS |
REMARKS |
VALVE-FLOAT | |
REF # | 16030 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
FLOAT | |
REF # | 16031 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,FLOAT VALVE | |
REF # | 16044 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
VALVE,VACUUM | |
REF # | 16126 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,DRAIN,M6X1.0 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,DRAIN,M6X0.75 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | CAUS |
REMARKS |
WASHER,PLAIN | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN,FLOAT | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,PILOT ADJUST | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,DRAIN SCREW | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,FLOAT CHAMBER | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
JET-MAIN,2ND,#100 | |
REF # | 92063 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | (RACING USE ONLY) |
JET-MAIN,2ND,#105 | |
REF # | 92063A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
JET-MAIN,#110 | |
REF # | 92063B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | (RACING USE ONLY) |
JET-MAIN,#102 | |
REF # | 92063C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | (RACING USE ONLY) |
JET-MAIN,#108 | |
REF # | 92063D |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | (RACING USE ONLY) |
JET-PILOT,#35 | |
REF # | 92064 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLUG,PILOT AIR SCREW,6.9X2 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | CAUS |
REMARKS |
SPRING,PILOT ADJUST SCREW | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING,STARTER PLUNGER | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING,VACUUM VALVE | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-PAN-WS-CROS | |
REF # | 223 |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
SCREW-PAN-WSP-CROS | |
REF # | 225 |
---|---|
PART NUMBER | |
QUANTITY | 15 |
DESTINATION | |
REMARKS |
