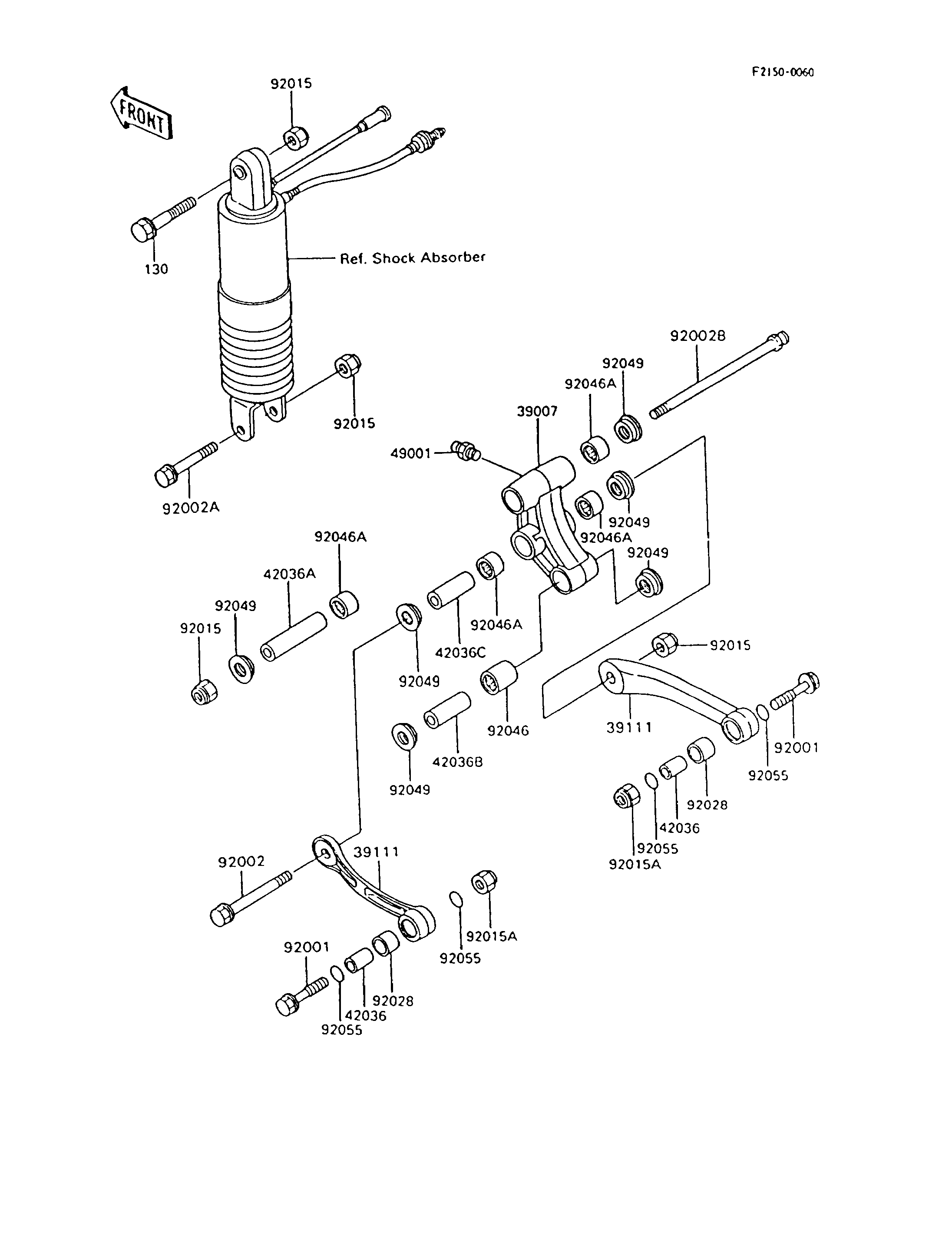

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ARM-SUSP,UNI TRAK | 39007 | 39007-1126 | 1 | ||
ROD-TIE,SUSPENSION | 39111 | 39111-1092 | 2 | ||
SLEEVE,12.1X20X22 | 42036 | 42036-1076 | 2 | ||
SLEEVE,12.1X20X74 | 42036A | 42036-1102 | 1 | ||
SLEEVE,12.1X20X40 | 42036B | 42036-1108 | 1 | ||
SLEEVE,12.1X20X50 | 42036C | 42036-1111 | 1 | ||
NIPPLE-GREASE | 49001 | 49001-1051 | 3 | ||
BOLT,12X45 | 92001 | 92001-1939 | 2 | ||
BOLT,FLANGED,12X85 | 92002 | 92002-1463 | 1 | ||
BOLT,FLANGED,12X60 | 92002A | 92002-1464 | 1 | ||
BOLT,SUSPENSION ARM | 92002B | 92002-1490 | 1 | ||
NUT,LOCK,12MM,BLACK | 92015 | 92015-1190 | 4 | ||
NUT,12MM | 92015A | 92015-1375 | 2 | ||
BUSHING | 92028 | 92028-1599 | 2 | ||
BEARING-NEEDLE,BM202726 | 92046 | 92046-1110 | 1 | ||
BEARING-NEEDLE,BM202715 | 92046A | 92046-1112 | 4 | ||
SEAL-OIL,ARM,CNT | 92049 | 92049-1109 | 6 | ||
RING-O,19.8X2.2 | 92055 | 92055-1215 | 4 | ||
BOLT-FLANGED | 130 | 130G1250 | 1 |
ARM-SUSP,UNI TRAK | |
REF # | 39007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-TIE,SUSPENSION | |
REF # | 39111 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SLEEVE,12.1X20X22 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SLEEVE,12.1X20X74 | |
REF # | 42036A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,12.1X20X40 | |
REF # | 42036B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,12.1X20X50 | |
REF # | 42036C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NIPPLE-GREASE | |
REF # | 49001 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,12X45 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,12X85 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,12X60 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SUSPENSION ARM | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,12MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,12MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,BM202726 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,BM202715 | |
REF # | 92046A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SEAL-OIL,ARM,CNT | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
RING-O,19.8X2.2 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
