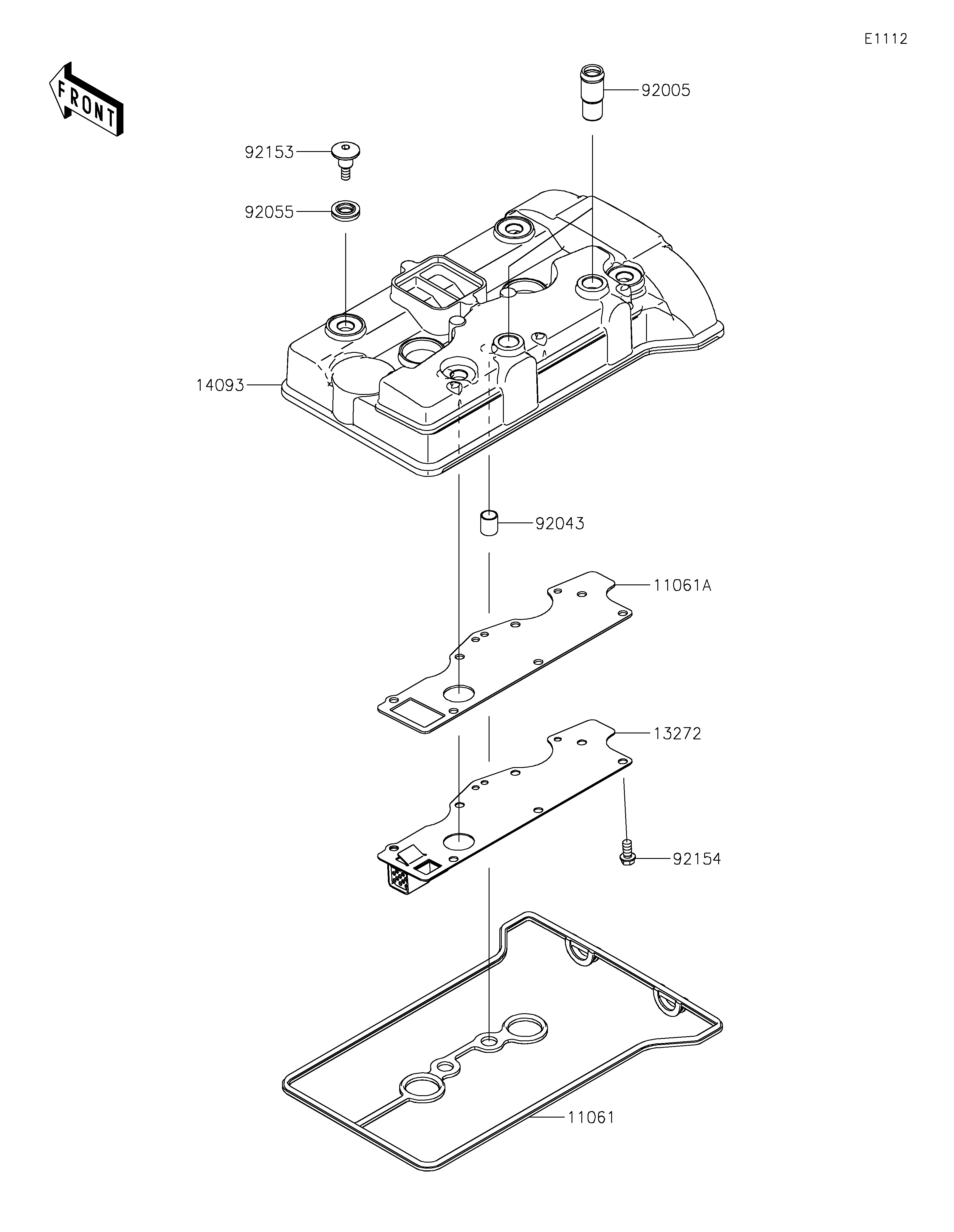

11061
11061A
13272
14093
92005
92043
92055
92153
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,HEAD COVER 11061 11061-1313 1
GASKET,BREATHER PLATE 11061A 11061-1314 1
PLATE,BREATHER 13272 13272-2685 1
COVER,HEAD 14093 14093-0848 1
FITTING,BREATHER 92005 92005-0968 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O 92055 92055-0785 4
BOLT,SOCKET,6X22.5 92153 92153-1779 4
BOLT,FLANGED-SMALL,6X12 92154 92154-1888 7
