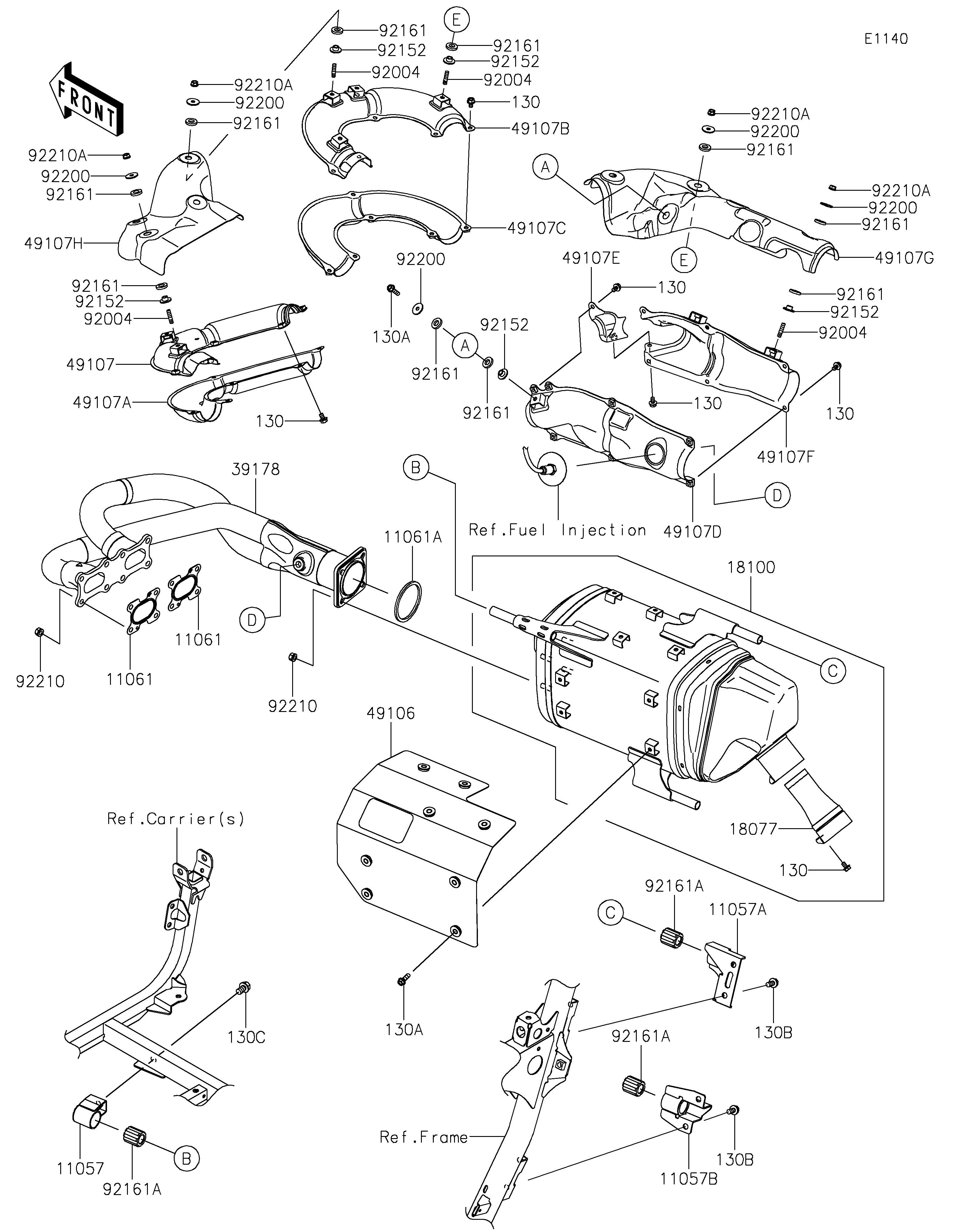

Parts Diagrams |
11057
11057A
11057B
11061
11061
11061A
18077
18100
39178
49106
49107
49107A
49107B
49107C
49107D
49107E
49107F
49107G
49107H
92004
92004
92004
92004
92152
92152
92152
92152
92152
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161A
92161A
92161A
92200
92200
92200
92200
92200
92210
92210
92210A
92210A
92210A
92210A
130
130
130
130
130
130
130A
130A
130B
130B
130C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FRM-MUFFLER/FR | 11057 | 11057-3721 | 1 | ||
| BRACKET,FRM-MUFFLER/RR/UPP | 11057A | 11057-3722 | 1 | ||
| BRACKET,FRM-MUFFLER/RR/LWR | 11057B | 11057-3723 | 1 | ||
| GASKET,CYL.HEAD-EXHAUST PIPE | 11061 | 11061-1310 | 2 | ||
| GASKET,EXHAUST PIPE-MUFFLER | 11061A | 11061-1311 | 1 | ||
| ARRESTER-SPARK | 18077 | 18077-0045 | 1 | ||
| BODY-ASSY-MUFFLER | 18100 | 18100-0605 | 1 | ||
| MANIFOLD-COMP-EXHAUST | 39178 | 39178-0389 | 1 | ||
| COVER-MUFFLER | 49106 | 49106-0847 | 1 | ||
| COVER-EXHAUST PIPE,#1,UPP | 49107 | 49107-0814 | 1 | ||
| COVER-EXHAUST PIPE,#1,LWR | 49107A | 49107-0815 | 1 | ||
| COVER-EXHAUST PIPE,#2,UPP | 49107B | 49107-0816 | 1 | ||
| COVER-EXHAUST PIPE,#2,LWR | 49107C | 49107-0817 | 1 | ||
| COVER-EXHAUST PIPE,LH | 49107D | 49107-0819 | 1 | ||
| COVER-EXHAUST PIPE | 49107E | 49107-0820 | 1 | ||
| COVER-EXHAUST PIPE,RH | 49107F | 49107-0825 | 1 | ||
| COVER-EXHAUST PIPE | 49107G | 49107-0829 | 1 | ||
| COVER-EXHAUST PIPE | 49107H | 49107-0836 | 1 | ||
| STUD,6X18 | 92004 | 92004-0799 | 8 | ||
| COLLAR | 92152 | 92152-0423 | 9 | ||
| DAMPER | 92161 | 92161-0319 | 18 | ||
| DAMPER | 92161A | 92161-2274 | 3 | ||
| WASHER,6.5X22X1.6 | 92200 | 92200-2324 | 9 | ||
| NUT,8MM | 92210 | 92210-1242 | 12 | ||
| NUT,6MM | 92210A | 92210-1787 | 8 | ||
| BOLT-FLANGED,6X10 | 130 | 130BD0610 | 21 | ||
| BOLT-FLANGED,6X20 | 130A | 130BD0620 | 9 | ||
| BOLT-FLANGED,8X16 | 130B | 130CA0816 | 4 | ||
| BOLT-FLANGED,10X16 | 130C | 130CA1016 | 1 |
| BRACKET,FRM-MUFFLER/FR | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FRM-MUFFLER/RR/UPP | |
| REF # | 11057A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FRM-MUFFLER/RR/LWR | |
| REF # | 11057B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYL.HEAD-EXHAUST PIPE | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE-MUFFLER | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARRESTER-SPARK | |
| REF # | 18077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-ASSY-MUFFLER | |
| REF # | 18100 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MANIFOLD-COMP-EXHAUST | |
| REF # | 39178 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER | |
| REF # | 49106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,#1,UPP | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,#1,LWR | |
| REF # | 49107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,#2,UPP | |
| REF # | 49107B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,#2,LWR | |
| REF # | 49107C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,LH | |
| REF # | 49107D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,RH | |
| REF # | 49107F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,6X18 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X22X1.6 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 21 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X20 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X16 | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
