Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13031
13031A
13234
13234A
13251
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92028B
92028B
92028B
92028B
92139
92139
92139
92139
92139
92139
92139A
92139A
92139A
92139A
92139A
92139A
92139B
92139B
92139B
92139B
92139B
92139B
92139C
92139C
92139D
92139D
92139E
92139E
92154
92200
92200
92210

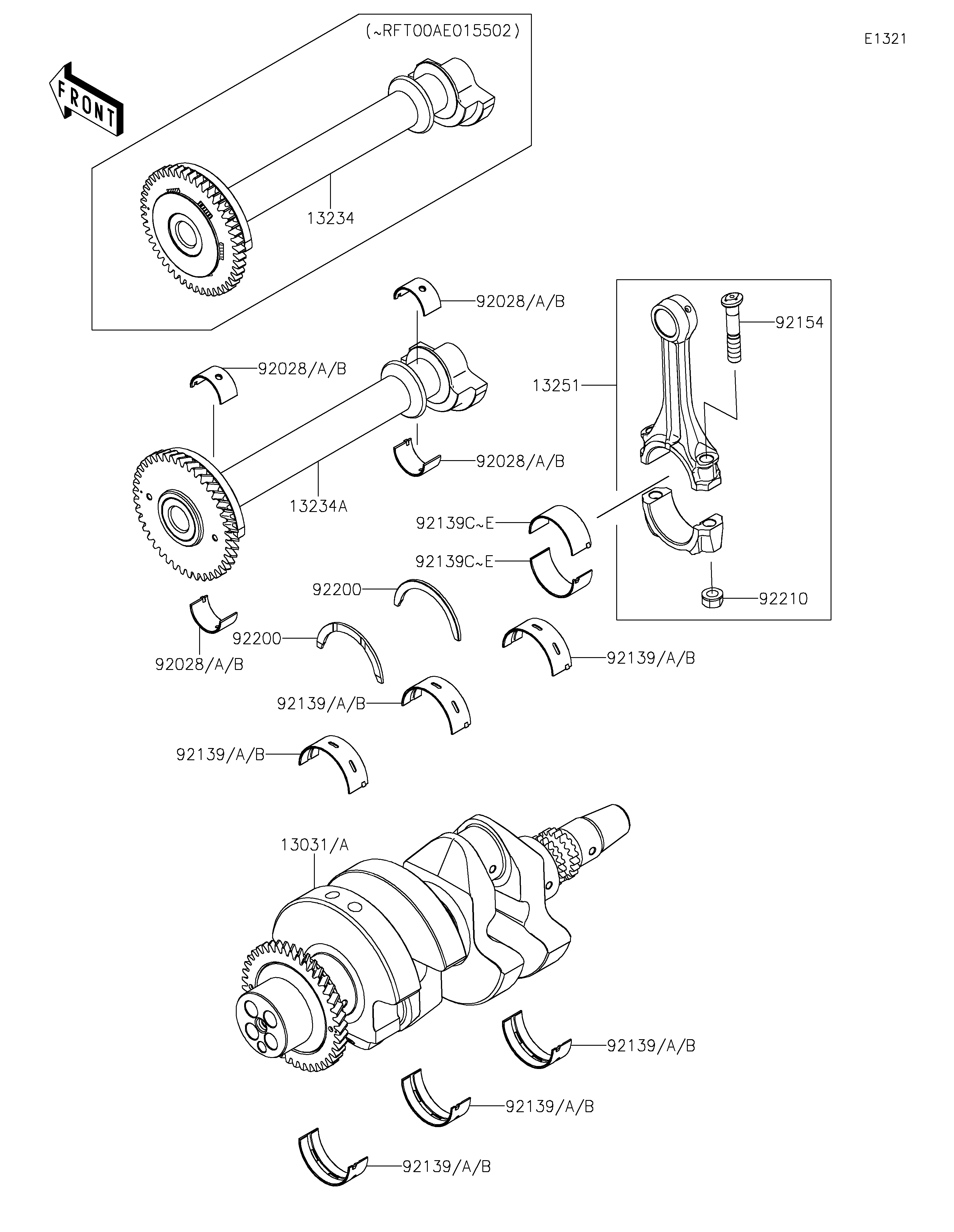

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKSHAFT-COMP | 13031 | 13031-0981 | 1 | ( - RFT00AE015502) | |
| CRANKSHAFT-COMP | 13031A | 13031-0997 | 1 | (RFT00AE015503 - ) | |
| SHAFT-COMP,BALANCER | 13234 | 13234-0606 | 1 | ( - RFT00AE015502) | |
| SHAFT-COMP,BALANCER | 13234A | 13234-0611 | 1 | (RFT00AE015503 - ) | |
| ROD-ASSY-CONNECTING,J | 13251 | 13251-0733-JJ | 2 | ||
| BUSHING,BALANCER SHAFT,BLUE | 92028 | 92028-1909 | 4 | ||
| BUSHING,BALANCER SHAFT,BLACK | 92028A | 92028-1910 | AR | ||
| BUSHING,BALANCER SHAFT,BROWN | 92028B | 92028-1911 | AR | ||
| BUSHING,CRANKSHAFT,BLUE | 92139 | 92139-0925 | 6 | ||
| BUSHING,CRANKSHAFT,BLACK | 92139A | 92139-0926 | AR | ||
| BUSHING,CRANKSHAFT,BROWN | 92139B | 92139-0927 | AR | ||
| BUSHING,CONNECTING ROD,YELLOW | 92139C | 92139-0968 | 4 | ||
| BUSHING,CONNECTING ROD,GREEN | 92139D | 92139-0969 | AR | ||
| BUSHING,CONNECTING ROD,PURPLE | 92139E | 92139-0970 | AR | ||
| BOLT,CONNECTING ROD | 92154 | 92154-3911 | 4 | ||
| WASHER,THRUST,T=2.5 | 92200 | 92200-2242 | 2 | ||
| NUT,FLANGED,9MM | 92210 | 92210-1673 | 4 |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - RFT00AE015502) |
| CRANKSHAFT-COMP | |
| REF # | 13031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (RFT00AE015503 - ) |
| SHAFT-COMP,BALANCER | |
| REF # | 13234 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - RFT00AE015502) |
| SHAFT-COMP,BALANCER | |
| REF # | 13234A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (RFT00AE015503 - ) |
| ROD-ASSY-CONNECTING,J | |
| REF # | 13251 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,BALANCER SHAFT,BLUE | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING,BALANCER SHAFT,BLACK | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,BALANCER SHAFT,BROWN | |
| REF # | 92028B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BLUE | |
| REF # | 92139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BLACK | |
| REF # | 92139A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANKSHAFT,BROWN | |
| REF # | 92139B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,YELLOW | |
| REF # | 92139C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,GREEN | |
| REF # | 92139D |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,PURPLE | |
| REF # | 92139E |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BOLT,CONNECTING ROD | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,T=2.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,9MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
