13095
13194
41036
92026
92154
480
610

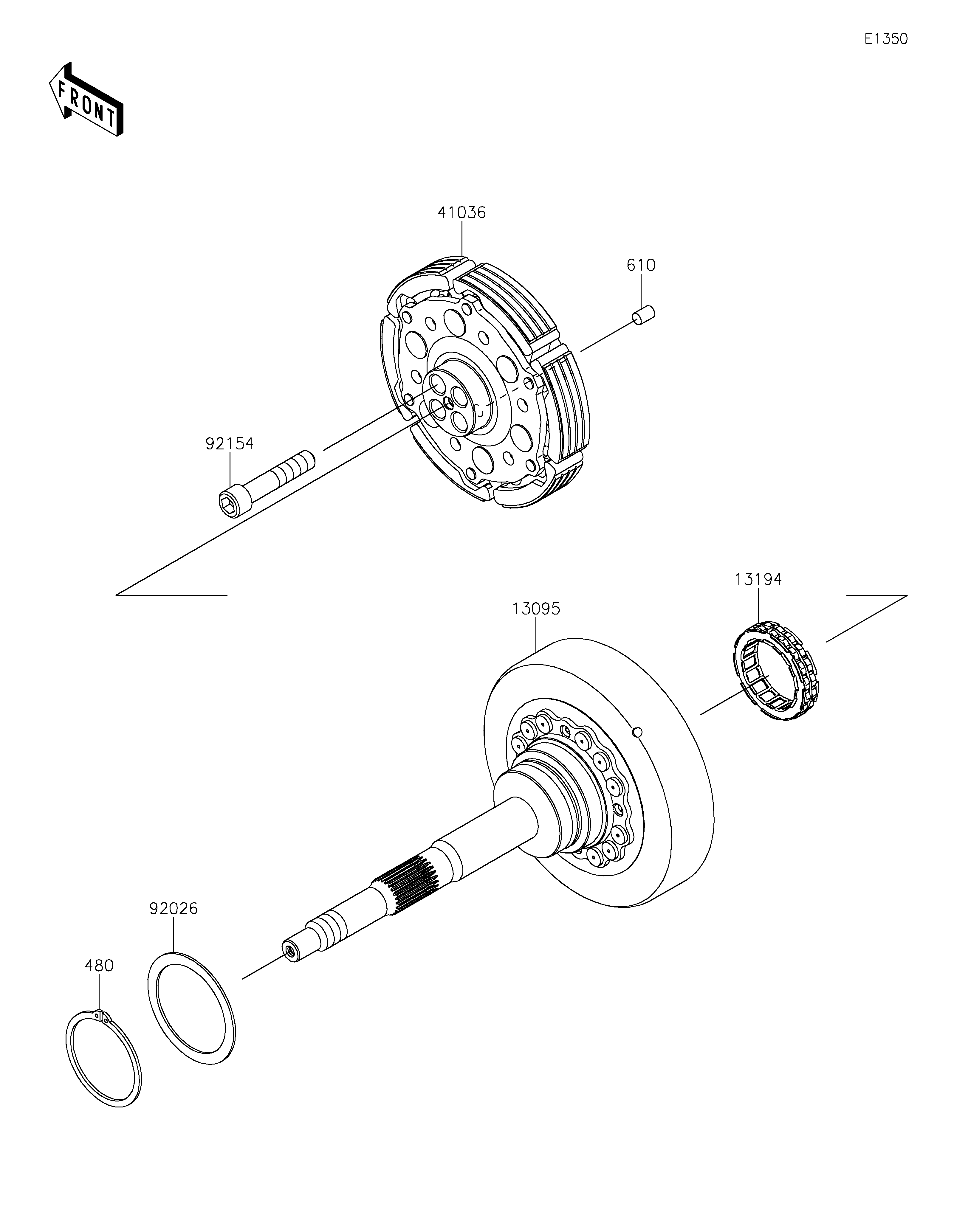

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOUSING-COMP-CLUTCH 13095 13095-0611 1
CLUTCH-ONEWAY 13194 13194-0022 1
HUB-ASSY 41036 41036-0872 1
SPACER 92026 92026-0710 1
BOLT,12X60 92154 92154-3926 4
CIRCLIP-TYPE-C,60MM 480 480J6000 1
ROLLER,8X12 610 610A0812 1
