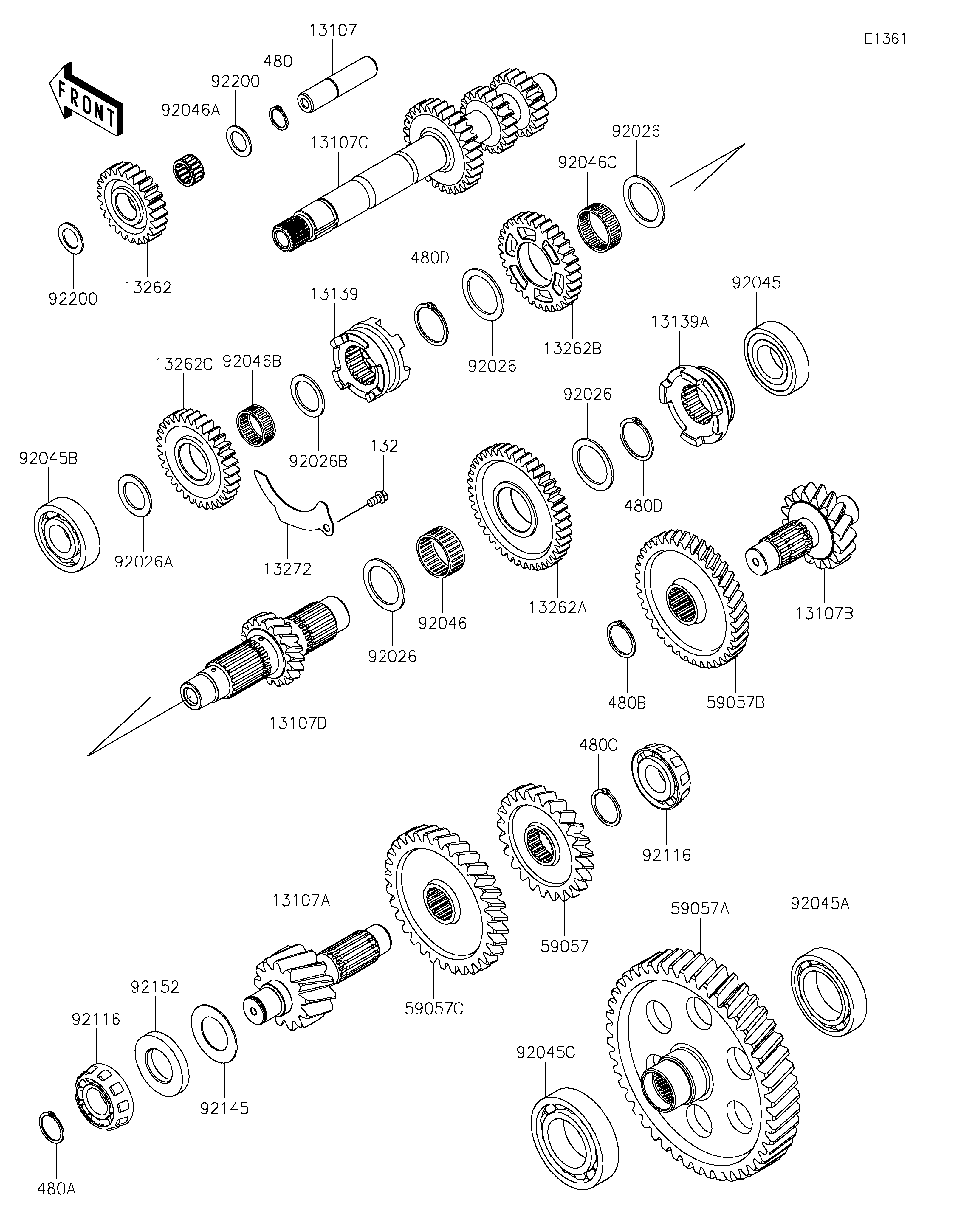

2021 TERYX KRX® 1000 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13107
13107A
13107B
13107C
13107D
13139
13139A
13262
13262A
13262B
13262C
13272
59057
59057A
59057B
59057C
92026
92026
92026
92026
92026A
92026B
92045
92045A
92045B
92045C
92046
92046A
92046B
92046C
92116
92116
92145
92152
92200
92200
132
480
480A
480B
480C
480D
480D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,REVERSE IDLER 13107 13107-0879 1
SHAFT,4TH,13T 13107A 13107-0882 1
SHAFT,3RD,16T 13107B 13107-0900 1
SHAFT,INPUT 13107C 13107-0931 1
SHAFT,2ND,18T 13107D 13107-0932 1
SHIFTER,HIGH&REV,19T 13139 13139-0029 1
SHIFTER,LOW,19T 13139A 13139-0030 1
GEAR,REVERSE IDLER,25T 13262 13262-1361 1
GEAR,LOW,42T 13262A 13262-1363 1
GEAR,REV,32T 13262B 13262-1364 1
GEAR,HIGH,32T 13262C 13262-1568 1
PLATE,OIL 13272 13272-2570 1
GEAR-HELICAL,24T 59057 59057-0027 1
GEAR-HELICAL,46T 59057A 59057-0029 1
GEAR-HELICAL,38T 59057B 59057-0031 1
GEAR-HELICAL,32T 59057C 59057-0032 1
SPACER,35.2X47X2 92026 92026-0765 4
SPACER,25.2X38X2 92026A 92026-0856 1
SPACER,28X38X2 92026B 92026-1299 1
BEARING-BALL,6206Z 92045 92045-0902 1
BEARING-BALL,6009 92045A 92045-0903 1
BEARING-BALL,6305ZUR3 92045B 92045-0926 1
BEARING-BALL,TMB209 92045C 92045-0935 1
BEARING-NEEDLE,35X40X17 92046 92046-0611 1
BEARING-NEEDLE 92046A 92046-0634 1
BEARING-NEEDLE 92046B 92046-0635 1
BEARING-NEEDLE 92046C 92046-0636 1
BEARING-ROLLER,HC30305JRLFT 92116 92116-0012 2
SPRING 92145 92145-1837 1
COLLAR 92152 92152-2526 1
WASHER,18.2X28X1.5 92200 92200-0716 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
CIRCLIP-TYPE-C,18MM 480 480J1800 1
CIRCLIP-TYPE-C,25MM 480A 480J2500 1
CIRCLIP 480B 480J2900 1
CIRCLIP-TYPE-C,30MM 480C 480J3000 1
CIRCLIP 480D 480J3500 2
