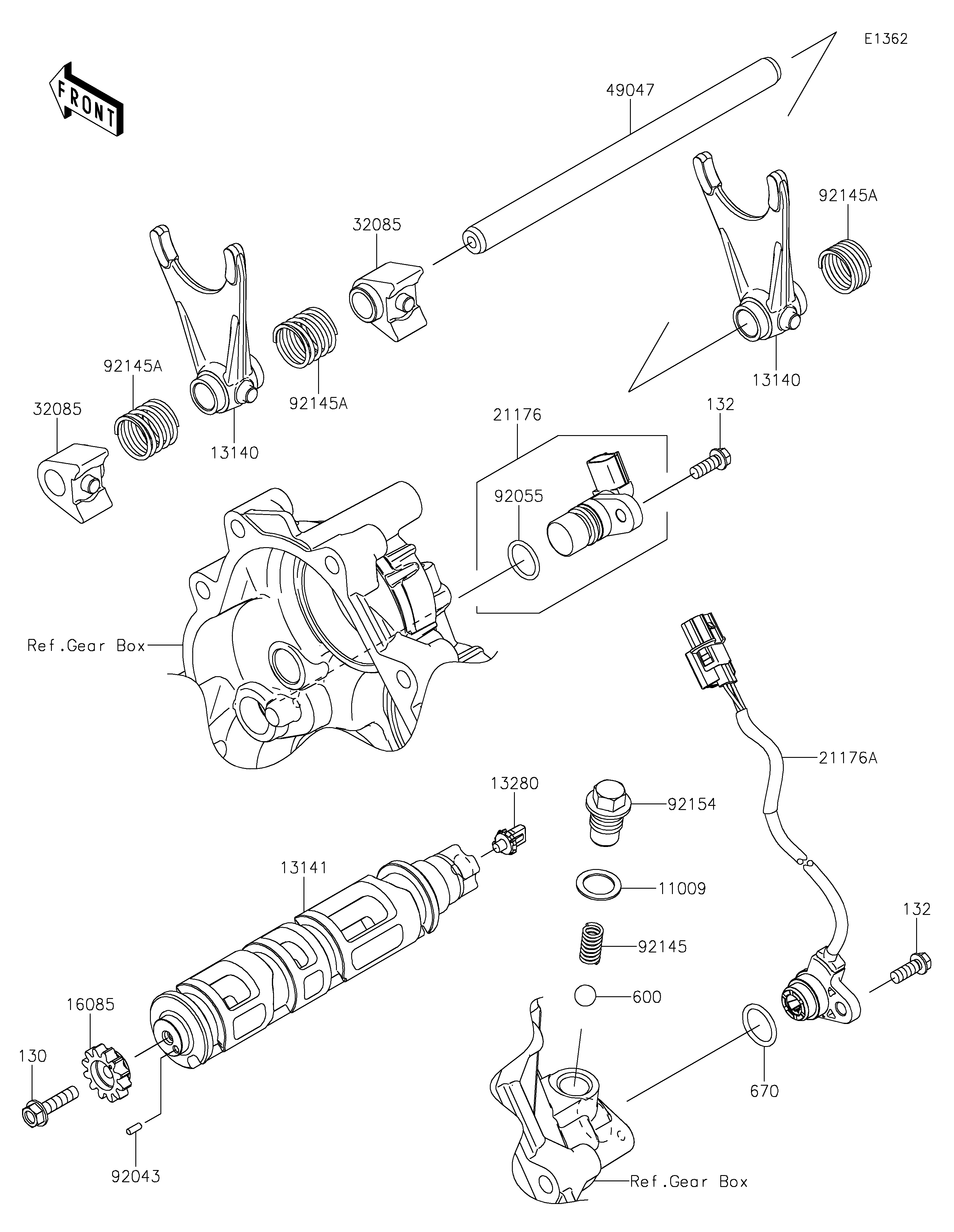

2021 TERYX KRX® 1000 - Gear Change Drum/Shift Fork(s)
11009
13140
13140
13141
13280
16085
21176
21176A
32085
32085
49047
92043
92055
92145
92145A
92145A
92145A
92154
130
132
132
600
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,15.5X22X1 | 11009 | 11009-1008 | 1 | ||
| FORK-SHIFT | 13140 | 13140-0673 | 2 | ||
| DRUM-CHANGE | 13141 | 13141-0601 | 1 | ||
| HOLDER | 13280 | 13280-0932 | 1 | ||
| GEAR,12T | 16085 | 16085-0681 | 1 | ||
| SENSOR,SPEED | 21176 | 21176-0891 | 1 | ||
| SENSOR,GEAR POSITION | 21176A | 21176-0910 | 1 | ||
| STOPPER | 32085 | 32085-0844 | 2 | ||
| ROD-SHIFT | 49047 | 49047-0641 | 1 | ||
| PIN,3X8 | 92043 | 92043-1716 | 1 | ||
| RING-O | 92055 | 92055-1639 | 1 | ||
| SPRING | 92145 | 92145-1590 | 1 | ||
| SPRING | 92145A | 92145-1836 | 3 | ||
| BOLT,CHANGE POSITION | 92154 | 92154-1366 | 1 | ||
| BOLT-FLANGED,6X25 | 130 | 130CA0625 | 1 | ||
| BOLT-FLANGED-SMALL,6X16 | 132 | 132BA0616 | 2 | ||
| BALL-STEEL,13/32 | 600 | 600A1300 | 1 | ||
| O RING,18MM | 670 | 670D2018 | 1 |
| GASKET,15.5X22X1 | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FORK-SHIFT | |
| REF # | 13140 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DRUM-CHANGE | |
| REF # | 13141 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,12T | |
| REF # | 16085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,SPEED | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,GEAR POSITION | |
| REF # | 21176A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER | |
| REF # | 32085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROD-SHIFT | |
| REF # | 49047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,3X8 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,CHANGE POSITION | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X16 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BALL-STEEL,13/32 | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,18MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
