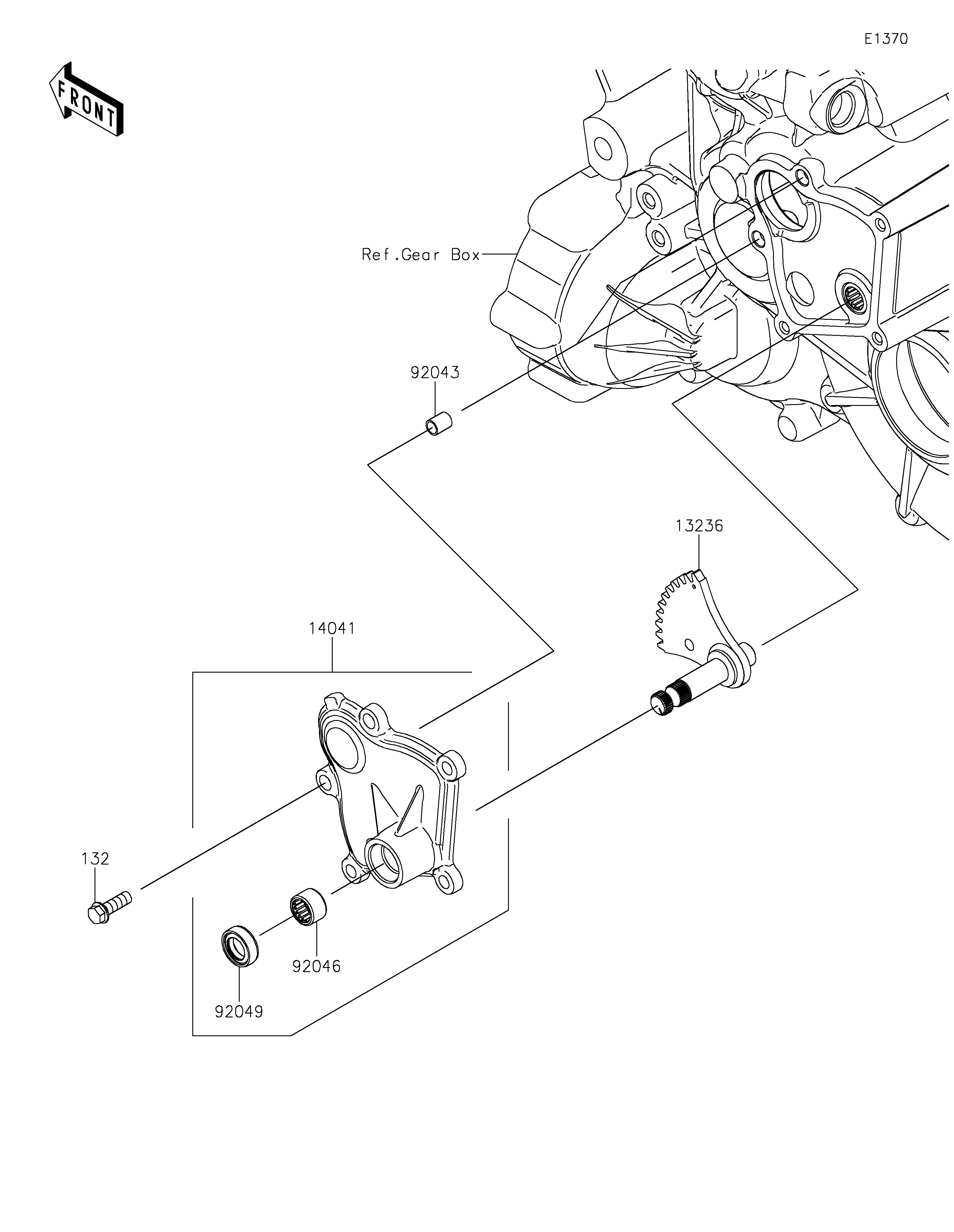

13236
14041
92043
92046
92049
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP 13236 13236-0816 1
COVER-COMP 14041 14041-0614 1
PIN,DOWEL,8X10 92043 92043-1302 2
BEARING-NEEDLE,HK1210FM 92046 92046-0034 1
SEAL-OIL,CLUTCH RELEASE 92049 92049-1475 1
BOLT-FLANGED-SMALL,6X18 132 132BA0618 5
