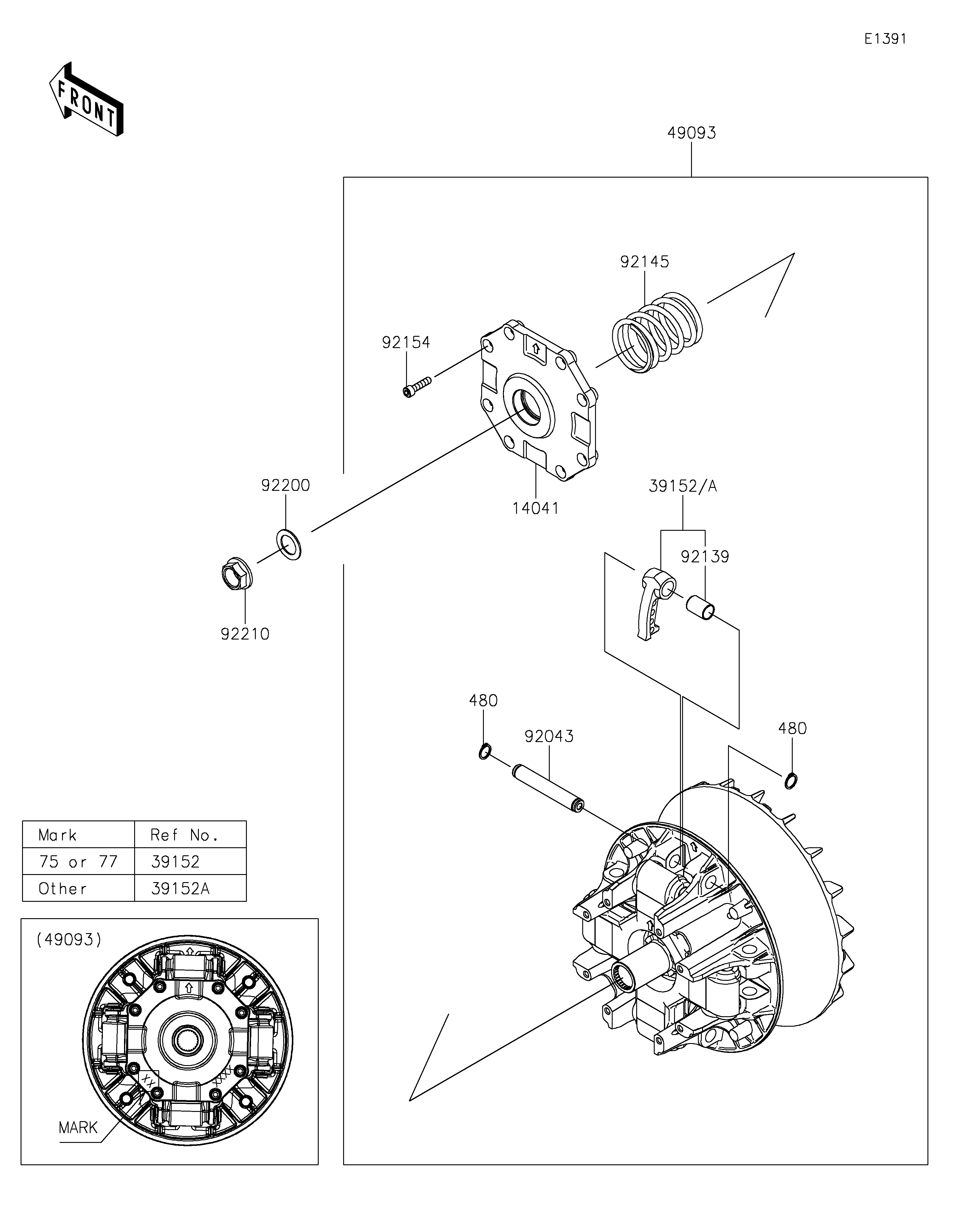

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-COMP 14041 14041-0622 1
WEIGHT-RAMP 39152 39152-0048 4
WEIGHT-RAMP 39152A 39152-0097 4
CONVERTER-ASSY-DRIVE 49093 49093-0077 1
PIN 92043 92043-0975 4
BUSHING 92139 92139-0933 4
SPRING 92145 92145-1855 1
BOLT-SOCKET,6X25 92154 92154-3960 8
WASHER,20.2X31X1.4 92200 92200-2248 1
NUT,20MM 92210 92210-1753 1
CIRCLIP-TYPE-C,13MM 480 480J1300 8
