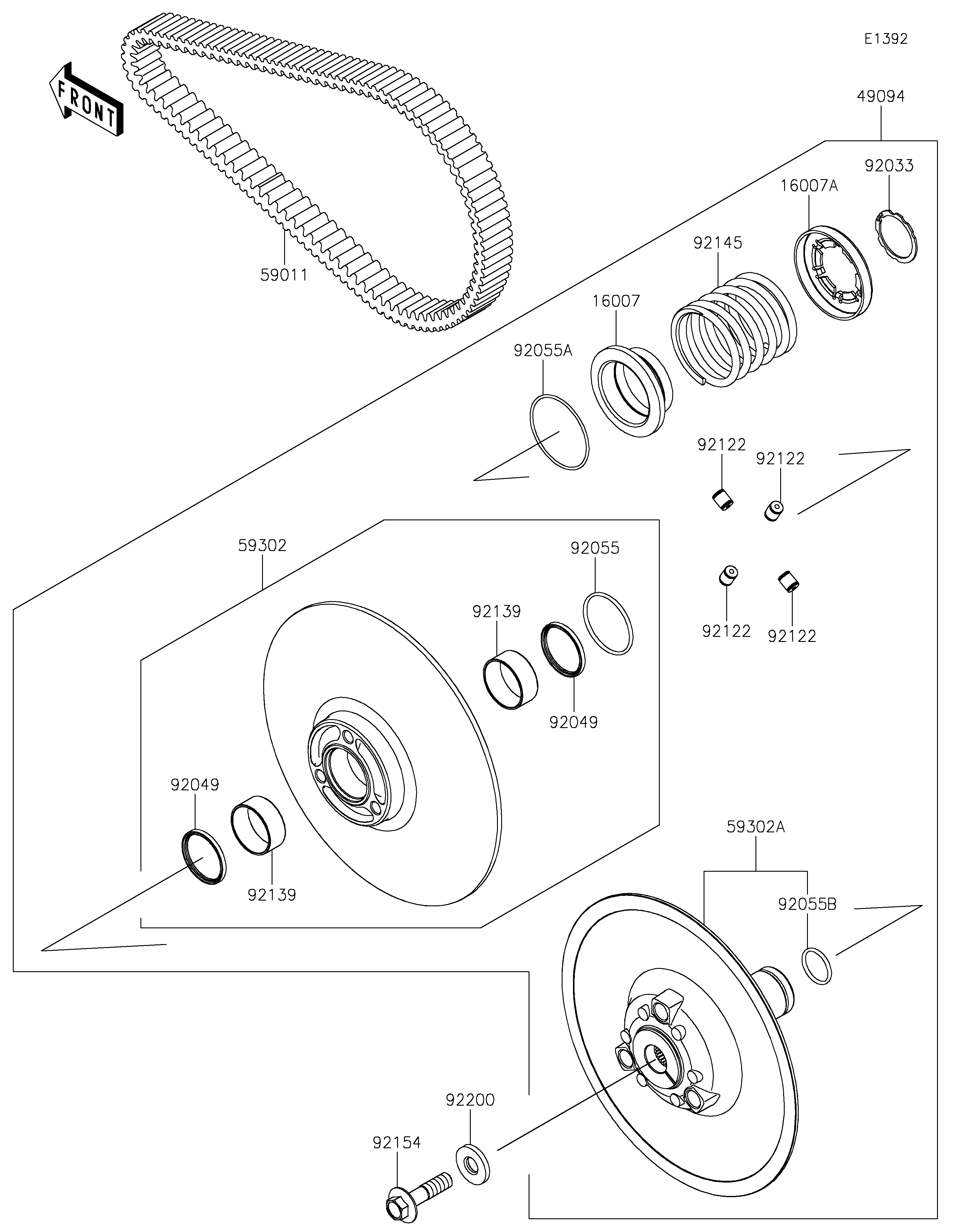

2021 TERYX KRX® 1000 - Driven Converter/Drive Belt
16007
16007A
49094
59011
59302
59302A
92033
92049
92049
92055
92055A
92055B
92122
92122
92122
92122
92139
92139
92145
92154
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEAT-SPRING,MOVABLE | 16007 | 16007-0754 | 1 | ||
| SEAT-SPRING,FIXED | 16007A | 16007-0755 | 1 | ||
| CONVERTER-ASSY-DRIVEN | 49094 | 49094-0100 | 1 | ||
| BELT,CVT | 59011 | 59011-0047 | 1 | ||
| SHEAVE-COMP,MOVABLE | 59302 | 59302-0104 | 1 | ||
| SHEAVE-COMP,FIXED | 59302A | 59302-0109 | 1 | ||
| RING-SNAP,41.5MM | 92033 | 92033-0801 | 1 | ||
| SEAL-OIL,GD45X52X4 V1 | 92049 | 92049-0821 | 2 | ||
| RING-O,54.4X3.1 | 92055 | 92055-0924 | 1 | ||
| RING-O,68.2X2.4 | 92055A | 92055-0925 | 1 | ||
| RING-O,29X3.1 | 92055B | 92055-0926 | 1 | ||
| ROLLER | 92122 | 92122-0560 | 4 | ||
| BUSHING | 92139 | 92139-0936 | 2 | ||
| SPRING | 92145 | 92145-1856 | 1 | ||
| BOLT,14X55 | 92154 | 92154-3920 | 1 | ||
| WASHER | 92200 | 92200-2389 | 1 |
