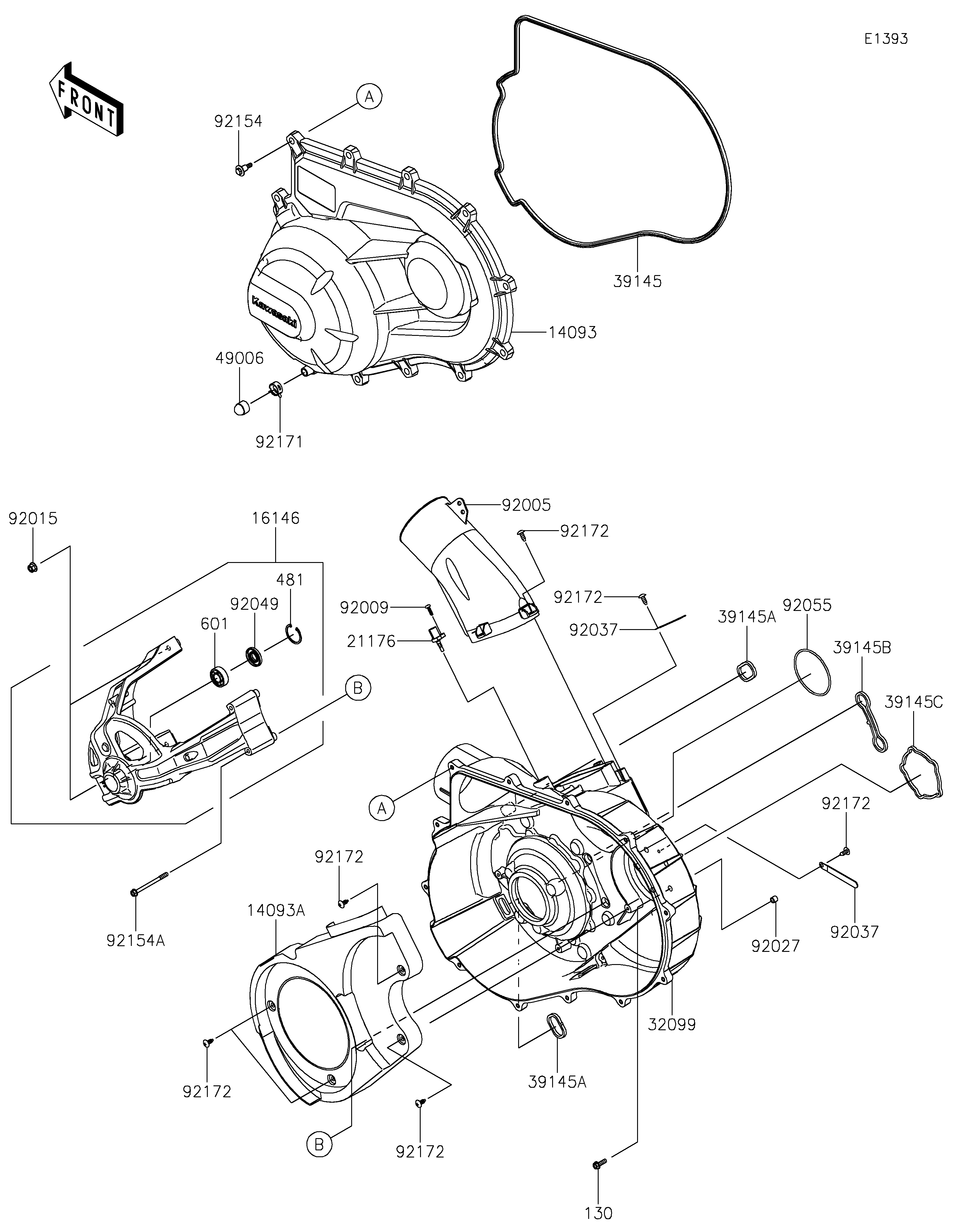

2021 TERYX KRX® 1000 - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
16146
21176
32099
39145
39145A
39145A
39145B
39145C
49006
92005
92009
92015
92027
92037
92037
92049
92055
92154
92154A
92171
92172
92172
92172
92172
92172
92172
130
481
601
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,CVT 14093 14093-0774 1
COVER 14093A 14093-0775 1
COVER-ASSY 16146 16146-0840 1
SENSOR,AIR TEMPERATURE 21176 21176-0048 1
CASE,CVT 32099 32099-0795 1
TRIM-SEAL,CVT COVER 39145 39145-0711 1
TRIM-SEAL 39145A 39145-0712 2
TRIM-SEAL 39145B 39145-0713 1
TRIM-SEAL 39145C 39145-0714 1
BOOT,DRAIN 49006 49006-3718 1
FITTING 92005 92005-0978 1
SCREW,TAPPING,5X16 92009 92009-1264 1
NUT,FLANGED,LOCK,8MM 92015 92015-1668 2
COLLAR,6.8X10X8.5 92027 92027-129 5
CLAMP 92037 92037-1993 2
SEAL-OIL,TC 15X35X6 92049 92049-0816 1
RING-O,84.4X3.1 92055 92055-0916 1
BOLT,CVT COVER 92154 92154-1522 12
BOLT,6X80 92154A 92154-3862 2
CLAMP 92171 92171-0329 1
SCREW,6X16 92172 92172-0284 10
BOLT-FLANGED,6X20 130 130BA0620 5
CIRCLIP-TYPE-C,35MM 481 481J3500 1
BEARING-BALL,#6202C3 601 601B6202 1
