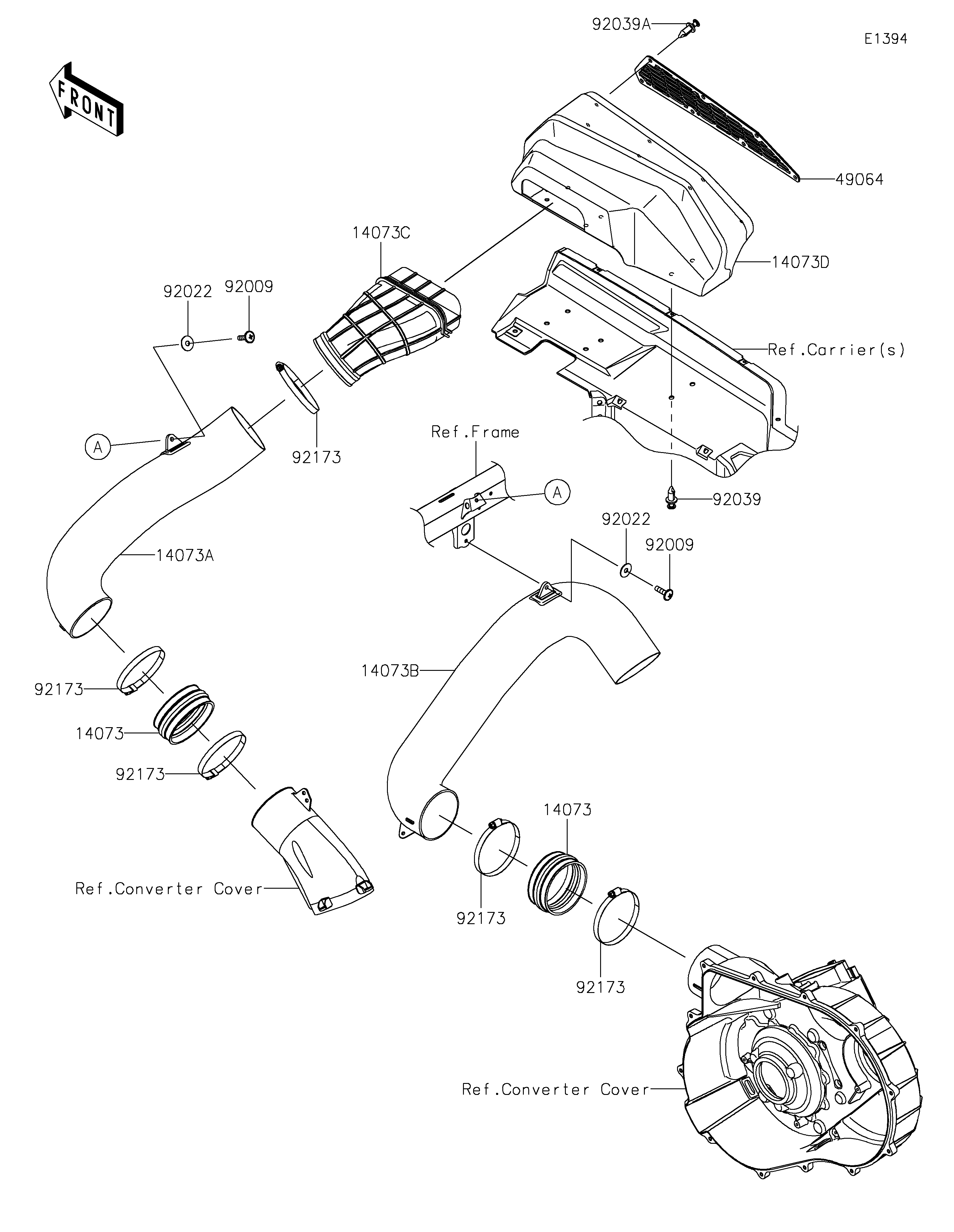

2021 TERYX KRX® 1000 - Air Cleaner-Belt Converter
14073
14073
14073A
14073B
14073C
14073D
49064
92009
92009
92022
92022
92039
92039A
92173
92173
92173
92173
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DUCT | 14073 | 14073-0909 | 2 | ||
| DUCT,INTAKE | 14073A | 14073-0910 | 1 | ||
| DUCT,EXHAUST | 14073B | 14073-0911 | 1 | ||
| DUCT | 14073C | 14073-0919 | 1 | ||
| DUCT | 14073D | 14073-0955 | 1 | ||
| FILTER-AIR | 49064 | 49064-0013 | 1 | ||
| SCREW,6X22 | 92009 | 92009-1441 | 2 | ||
| WASHER,PLAIN,6.5X20X1 | 92022 | 92022-165 | 2 | ||
| RIVET | 92039 | 92039-0776 | 6 | ||
| RIVET,TWO-PIECE CLIP | 92039A | 92039-0818 | 7 | ||
| CLAMP,130MM | 92173 | 92173-1938 | 5 |
