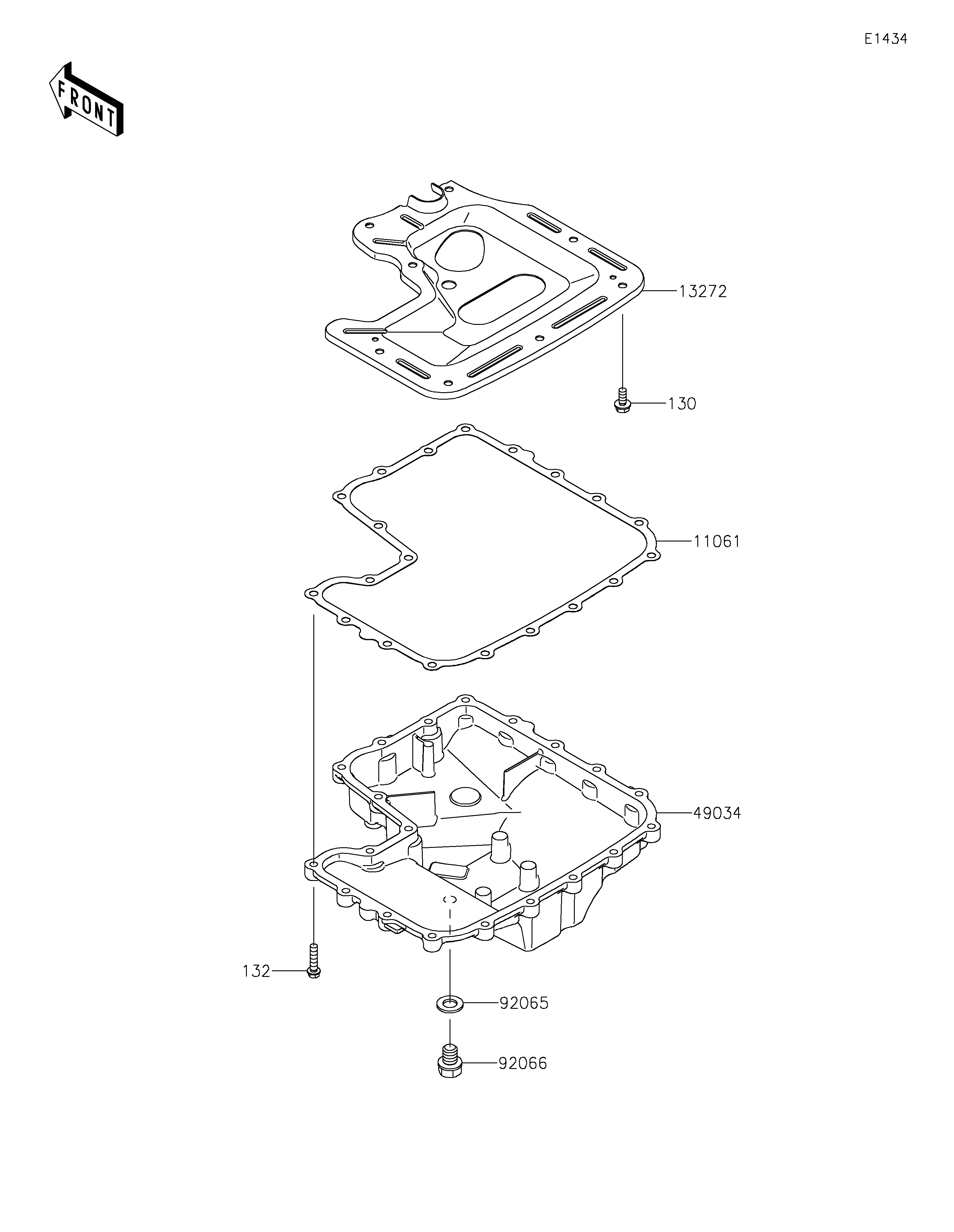

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11061 11061-1306 1
PLATE,OIL PAN 13272 13272-2625 1
PAN-OIL 49034 49034-0573 1
GASKET,12X22X2 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
BOLT-FLANGED,6X14 130 130BA0614 8
BOLT-FLANGED-SMALL,6X25 132 132BA0625 20
