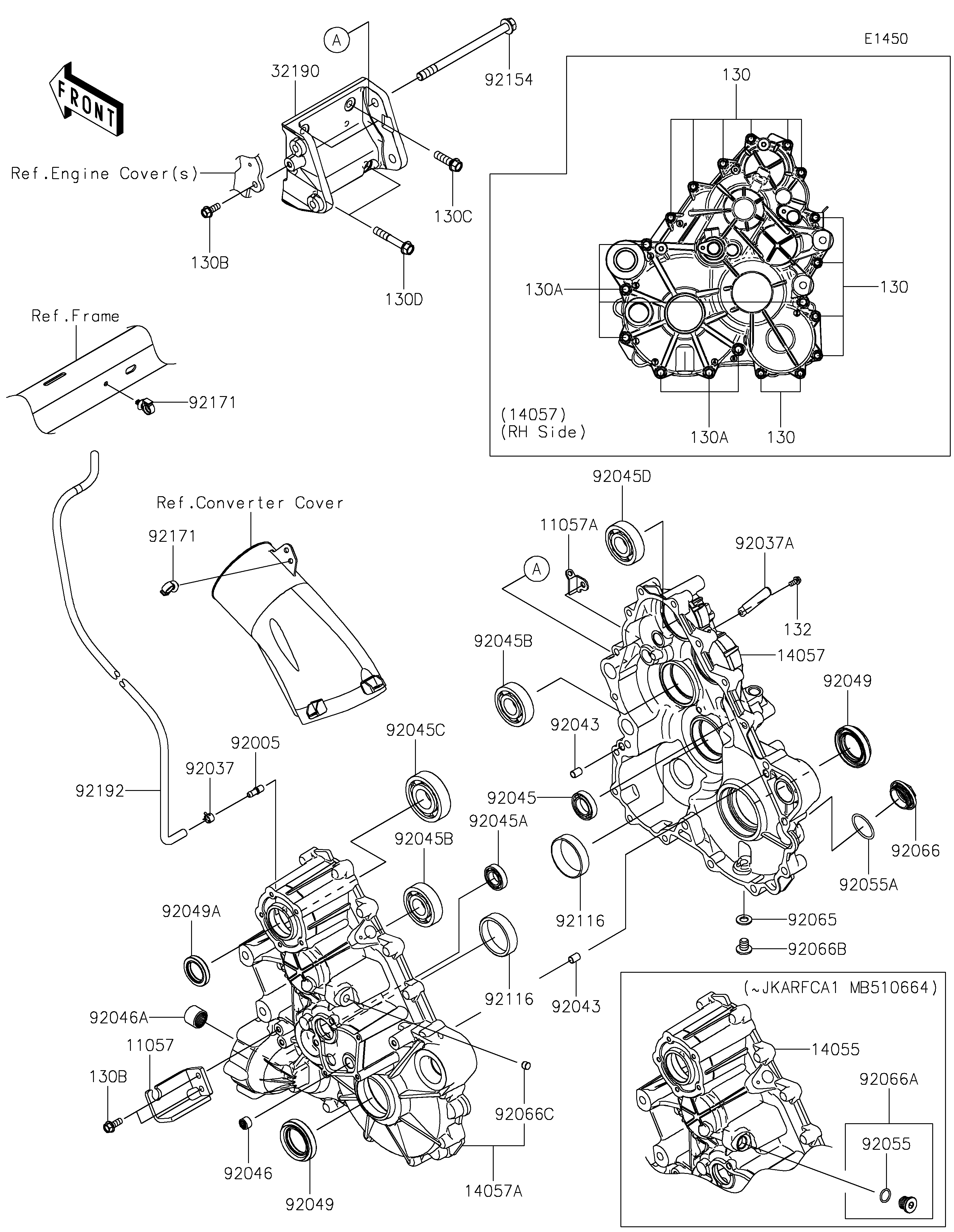

2021 TERYX KRX® 1000 - Gear Box

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11057A
11057A
14055
14055
14057
14057
14057A
14057A
32190
32190
92005
92005
92037
92037
92037A
92037A
92043
92043
92043
92043
92045
92045
92045A
92045A
92045B
92045B
92045B
92045B
92045C
92045C
92045D
92045D
92046
92046
92046A
92046A
92049
92049
92049
92049
92049A
92049A
92055
92055
92055A
92055A
92065
92065
92066
92066
92066A
92066A
92066B
92066B
92066C
92066C
92116
92116
92116
92116
92154
92154
92171
92171
92171
92171
92192
92192
130
130
130
130
130
130
130A
130A
130A
130A
130B
130B
130B
130B
130C
130C
130D
130D
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CABLE 11057 11057-1898 1
BRACKET 11057A 11057-4094 1
CASE-GEAR 14055 14055-0641 1 ( - JKARFCA1 MB510664)
CASE-COMP-GEAR 14057 14057-0020 1
CASE-COMP-GEAR 14057A 14057-0021 1 (JKARFCA1 MB510665 - )
BRACKET-ENGINE 32190 32190-0776 1
FITTING,BREATHER 92005 92005-1127 1
CLAMP,TUBE 92037 92037-1505 1
CLAMP 92037A 92037-1993 1
PIN,DOWEL,10X14 92043 92043-1037 2
BEARING-BALL,#6905 92045 92045-036 1
BEARING-BALL,6904 92045A 92045-0705 1
BEARING-BALL,6305RSH2 92045B 92045-0899 2
BEARING-BALL,TMB306C3 92045C 92045-0900 1
BEARING-BALL,6305 92045D 92045-0947 1
BEARING-NEEDLE,HK1210FM 92046 92046-0034 1
BEARING-NEEDLE 92046A 92046-0039 1
SEAL-OIL,TC9Y 40X62X10X17.2 92049 92049-0815 2
SEAL-OIL,HTC 30X45X8 92049A 92049-0848 1
RING-O,15.3X2.2 92055 92055-0830 1 ( - JKARFCA1 MB510664)
RING-O,35.8MM 92055A 92055-1281 1
GASKET,12X22X2 92065 92065-097 1
PLUG,36X7.5 92066 92066-0744 1
PLUG 92066A 92066-0778 1 ( - JKARFCA1 MB510664)
PLUG,12X15 92066B 92066-0943 1
PLUG 92066C 92066-1013 1 (JKARFCA1 MB510665 - )
BEARING-ROLLER,HC30305J 92116 92116-0011 2
BOLT,12X175 92154 92154-3859 2
CLAMP 92171 92171-0453 2
TUBE,5.8X10.8X935 92192 92192-1921 1
BOLT-FLANGED,8X45 130 130BA0845 12
BOLT-FLANGED,10X55 130A 130BA1055 7
BOLT-FLANGED,8X20 130B 130CA0820 3
BOLT-FLANGED,10X35 130C 130CA1035 2
BOLT-FLANGED,10X60 130D 130CA1060 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
