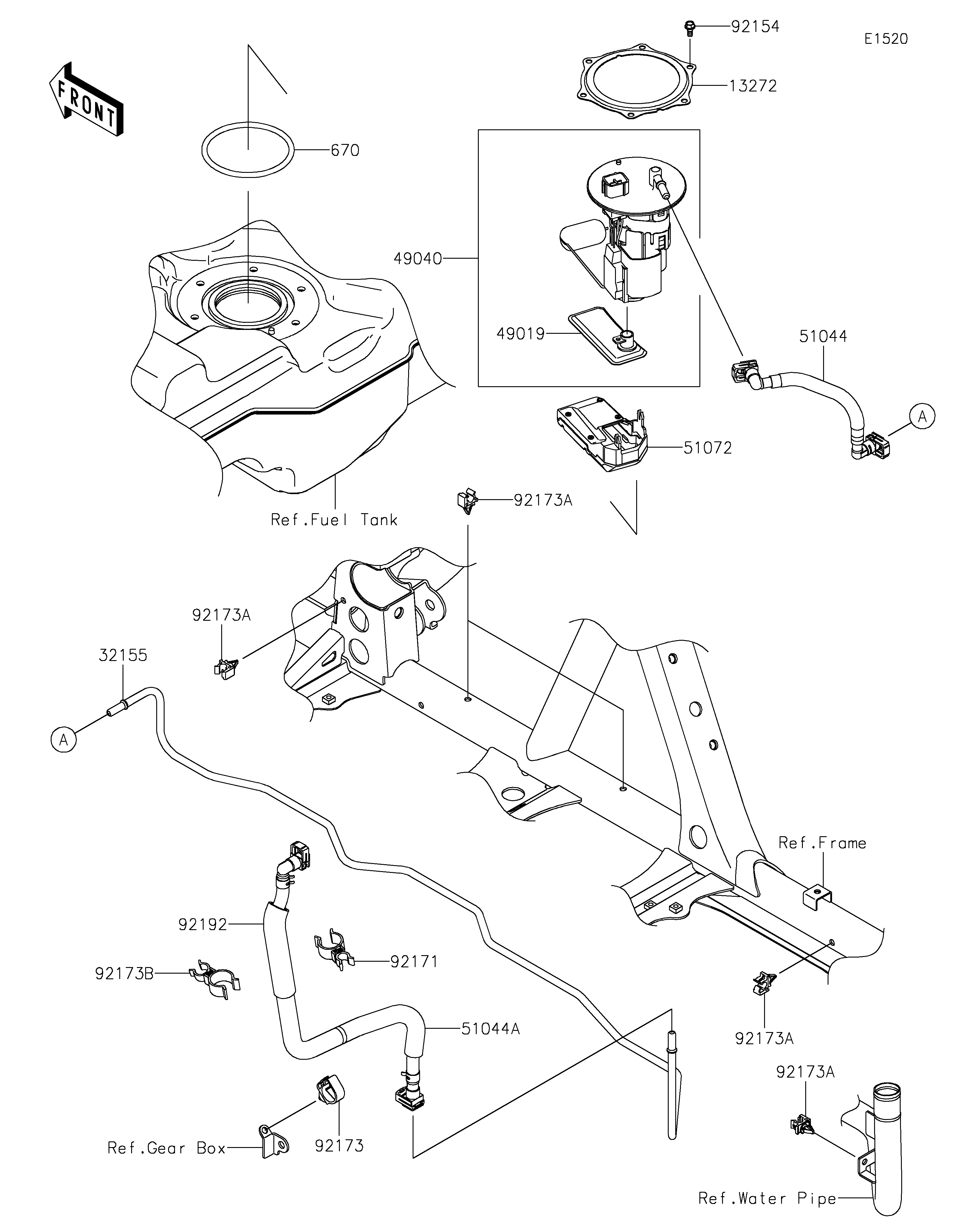

Parts Diagrams |
13272
32155
49019
49040
51044
51044A
51072
92154
92171
92173
92173A
92173A
92173A
92173A
92173B
92192
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE | 13272 | 13272-2500 | 1 | ||
| PIPE,FUEL | 32155 | 32155-3718 | 1 | ||
| FILTER-FUEL | 49019 | 49019-0034 | 1 | ||
| PUMP-FUEL | 49040 | 49040-0782 | 1 | ||
| TUBE-ASSY,FUEL PUMP-PIPE | 51044 | 51044-0905 | 1 | ||
| TUBE-ASSY,PIPE-ENGINE | 51044A | 51044-0944 | 1 | ||
| CHAMBER-FUEL | 51072 | 51072-0007 | 1 | ||
| BOLT,FUEL PUMP | 92154 | 92154-1326 | 6 | ||
| CLAMP | 92171 | 92171-0762 | 1 | ||
| CLAMP | 92173 | 92173-0861 | 1 | ||
| CLAMP,FUEL PIPE | 92173A | 92173-1213 | 5 | ||
| CLAMP,CLIP | 92173B | 92173-2286 | 1 | ||
| TUBE,CORRUGATED,19.5X23.8X120 | 92192 | 92192-2335 | 1 | ||
| O RING | 670 | 670E5090 | 1 |
