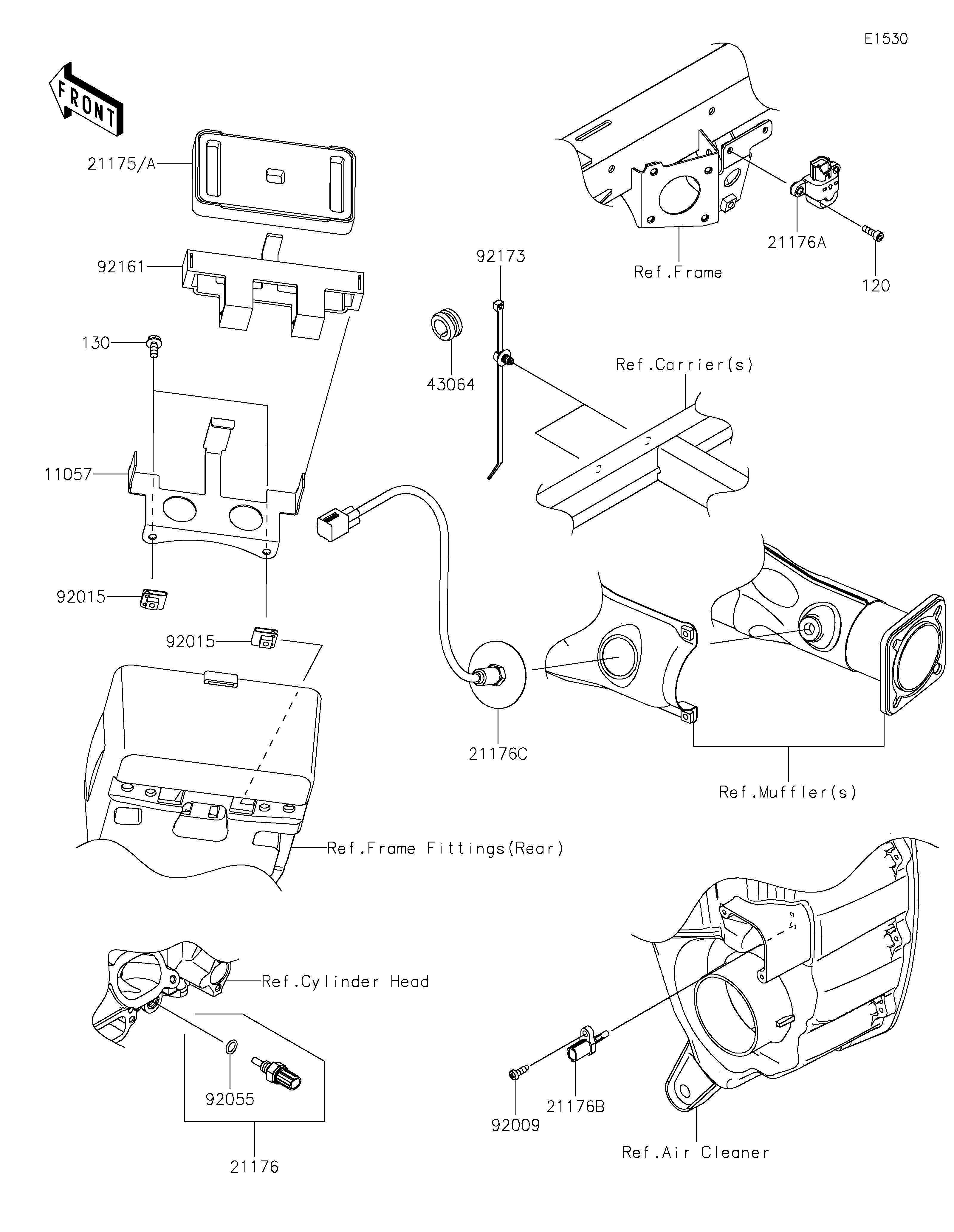

11057
21175
21175A
21176
21176A
21176B
21176C
43064
92009
92015
92015
92055
92161
92173
120
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ECU 11057 11057-2230 1
CONTROL UNIT-ELECTRONIC 21175 21175-1482 1 CN,US
CONTROL UNIT-ELECTRONIC 21175A 21175-1483 1 CA
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,VEHICLE-DOWN 21176A 21176-0026 1
SENSOR,AIR TEMPERATURE 21176B 21176-0048 1
SENSOR,OXYGEN 21176C 21176-0900 1
GROMMET,HOSE CLAMP 43064 43064-007 2
SCREW,TAPPING,5X16 92009 92009-1984 1
NUT,CLAMP,6MM 92015 92015-1678 2
RING-O,9.5X1.9 92055 92055-0016 1
DAMPER,ECU 92161 92161-2183 1
CLAMP 92173 92173-2188 2
BOLT-SOCKET,5X16 120 120CA0516 2
BOLT-FLANGED,6X14 130 130CA0614 2
