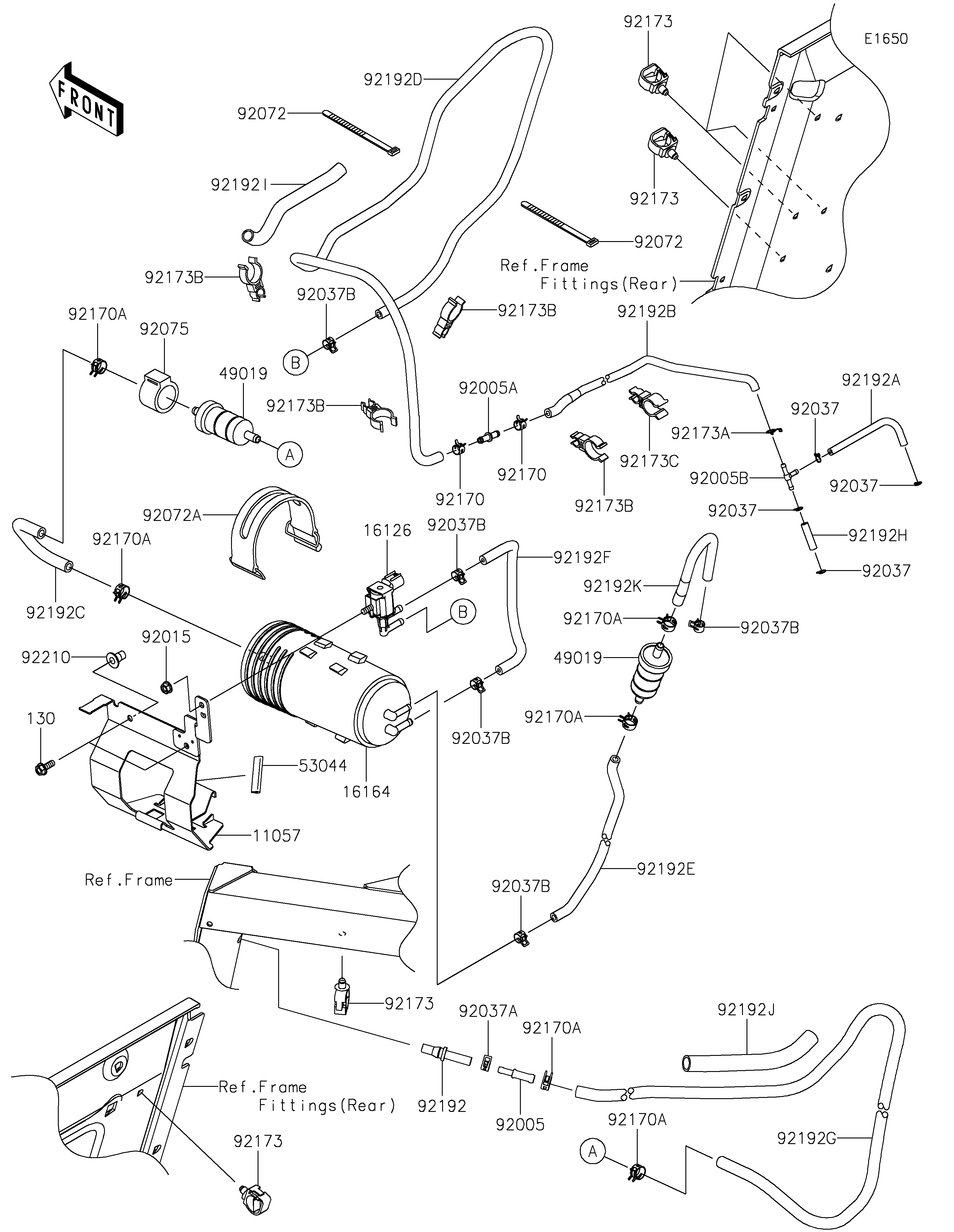

2021 TERYX KRX® 1000 - Fuel Evaporative System(CA)
11057
11057
16126
16126
16164
16164
49019
49019
49019
49019
53044
53044
92005
92005
92005A
92005A
92005B
92005B
92015
92015
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92037B
92072
92072
92072
92072
92072A
92072A
92075
92075
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173C
92173C
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
92192E
92192E
92192F
92192F
92192G
92192G
92192H
92192H
92192I
92192I
92192J
92192J
92192K
92192K
92210
92210
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CANISTER | 11057 | 11057-2246 | 1 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0016 | 1 | CA | |
| FILTER-FUEL | 49019 | 49019-0032 | 2 | CA | |
| TRIM,L=40 | 53044 | 53044-1320 | 1 | CA | |
| FITTING | 92005 | 92005-0720 | 1 | CA | |
| FITTING | 92005A | 92005-0721 | 1 | CA | |
| FITTING | 92005B | 92005-1380 | 1 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-1124 | 4 | CA | |
| CLAMP,TUBE | 92037A | 92037-1461 | 1 | CA | |
| CLAMP | 92037B | 92037-2113 | 5 | CA | |
| BAND,L=149 | 92072 | 92072-031 | 2 | CA | |
| BAND,L=168 | 92072A | 92072-1306 | 1 | CA | |
| DAMPER,FUEL FILTER | 92075 | 92075-1853 | 1 | CA | |
| CLAMP | 92170 | 92170-1493 | 2 | CA | |
| CLAMP | 92170A | 92170-2082 | 6 | CA | |
| CLAMP | 92173 | 92173-0861 | 6 | CA | |
| CLAMP | 92173A | 92173-1568 | 1 | CA | |
| CLAMP,CLIP | 92173B | 92173-2000 | 4 | CA | |
| CLAMP | 92173C | 92173-2287 | 1 | CA | |
| TUBE,FRAME PIPE-CHECK VALVE | 92192 | 92192-0068 | 1 | CA | |
| TUBE,3.5X7.5X125 | 92192A | 92192-1497 | 1 | CA | |
| TUBE,L=450 | 92192B | 92192-1612 | 1 | CA | |
| TUBE,FILTER-CANISTER | 92192C | 92192-1665 | 1 | CA | |
| TUBE,PURGE VALVE-THROTTLE BODY | 92192D | 92192-1951 | 1 | CA | |
| TUBE,CANISTER-CHECK VALVE | 92192E | 92192-1952 | 1 | CA | |
| TUBE,CANISTER-PURGE VALVE | 92192F | 92192-1953 | 1 | CA | |
| TUBE,AIR BREATHER | 92192G | 92192-1954 | 1 | CA | |
| TUBE,THROTTLE BODY | 92192H | 92192-1992 | 1 | CA | |
| TUBE,CONVOLUTED,10.7X14.1X170 | 92192I | 92192-2293 | 1 | CA | |
| TUBE,CONVOLUTED,13.2X17.5X160 | 92192J | 92192-2294 | 1 | CA | |
| TUBE,CHECK VALVE-FILTER | 92192K | 92192-2295 | 1 | CA | |
| NUT,LARGE FLANGE,6MM,L=16.5 | 92210 | 92210-1623 | 2 | CA | |
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 2 | CA |
