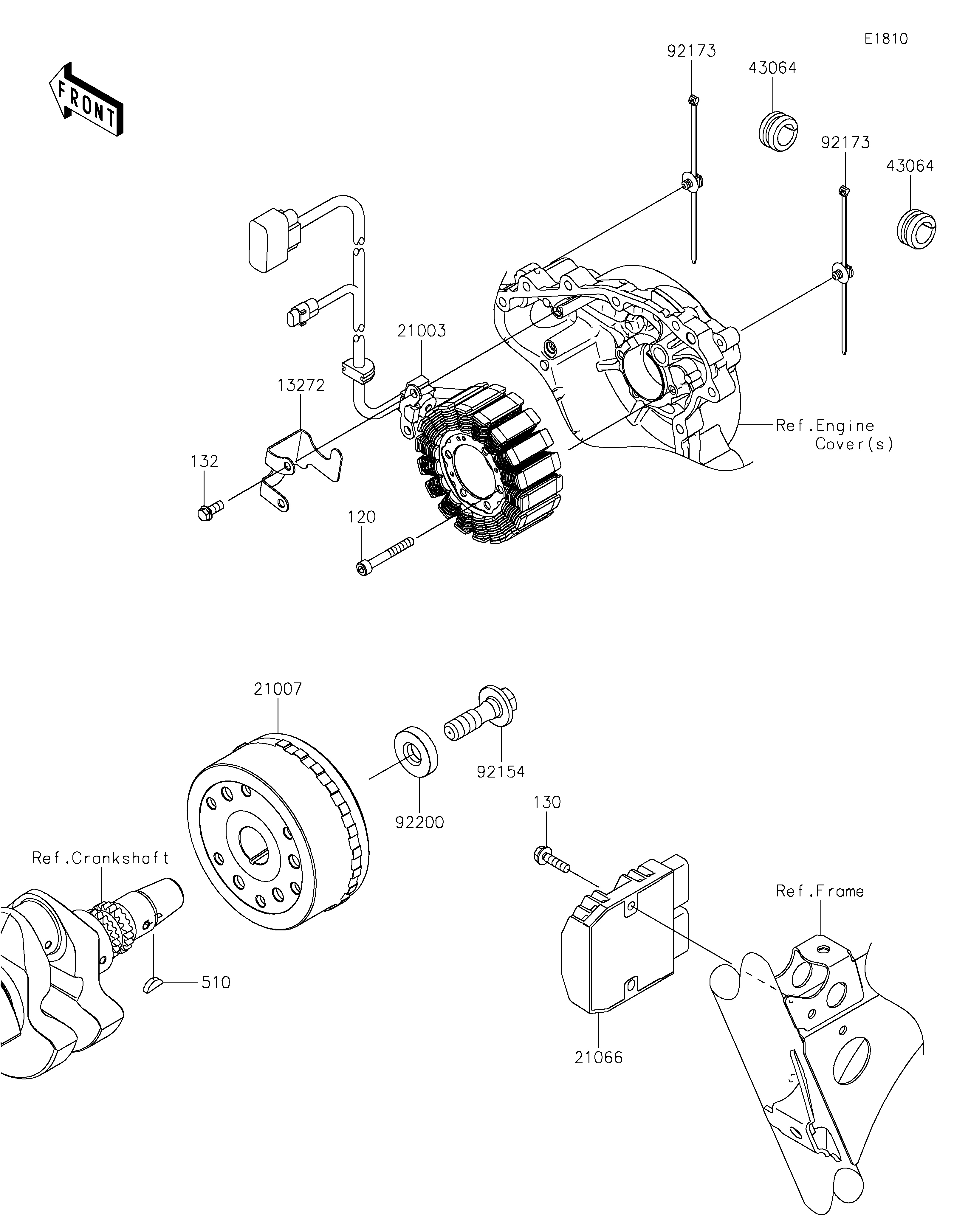

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,LEAD WIRE 13272 13272-2627 1
STATOR 21003 21003-0196 1
ROTOR 21007 21007-0685 1
REGULATOR-VOLTAGE 21066 21066-0771 1
GROMMET,HOSE CLAMP 43064 43064-007 2
BOLT,FLANGED,14X45 92154 92154-3915 1
CLAMP 92173 92173-2259 2
WASHER,14X36X8 92200 92200-2240 1
BOLT-SOCKET,6X45 120 120CA0645 4
BOLT-FLANGED,6X22 130 130BA0622 2
BOLT-FLANGED-SMALL,6X14 132 132BA0614 2
KEY-WOODRUFF 510 510A4200 1
