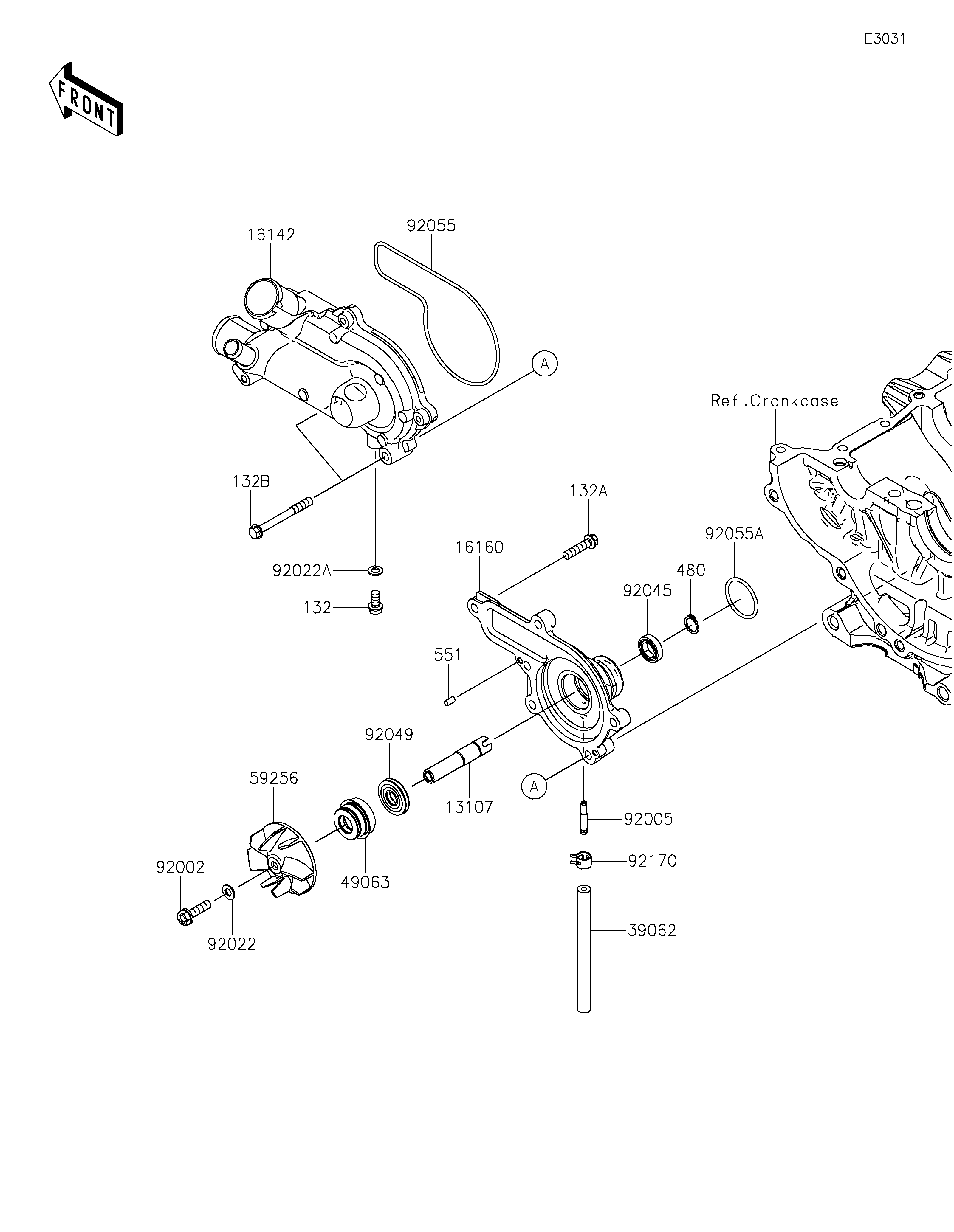

2021 TERYX KRX® 1000 - Water Pump

DOWNLOAD PDF
SELECT A NEW PART
13107
16142
16160
39062
49063
59256
92002
92005
92022
92022A
92045
92049
92055
92055A
92170
132
132A
132B
480
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,WATER PUMP BODY 13107 13107-0894 1
COVER-PUMP,WATER 16142 16142-0756 1
BODY,WATER PUMP 16160 16160-0804 1
HOSE-COOLING,4X10X110 39062 39062-0847 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
IMPELLER 59256 59256-0017 1
BOLT,6X22 92002 92002-1154 1
FITTING 92005 92005-1264 1
WASHER,6.1X12X1 92022 92022-077 1
WASHER,6.2X11X1 92022A 92022-304 1
BEARING-BALL,6801P 92045 92045-0918 1
SEAL-OIL 92049 92049-0778 1
RING-O,WATER PUMP COVER 92055 92055-0921 1
RING-O,28.7X2.4 92055A 92055-0922 1
CLAMP 92170 92170-1493 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
BOLT-FLANGED-SMALL,6X25 132A 132BA0625 4
BOLT-FLANGED-SMALL,6X55 132B 132BA0655 2
CIRCLIP-TYPE-C,12MM 480 480J1200 1
PIN-DOWEL,4X8 551 551A0408 2
