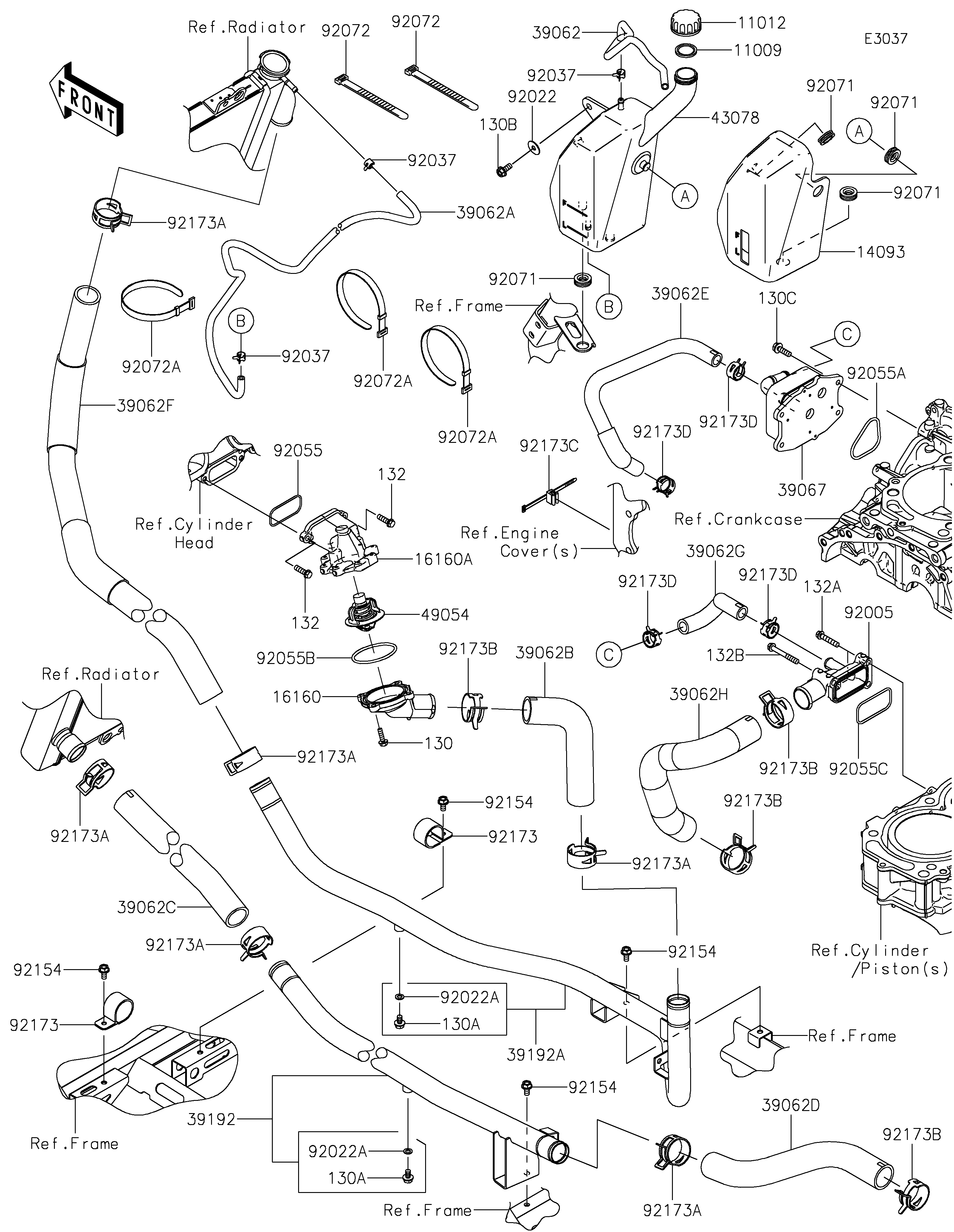

2021 TERYX KRX® 1000 - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
14093
14093
16160
16160
16160A
16160A
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
39062G
39062G
39062H
39062H
39067
39067
39192
39192
39192A
39192A
43078
43078
49054
49054
92005
92005
92022
92022
92022A
92022A
92022A
92022A
92037
92037
92037
92037
92037
92037
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92071
92071
92071
92071
92071
92071
92071
92071
92072
92072
92072
92072
92072A
92072A
92072A
92072A
92072A
92072A
92154
92154
92154
92154
92154
92154
92154
92154
92173
92173
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173C
92173C
92173D
92173D
92173D
92173D
92173D
92173D
92173D
92173D
130
130
130A
130A
130A
130A
130B
130B
130C
130C
132
132
132
132
132A
132A
132B
132B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
COVER,RESERVOIR 14093 14093-0847 1
BODY 16160 16160-0805 1
BODY 16160A 16160-0806 1
HOSE-COOLING,OVERFLOW 39062 39062-0830 1
HOSE-COOLING,RAD-RESERVOIR 39062A 39062-0831 1
HOSE-COOLING,ENGINE-PIPE(RH) 39062B 39062-0833 1
HOSE-COOLING,RADIATOR-PIPE(LH) 39062C 39062-0835 1
HOSE-COOLING,PIPE(LH)-W/PUMP 39062D 39062-0836 1
HOSE-COOLING,OIL COOLER-W/PUMP 39062E 39062-0838 1
HOSE-COOLING,RADIATOR-PIPE(RH) 39062F 39062-0870 1
HOSE-COOLING,ENGINE-OIL COOLER 39062G 39062-0872 1
HOSE-COOLING,W/PUMP-ENGINE 39062H 39062-0874 1
COOLER-OIL 39067 39067-0023 1
PIPE-WATER,LH 39192 39192-0669 1
PIPE-WATER,RH 39192A 39192-0670 1
RESERVOIR 43078 43078-0602 1
THERMOSTAT 49054 49054-0004 1
FITTING,CYLINDER 92005 92005-0899 1
WASHER,PLAIN,6.5X20X1 92022 92022-165 1
WASHER,6.2X11X1 92022A 92022-304 2
CLAMP,TUBE 92037 92037-1461 3
RING-O,YP 27.6 57.6 1.9 92055 92055-0021 1
RING-O,46.4X3.1 92055A 92055-0752 1
RING-O,53.5X2.6 92055B 92055-0831 1
RING-O,FITTING 92055C 92055-0923 1
GROMMET 92071 92071-1115 4
BAND,L=123 92072 92072-030 2
BAND,L=186 92072A 92072-056 3
BOLT,FLANGED,6X12 92154 92154-1195 4
CLAMP 92173 92173-1204 2
CLAMP,28.6MM 92173A 92173-1205 6
CLAMP,33.4MM 92173B 92173-1981 4
CLAMP 92173C 92173-2089 1
CLAMP 92173D 92173-2285 4
BOLT-FLANGED,5X18 130 130BA0518 4
BOLT-FLANGED,6X10 130A 130BA0610 2
BOLT-FLANGED,6X14 130B 130BA0614 1
BOLT-FLANGED,6X20 130C 130CA0620 4
BOLT-FLANGED-SMALL,6X20 132 132BA0620 2
BOLT-FLANGED-SMALL,6X30 132A 132BA0630 2
BOLT-FLANGED-SMALL,6X45 132B 132BA0645 1
