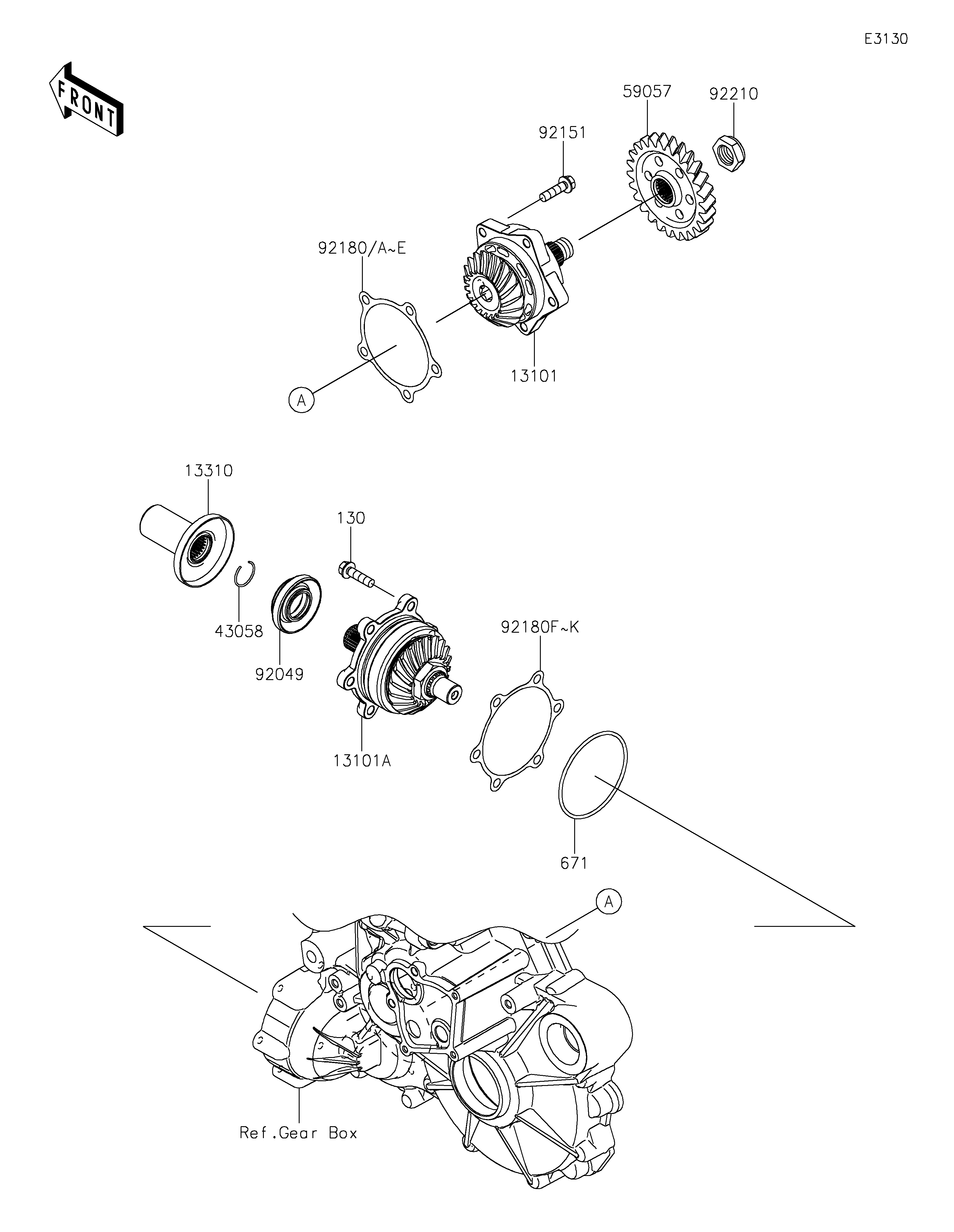

2021 TERYX KRX® 1000 - Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
13101
13101A
13310
43058
59057
92049
92151
92180
92180A
92180B
92180C
92180D
92180E
92180F
92180G
92180H
92180I
92180J
92180K
92210
130
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-ASSY,DRIVE 13101 13101-0689 1
GEAR-ASSY,DRIVEN 13101A 13101-0690 1
SHAFT-ASSY 13310 13310-0044 1
RING 43058 43058-0018 1
GEAR-HELICAL 59057 59057-0034 1
SEAL-OIL 92049 92049-0160 1
BOLT,8X30 92151 92151-1908 5
SHIM,DRIVE,T=0.15 92180 92180-1543 AR
SHIM,DRIVE,T=0.20 92180A 92180-1544 AR
SHIM,DRIVE,T=0.50 92180B 92180-1545 AR
SHIM,DRIVE,T=0.80 92180C 92180-1546 AR
SHIM,DRIVE,T=1.00 92180D 92180-1547 AR
SHIM,DRIVE,T=1.20 92180E 92180-1548 AR
SHIM,DRIVEN,T=0.15 92180F 92180-1549 AR
SHIM,DRIVEN,T=0.20 92180G 92180-1550 AR
SHIM,DRIVEN,T=0.50 92180H 92180-1551 AR
SHIM,DRIVEN,T=0.80 92180I 92180-1552 AR
SHIM,DRIVEN,T=1.00 92180J 92180-1553 AR
SHIM,DRIVEN,T=1.20 92180K 92180-1554 AR
NUT 92210 92210-1790 1
BOLT-FLANGED,8X30 130 130BA0830 6
O RING 671 671D2585 1
