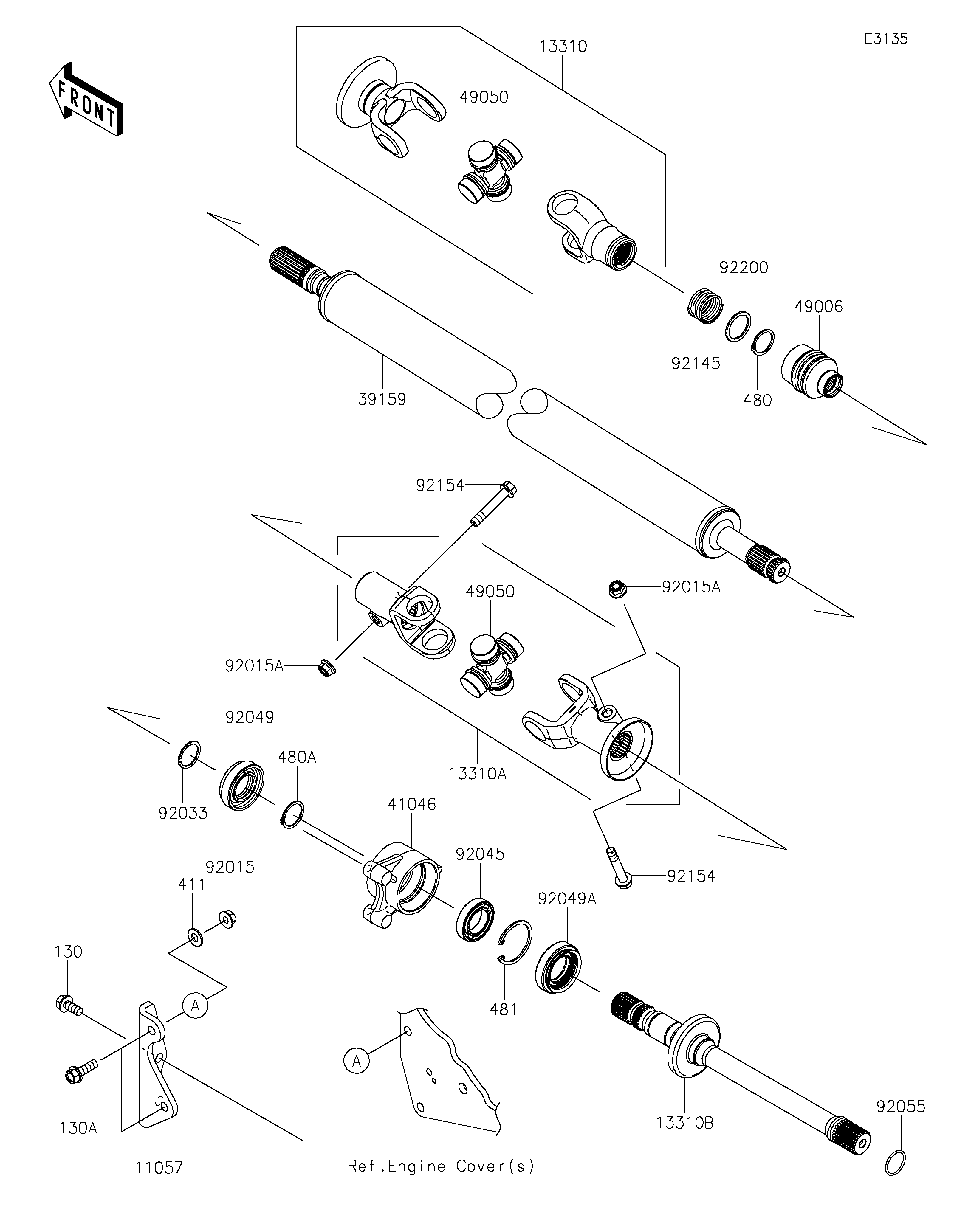

2021 TERYX KRX® 1000 - Drive Shaft-Propeller

DOWNLOAD PDF
SELECT A NEW PART
11057
13310
13310A
13310B
39159
41046
49006
49050
49050
92015
92015A
92015A
92033
92045
92049
92049A
92055
92145
92154
92154
92200
130
130A
411
480
480A
481
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BEARING-COMP 11057 11057-2804 1
SHAFT-ASSY,FRONT GEAR SIDE 13310 13310-0031 1
SHAFT-ASSY,REAR GEAR SIDE 13310A 13310-0045 1
SHAFT-ASSY 13310B 13310-0046 1
SHAFT-DRIVE 39159 39159-0576 1
HOUSING-BEARING 41046 41046-0037 1
BOOT,GEAR ASSY SIDE 49006 49006-0108 1
SPIDER 49050 49050-0034 2
NUT,FLANGED,8MM 92015 92015-1014 2
NUT,8MM 92015A 92015-1432 2
RING-SNAP,25MM 92033 92033-1172 1
BEARING-BALL,#6905 92045 92045-036 1
SEAL-OIL,TC9Y 25X48X10X17.2 92049 92049-0817 1
SEAL-OIL,TC9Y 28X50X10X17.2 92049A 92049-0818 1
RING-O,22.1X1.9 92055 92055-1617 1
SPRING 92145 92145-1838 1
BOLT,FLANGED,8X46 92154 92154-1365 2
WASHER,25X31X1.5 92200 92200-0600 1
BOLT-FLANGED,8X18 130 130BA0818 2
BOLT-FLANGED,8X25 130A 130BA0825 2
WASHER-PLAIN,8MM 411 411AA0800 2
CIRCLIP-TYPE-C,24MM 480 480J2400 1
CIRCLIP-TYPE-C,25MM 480A 480J2500 1
CIRCLIP-TYPE-C,42MM 481 481J4200 1
