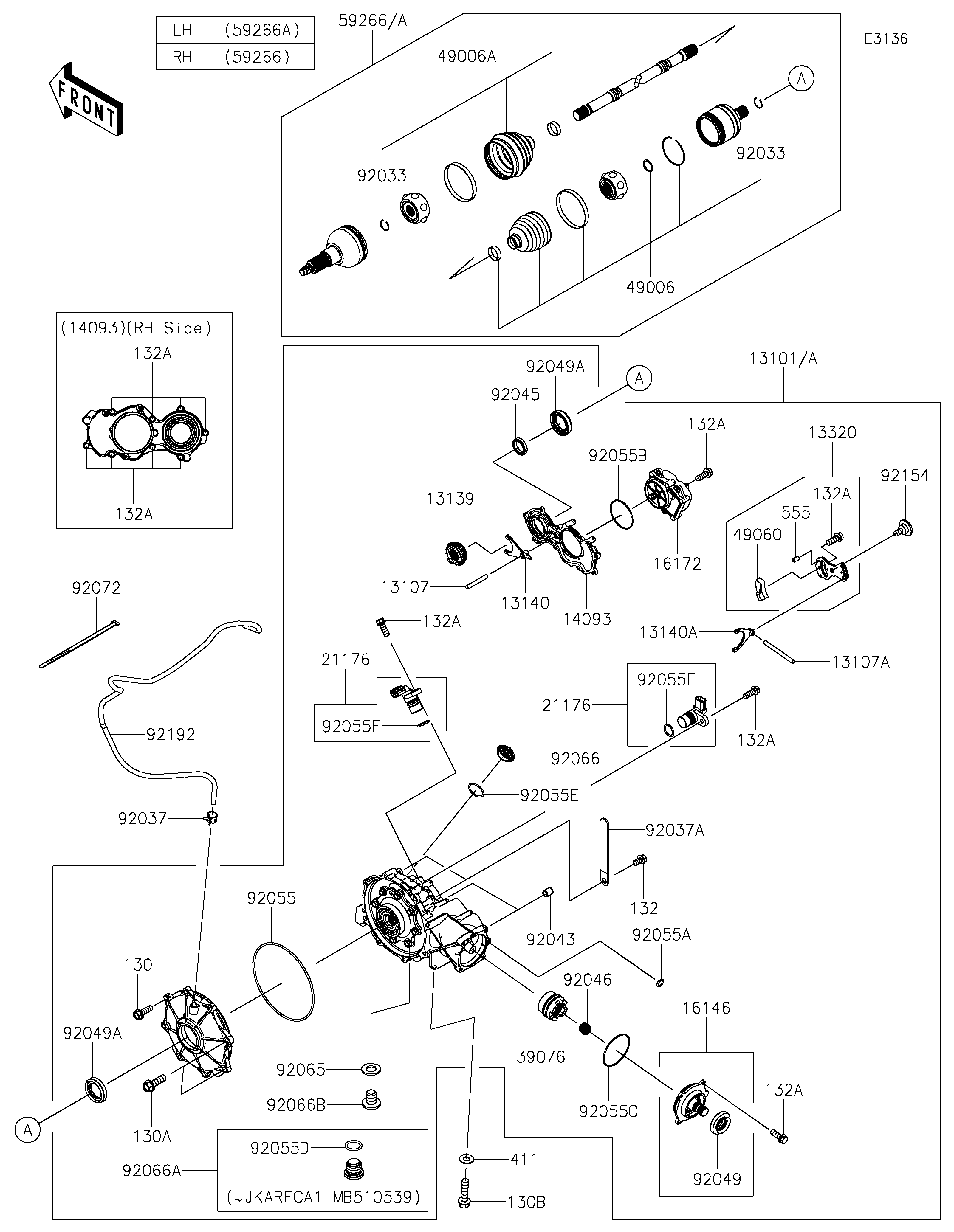

2021 TERYX KRX® 1000 - Drive Shaft-Front

DOWNLOAD PDF
SELECT A NEW PART
13101
13101
13101A
13101A
13107
13107
13107A
13107A
13139
13139
13140
13140
13140A
13140A
13320
13320
14093
14093
16146
16146
16172
16172
21176
21176
21176
21176
39076
39076
49006
49006
49006A
49006A
49060
49060
59266
59266
59266A
59266A
92033
92033
92033
92033
92037
92037
92037A
92037A
92043
92043
92045
92045
92046
92046
92049
92049
92049A
92049A
92049A
92049A
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92055E
92055E
92055F
92055F
92055F
92055F
92065
92065
92066
92066
92066A
92066A
92066B
92066B
92072
92072
92154
92154
92192
92192
130
130
130A
130A
130B
130B
132
132
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
411
411
555
555
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-ASSY,FRONT DIFFERENTIAL 13101 13101-0679 1 ( - JKARFCA1 MB510539)
GEAR-ASSY,FRONT DIFFERENTIAL 13101A 13101-0713 1 (JKARFCA1 MB510540 - )
SHAFT,DIFF LOCK 13107 13107-0768 1
SHAFT 13107A 13107-0887 1
SHIFTER,DIFF 13139 13139-0031 1
FORK-SHIFT 13140 13140-0674 1
FORK-SHIFT 13140A 13140-0675 1
LEVER-ASSY 13320 13320-0033 1
COVER,RH 14093 14093-0707 1
COVER-ASSY,INPUT SHAFT 16146 16146-0740 1
ACTUATOR 16172 16172-0030 1
SENSOR,SPEED 21176 21176-0891 2
LIMITER 39076 39076-0038 1
BOOT,INSIDE 49006 49006-0615 2
BOOT,OUTSIDE 49006A 49006-0616 2
CAM 49060 49060-0025 1
JOINT-BALL,RH 59266 59266-0732 1
JOINT-BALL,LH 59266A 59266-0733 1
RING-SNAP 92033 92033-0837 4
CLAMP,TUBE 92037 92037-1505 1
CLAMP 92037A 92037-1993 2
PIN,DOWEL,8X10 92043 92043-1302 2
BEARING-BALL,6806 92045 92045-0826 1
BEARING-NEEDLE 92046 92046-1234 1
SEAL-OIL 92049 92049-0160 1
SEAL-OIL,TC9Y 40X62X10X17.2 92049A 92049-0815 2
RING-O,190.2X4.2 92055 92055-0121 1
RING-O,7.5X1.5 92055A 92055-0756 1
RING-O,1.9X71.8 92055B 92055-0781 1
RING-O 92055C 92055-081 1
RING-O,15.3X2.2 92055D 92055-0830 1 ( - JKARFCA1 MB510539)
RING-O,35.8MM 92055E 92055-1281 1
RING-O 92055F 92055-1639 2
GASKET,12X22X2 92065 92065-097 1 (JKARFCA1 MB510540 - )
PLUG,36X7.5 92066 92066-0744 1
PLUG 92066A 92066-0778 1 ( - JKARFCA1 MB510539)
PLUG,12X15 92066B 92066-0943 1 (JKARFCA1 MB510540 - )
BAND,L=218 92072 92072-032 1
BOLT 92154 92154-3860 1
TUBE,5.8X10.8X1275 92192 92192-1922 1
BOLT-FLANGED,8X25 130 130CA0825 6
BOLT-FLANGED,10X30 130A 130CA1030 2
BOLT-FLANGED,10X40 130B 130CA1040 4
BOLT-FLANGED-SMALL,6X10 132 132BA0610 2
BOLT-FLANGED-SMALL,6X16 132A 132BA0616 18
WASHER-PLAIN,10MM 411 411AA1000 4
PIN-SPRING,4X8 555 555A0408 2
