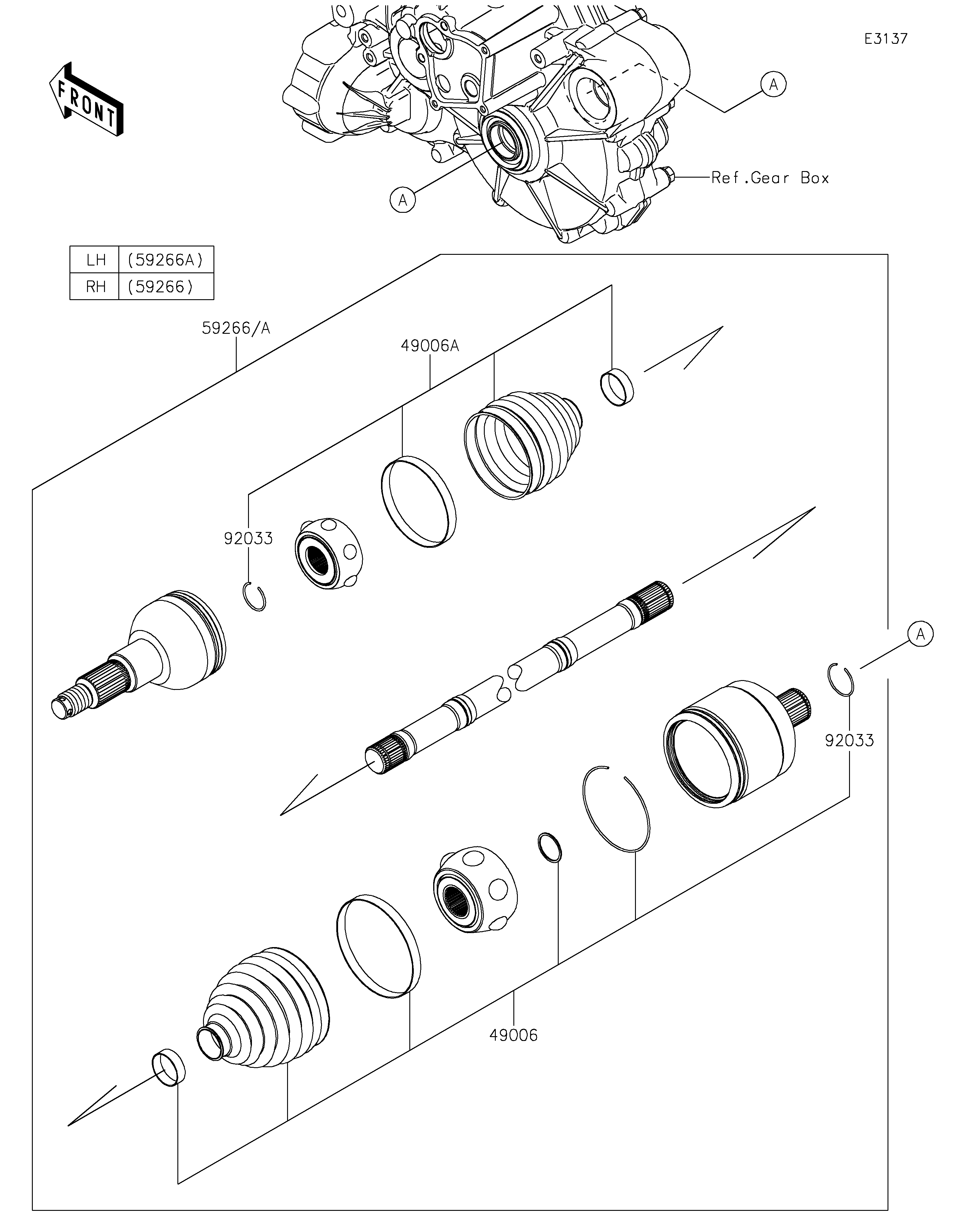

49006
49006A
59266
59266A
92033
92033
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOOT,INSIDE 49006 49006-0613 2
BOOT,OUTSIDE 49006A 49006-0614 2
JOINT-BALL,RR,RH 59266 59266-0734 1
JOINT-BALL,RR,LH 59266A 59266-0742 1
RING-SNAP 92033 92033-0840 4
