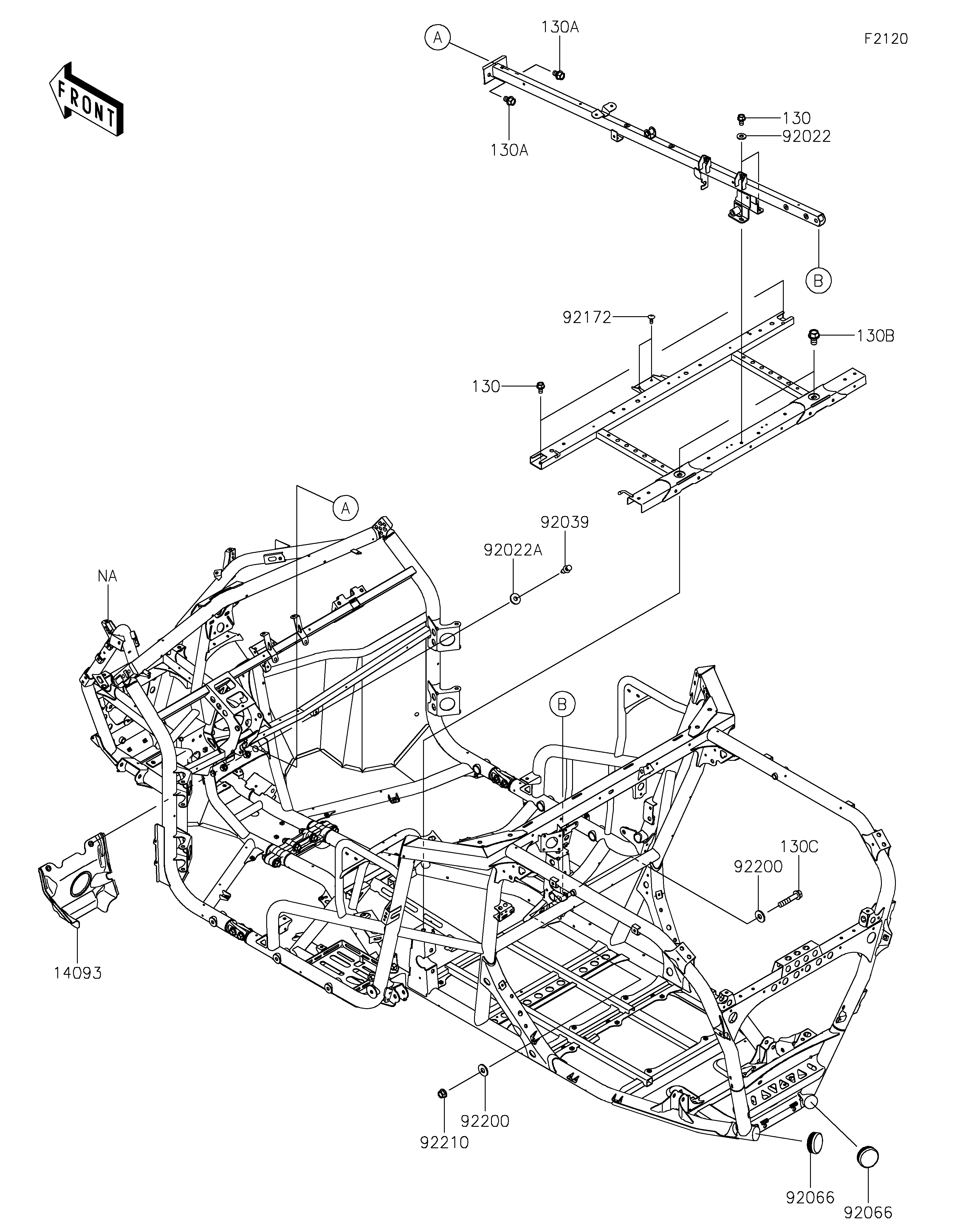

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,PROPELLER SHAFT 14093 14093-1009 1
WASHER,8.2X19X2 92022 92022-1533 2
WASHER,8.4X23X2.5 92022A 92022-3744 2
RIVET 92039 92039-0776 2
PLUG,RR END 92066 92066-0926 2
SCREW,TAPPING,6X16 92172 92172-0739 2
WASHER,11X26X2.6 92200 92200-0352 2
NUT,LOCK,FLANGED,10MM 92210 92210-0276 1
BOLT-FLANGED,8X14 130 130BA0814 4
BOLT-FLANGED,10X14 130A 130BA1014 2
BOLT-FLANGED,12X20 130B 130BA1220 2
BOLT-FLANGED,10X50 130C 130CA1050 1
