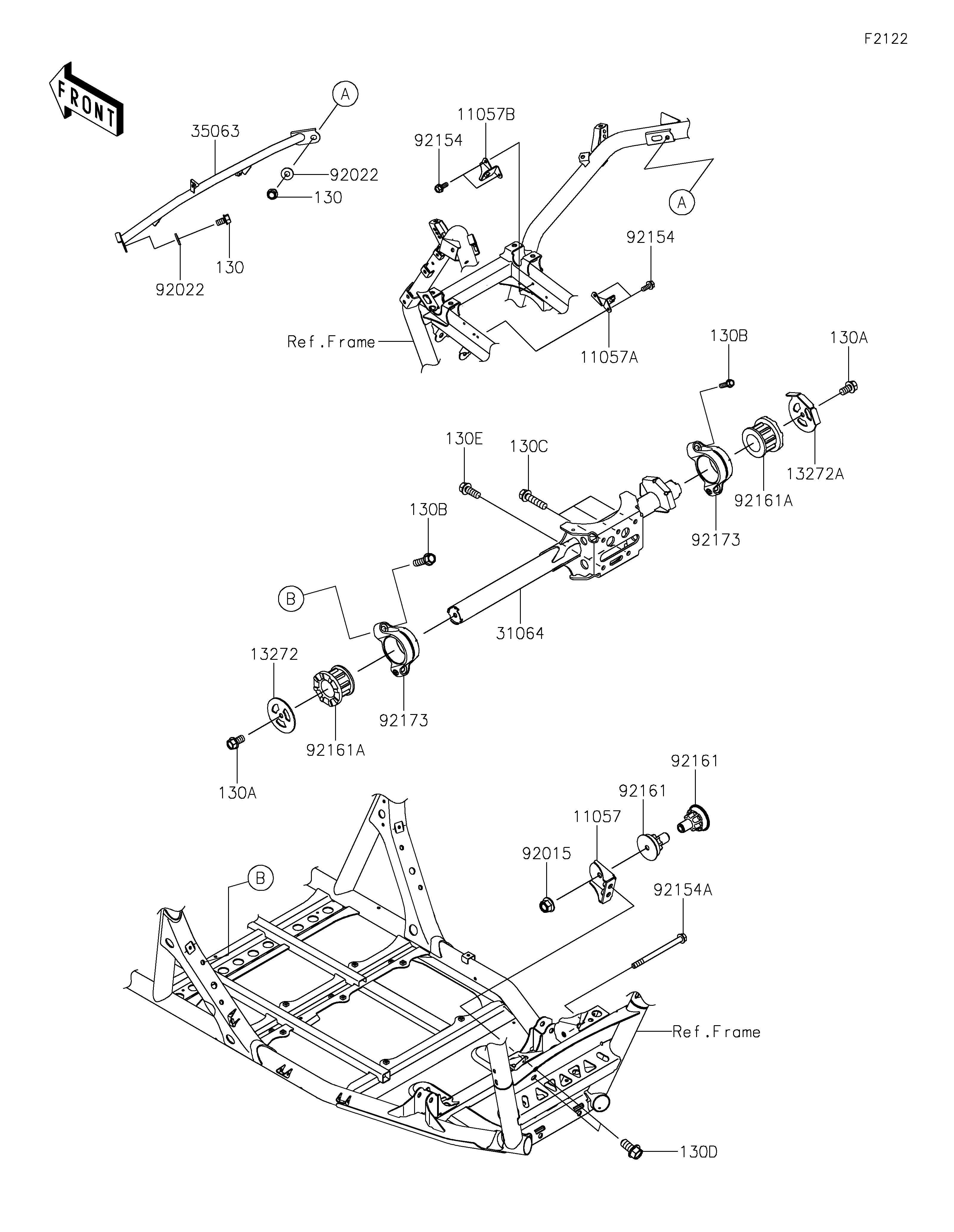

Parts Diagrams |
11057
11057A
11057B
13272
13272A
31064
35063
92015
92022
92022
92154
92154
92154A
92161
92161
92161A
92161A
92173
92173
130
130
130A
130A
130B
130B
130C
130D
130E
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,RR | 11057 | 11057-2103 | 1 | ||
| BRACKET | 11057A | 11057-2598 | 1 | ||
| BRACKET | 11057B | 11057-2599 | 1 | ||
| PLATE,LH | 13272 | 13272-2707 | 1 | ||
| PLATE,RH | 13272A | 13272-2861 | 1 | ||
| PIPE-COMP,FR | 31064 | 31064-0715 | 1 | ||
| STAY,UPP | 35063 | 35063-1466 | 1 | ||
| NUT,LOCK,FLANGED,12MM | 92015 | 92015-1433 | 1 | ||
| WASHER,8.2X19X2 | 92022 | 92022-1533 | 2 | ||
| BOLT,6X15.6 | 92154 | 92154-1250 | 4 | ||
| BOLT,FLANGED,12X160 | 92154A | 92154-3916 | 1 | ||
| DAMPER | 92161 | 92161-2171 | 2 | ||
| DAMPER | 92161A | 92161-2205 | 2 | ||
| CLAMP | 92173 | 92173-1982 | 2 | ||
| BOLT-FLANGED,8X14 | 130 | 130BA0814 | 2 | ||
| BOLT-FLANGED,10X18 | 130A | 130CA1018 | 2 | ||
| BOLT-FLANGED,10X35 | 130B | 130CA1035 | 4 | ||
| BOLT-FLANGED,10X40 | 130C | 130CA1040 | 3 | ||
| BOLT-FLANGED,12X25 | 130D | 130CA1225 | 2 | ||
| BOLT-FLANGED,10X25 | 130E | 130CB1025 | 2 |
