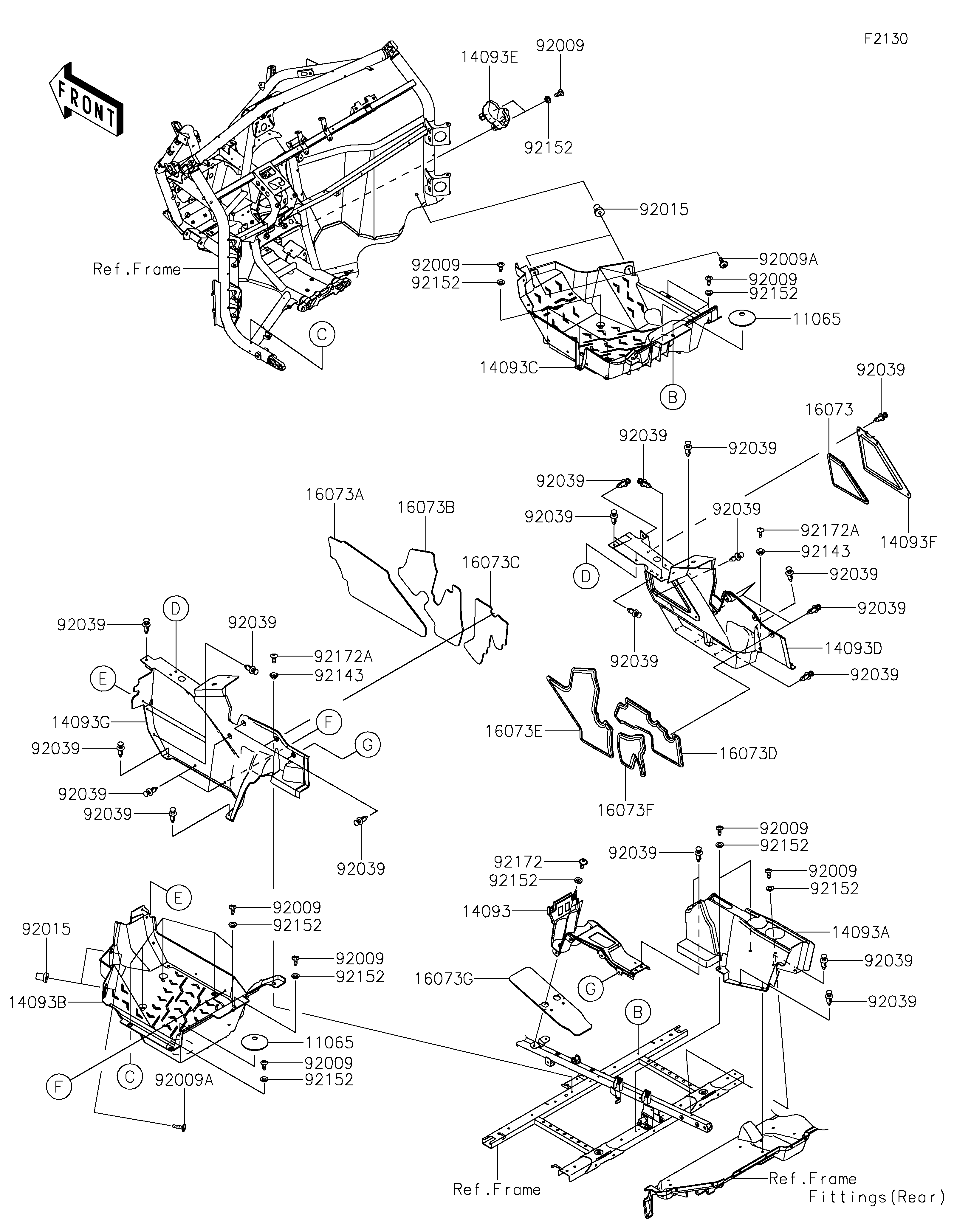

2021 TERYX KRX® 1000 - Frame Fittings(Front)
11065
11065
14093
14093A
14093B
14093C
14093D
14093E
14093F
14093G
16073
16073A
16073B
16073C
16073D
16073E
16073F
16073G
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92143
92143
92152
92152
92152
92152
92152
92152
92152
92152
92152
92172
92172A
92172A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,BLACK | 11065 | 11065-1405-6Z | 2 | ||
| COVER,CENTER CONSOLE,FR | 14093 | 14093-0833 | 1 | ||
| COVER,CENTER CONSOLE,RR | 14093A | 14093-0834 | 1 | ||
| COVER,FLOOR,LH | 14093B | 14093-0835 | 1 | ||
| COVER,FLOOR,RH | 14093C | 14093-0836 | 1 | ||
| COVER,FLOOR,CNT,RH | 14093D | 14093-0838 | 1 | ||
| COVER,FR GEAR,SIDE | 14093E | 14093-0839 | 1 | ||
| COVER,MAINTENANCE | 14093F | 14093-0850 | 1 | ||
| COVER,FLOOR,CNT,LH | 14093G | 14093-1161 | 1 | ||
| INSULATOR | 16073 | 16073-0891 | 1 | ||
| INSULATOR | 16073A | 16073-0893 | 1 | ||
| INSULATOR | 16073B | 16073-0894 | 1 | ||
| INSULATOR | 16073C | 16073-0895 | 1 | ||
| INSULATOR | 16073D | 16073-0897 | 1 | ||
| INSULATOR | 16073E | 16073-0898 | 1 | ||
| INSULATOR | 16073F | 16073-0899 | 1 | ||
| INSULATOR | 16073G | 16073-0902 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 19 | ||
| SCREW,6X22,BLACK | 92009A | 92009-1256 | 4 | ||
| NUT,RUBBER,6MM | 92015 | 92015-1692 | 4 | ||
| RIVET | 92039 | 92039-0776 | 39 | ||
| COLLAR | 92143 | 92143-1057 | 2 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 21 | ||
| SCREW,6X16 | 92172 | 92172-0236 | 2 | ||
| SCREW,TAPPING,6X16 | 92172A | 92172-0739 | 2 |
