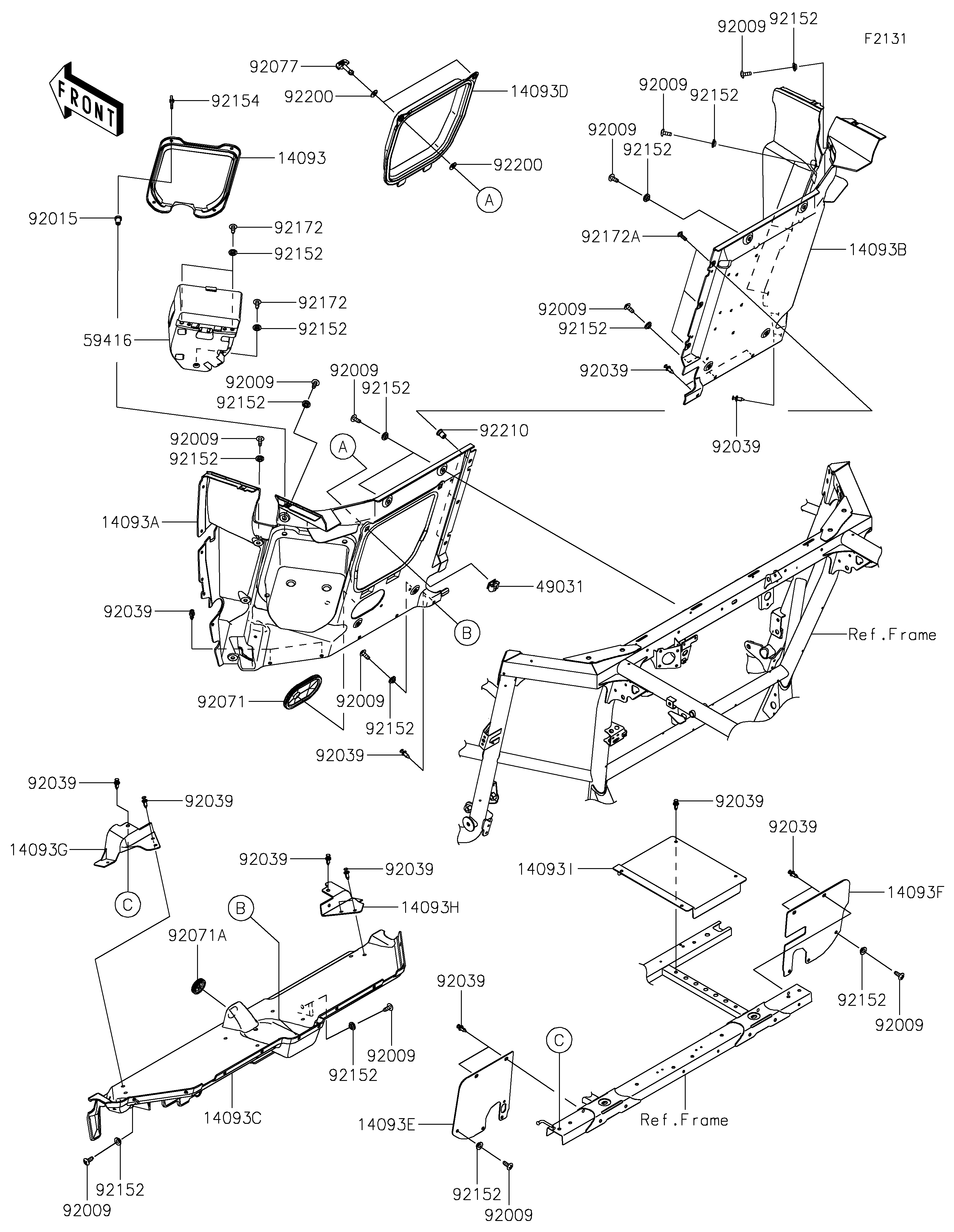

2021 TERYX KRX® 1000 - Frame Fittings(Rear)

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
14093B
14093C
14093D
14093E
14093F
14093G
14093H
14093I
49031
59416
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92015
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92071
92071A
92077
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92154
92172
92172
92172A
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,ELECTRIC-CASE 14093 14093-0821 1
COVER,SEAT-BACK-PANEL,LH 14093A 14093-0840 1
COVER,SEAT-BACK-PANEL,RH 14093B 14093-0841 1
COVER,SEAT-BACK-PANEL,LWR 14093C 14093-0842 1
COVER,A/C-BOX 14093D 14093-0843 1
COVER,BATTERY 14093E 14093-0853 1
COVER,FUEL-TANK 14093F 14093-0854 1
COVER,SEAT-BACK,LH 14093G 14093-0992 1
COVER,SEAT-BACK,RH 14093H 14093-0993 1
COVER,SEAT,LWR 14093I 14093-1006 1
LATCH,A/C-BOX 49031 49031-0022 2
CASE-ELECTRIC 59416 59416-0028 1
SCREW,TAPPING,6X16 92009 92009-1166 24
NUT,RUBBER,6MM 92015 92015-1692 4
RIVET 92039 92039-0776 24
GROMMET 92071 92071-0789 1
GROMMET 92071A 92071-0791 1
KNOB 92077 92077-0030 2
COLLAR,6.3X9.5X4.1 92152 92152-1571 27
BOLT,WING,6X25 92154 92154-4116 4
SCREW,6X16 92172 92172-0284 3
SCREW,5MM 92172A 92172-0292 3
WASHER 92200 92200-0503 4
NUT,WELL,5MM 92210 92210-0370 3
