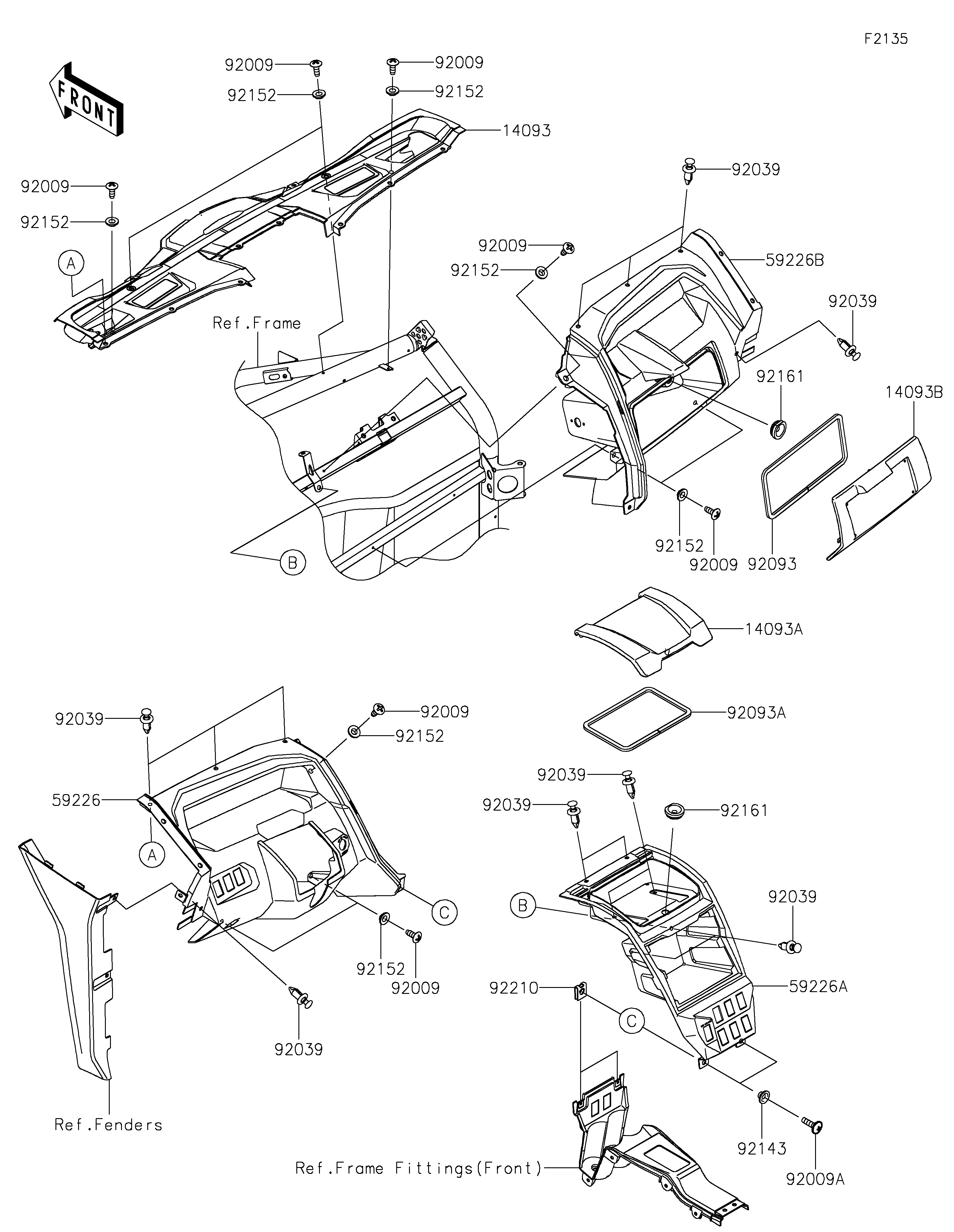

Parts Diagrams |
14093
14093A
14093B
59226
59226A
59226B
92009
92009
92009
92009
92009
92009
92009
92009A
92039
92039
92039
92039
92039
92039
92039
92093
92093A
92143
92152
92152
92152
92152
92152
92152
92152
92161
92161
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER | 14093 | 14093-0829 | 1 | ||
| COVER,STORAGE,UPP | 14093A | 14093-0831 | 1 | ||
| COVER,STORAGE,LWR | 14093B | 14093-0832 | 1 | ||
| PANEL-CONTROL,LH | 59226 | 59226-0745 | 1 | ||
| PANEL-CONTROL,CNT | 59226A | 59226-0746 | 1 | ||
| PANEL-CONTROL,RH | 59226B | 59226-0747 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 10 | ||
| SCREW,6X22,BLACK | 92009A | 92009-1256 | 2 | ||
| RIVET | 92039 | 92039-0776 | 14 | ||
| SEAL,10X6X825 | 92093 | 92093-0729 | 1 | ||
| SEAL,10X6X725 | 92093A | 92093-0730 | 1 | ||
| COLLAR | 92143 | 92143-1057 | 2 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 10 | ||
| DAMPER,7.8X30X11 | 92161 | 92161-1953 | 2 | ||
| NUT | 92210 | 92210-1125 | 2 |
| COVER | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,STORAGE,UPP | |
| REF # | 14093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,STORAGE,LWR | |
| REF # | 14093B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-CONTROL,LH | |
| REF # | 59226 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-CONTROL,CNT | |
| REF # | 59226A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-CONTROL,RH | |
| REF # | 59226B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X22,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| SEAL,10X6X825 | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,10X6X725 | |
| REF # | 92093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X9.5X4.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| DAMPER,7.8X30X11 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
