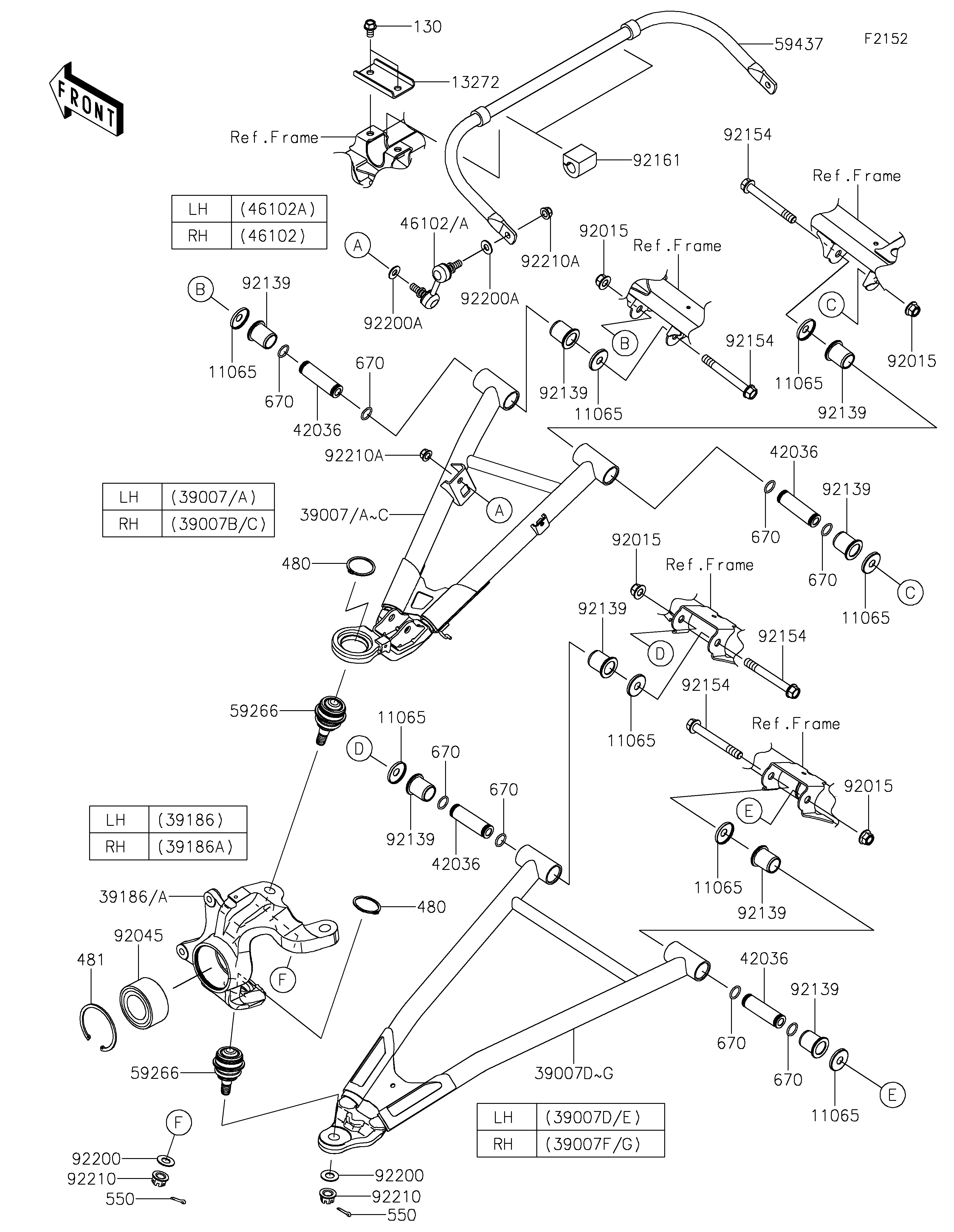

2021 TERYX KRX® 1000 - Front Suspension

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065
11065
11065
11065
11065
11065
13272
39007
39007A
39007B
39007C
39007D
39007E
39007F
39007G
39186
39186A
42036
42036
42036
42036
46102
46102A
59266
59266
59437
92015
92015
92015
92015
92045
92139
92139
92139
92139
92139
92139
92139
92139
92154
92154
92154
92154
92161
92200
92200
92200A
92200A
92210
92210
92210A
92210A
130
480
480
481
550
550
670
670
670
670
670
670
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0253 16
PLATE 13272 13272-2677 2
ARM-SUSP,FR,UPP,LH,V.BLUE 39007 39007-0424-57G 1
ARM-SUSP,FR,UPP,LH,P.L.GREEN 39007A 39007-0424-66C 1
ARM-SUSP,FR,UPP,RH,V.BLUE 39007B 39007-0425-57G 1
ARM-SUSP,FR,UPP,RH,P.L.GREEN 39007C 39007-0425-66C 1
ARM-SUSP,FR,LWR,LH,V.BLUE 39007D 39007-0463-57G 1
ARM-SUSP,FR,LWR,LH,P.L.GREEN 39007E 39007-0463-66C 1
ARM-SUSP,FR,LWR,RH,V.BLUE 39007F 39007-0464-57G 1
ARM-SUSP,FR,LWR,RH,P.L.GREEN 39007G 39007-0464-66C 1
KNUCKLE,FR,LH 39186 39186-0333 1
KNUCKLE,FR,RH 39186A 39186-0334 1
SLEEVE,12.1X22X76 42036 42036-0836 8
ROD,STABILIZER,RH 46102 46102-0100 1
ROD,STABILIZER,LH 46102A 46102-0101 1
JOINT-BALL 59266 59266-0738 4
STABILIZER,FR 59437 59437-0025 1
NUT,LOCK,FLANGED,12MM 92015 92015-1433 8
BEARING-BALL,40X74X36 92045 92045-0919 2
BUSHING 92139 92139-0937 16
BOLT,FLANGED,12X100 92154 92154-1318 8
DAMPER 92161 92161-2188 2
WASHER,14.2X28X1.5 92200 92200-0217 4
WASHER,10.3X23X1.6 92200A 92200-0724 4
NUT,CASTLE,14MM 92210 92210-0104 4
NUT,LOCK,FLANGED,10MM 92210A 92210-1080 4
BOLT-FLANGED,10X16 130 130CA1016 4
CIRCLIP-TYPE-C,42MM 480 480J4200 4
CIRCLIP-TYPE-C 481 481J7500 2
PIN-COTTER,3.0X25 550 550AA3025 4
O RING,18MM 670 670B2018 16
