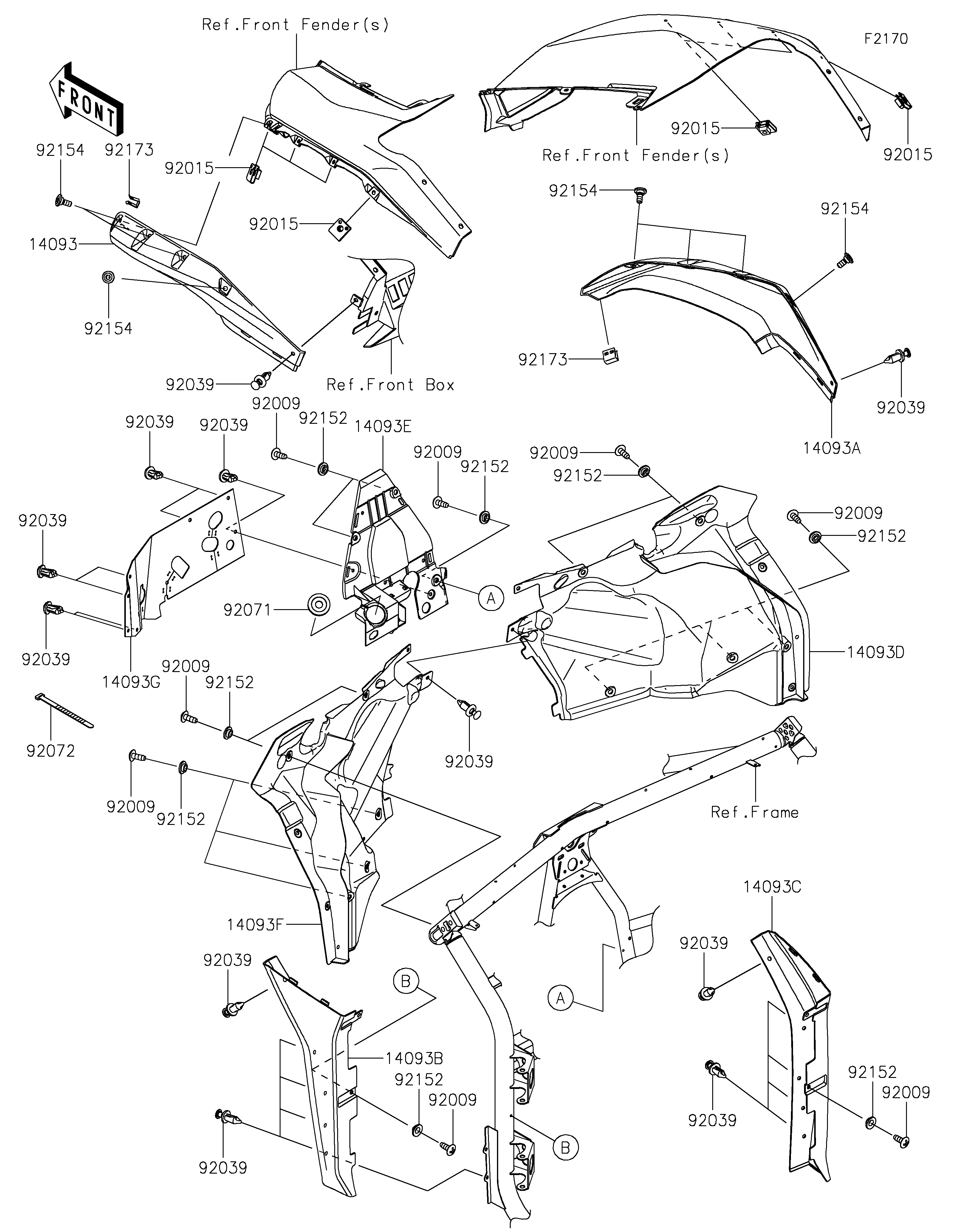

2021 TERYX KRX® 1000 - Fenders

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
14093B
14093C
14093D
14093E
14093F
14093G
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92071
92072
92152
92152
92152
92152
92152
92152
92152
92152
92154
92154
92154
92154
92173
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FLAP,UPP,LH 14093 14093-0806 1
COVER,FLAP,UPP,RH 14093A 14093-0807 1
COVER,FLAP,LWR,LH 14093B 14093-0808 1
COVER,FLAP,LWR,RH 14093C 14093-0809 1
COVER,FLOOR UPP,RH 14093D 14093-0822 1
COVER,FLOOR UPP,CNT 14093E 14093-0823 1
COVER,FLOOR UPP,LH 14093F 14093-0824 1
COVER,RUBBER 14093G 14093-0844 1
SCREW,TAPPING,6X16 92009 92009-1166 15
NUT,CLAMP,6MM 92015 92015-1678 8
RIVET 92039 92039-0776 20
GROMMET 92071 92071-0790 1
BAND,L=123 92072 92072-030 5
COLLAR,6.3X9.5X4.1 92152 92152-1571 15
BOLT 92154 92154-2474 8
CLAMP 92173 92173-2249 2
